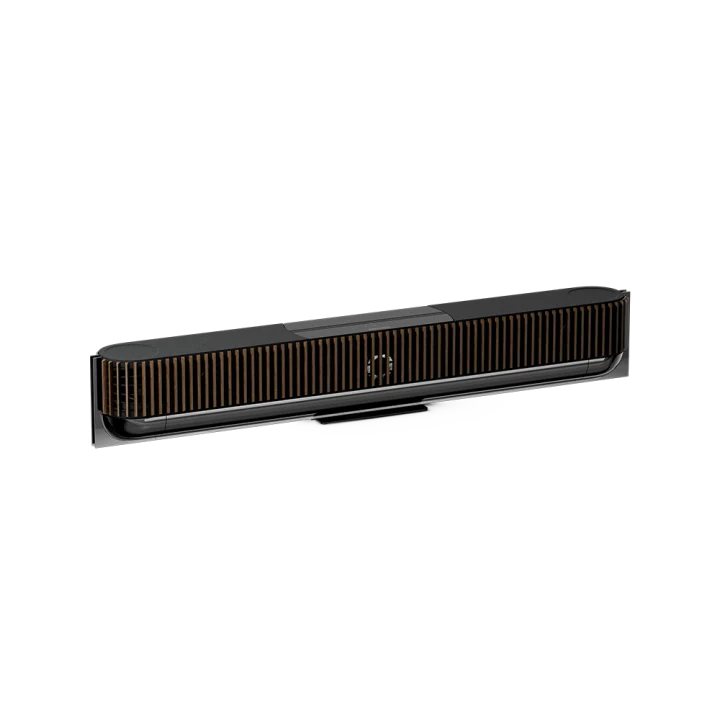

Bang Olufsen Beosound Theatre Soundbar

BEOSOUND THEATRE SOUNDBAR

Bang Olufsen Beosound Theatre Soundbar

BEOSOUND STAGE SOUNDBAR

A new vision for sound

Powerful, yet elegant. Sleek, yet immersive. Beosound Theatre completely flips the script.

FEATURES

EVOLVES OVER TIME

Beosound Theatre is made to move with the times, with advanced software that allows for future features. Time for a bigger screen? Simply slot a new one in. This modular approach means Beosound Theatre will continue to deliver a spine-tingling experience for years to come..

Bang Olufsen Beosound Theatre Soundbar

TIMELESS QUALITY

Made with materials as beautiful as they are durable, Beosound Theatre proves that good things do last. There's the timeless touch of aluminium, milled and shaped in our own Factory 5. There’s the swappable solid oak or fabric covers. This is style and longevity in unity..

Bang Olufsen Beosound Theatre Soundbar

LIGHTS UP WHEN YOU'RE AROUND

Step close to Beosound Theatre and the minimal interface springs into life. Use the glass touch panel to explore your music, choose your presets or pair with a Bluetooth device. All this with just a touch.

Bang Olufsen Beosound Theatre Soundbar

RUN THE SHOW

Beosound Theatre is made to fit seamlessly with your TV and your room. Colours, materials and position – they all adapt to your vision. Want to see it in your space? Our AR app lets you perfect your setup at home without ever leaving the couch.

Bang Olufsen Beosound Theatre Soundbar

INFORMATION

BRAND

Bang Olufsen

PRODUCT TYPE

Soundbar

RECOMMENDED ROOM SIZE

- 15 - 60 m²
- 100 - 600 ft²

MAXIMUM SOUND PRESSURE LEVEL @1M

112 dB SPL

Bang Olufsen Beosound Theatre Soundbar
Bang Olufsen Beosound Theatre Soundbar

DIMENSIONS

- Height : 19.7/18.9 cm
- Width : 15.7 cm
- Depth : 122.2cm

SPEAKER CONFIGURATION

-2 x 1" tweeter -12 speaker drivers -4 x 2.5" full-range -2 x 3"" mid-range -2 x 6.5" woofer custom made -1 x 5.25" mid-range + 1 x 1"" tweeter for custom made coaxial centre speaker

 AMPLIFIER

-12 power amplifiers -2 x 100 watts amplifiers for bass outputs -10 x 60 watts amplifiers for center channel, left/right/upfiring/side firing outputs

DESIGNER

Noto GmbH

WEIGHT

18 kg

ADVANCED SOUND FEATURES

-T
hermal protection -Adaptive Bass Linearization -Advanced Bass management system -Integrated 7.1.4 Dolby Atmos decoding and custom-tuned post-processing with proprietary True Image up- / downmixing algorithm

Bang Olufsen Beosound Theatre Soundbar

ROOMSENSE

Automated speaker setup with external microphone:

- Speaker role
- Speaker level and distance
- Room resonance compensation from 30 – 200Hz
- Speaker position compensation from 30 – 10.000Hz

BASS CAPABILITY

94 dB SPL

FREQUENCY

28 Hz - 23,000 Hz

POWER CONSUMPTION

Typical 80 watts

POWER CABLE

50/60Hz Power cable

SOUND PRESSURE LEVEL @1M

Maximum 100 dB SPL

INTEGRATED MUSIC SERVICES

Tunein Internet Radio

Bang Olufsen Beosound Theatre Soundbar

TECHNICAL DRAWING

11 Speaker Drivers

INCLUDED IN THE BOX

-H
DMI cable & Mains cable -Beosound Stage including fabric front cover -2 pcs of collar/holders for wall mount solution -2 pcs of felt for adjusting flush mount on wall -Drilling template for wall mounting -2 pcs of cable holders/bridges -Tool for removing fabric cover

BASS CAPABILITY

86 dB SPL

FRAME

Aluminium & Smoked Oak

PLACEMENT

Wall or table/shelf

USE

Entertainment

DRIVERS

- 4 4" woofer drivers
- 4 1.5" mid-range drivers
- 3 3/4" tweeter drivers

Bang Olufsen Beosound Theatre Soundbar

SPEAKERS TYPE

-1
1 power amplifiers -4 x 50 watts amplifiers for the bass drivers -4 x 50 watts for the full-range drivers -3 x 50 watts for the tweeters

CUSTOMIZABLE SOUND EQ

Presets available and fully customisable through the Bang & Olufsen App

AVAILABLE COLORS

Four

MATERIAL

-F
ront Covers : Black fabric or grey/warm taupe fabric by kvadrat
-Frame : Natural aluminium, bronze tone aluminium, smoked oak wood

DESIGN

Exclusive and functional materials combine Scandinavian simplicity with state of the art audio technology. An endless frame of long line standing aluminium or smoked oak surrounds the textile of the speaker front.

REMOTE CONTROLS

-B
ang & Olufsen App -Beoremote One BT with LG OLED C9 TVs -TV remote (volume-mute-on-standby)control commands via HDMI ARC

ALL COLORS

Bang Olufsen Beosound Theatre Soundbar
Natural
Bang Olufsen Beosound Theatre Soundbar
Gold Tone
Bang Olufsen Beosound Theatre Soundbar
Bronze Tone
Bang Olufsen Beosound Theatre Soundbar
Black Anthracite

DETAIL

DOLBY ATMOS SOUND

Beosound Stage offers a 3 channel sound system with a superior centre channel for optimized speech reproduction. The viewing experience is enhanced even further with Dolby Atmos, a function where sound moves around you in a three dimensional space. Beosound Stage includes eleven speaker drivers each driven by its own amplifier and the result is a three-channel, fully active, DSP based loudspeaker solution delivering a superbly deep and rich performance.

FIND YOUR OWN MOOD

Through the Bang & Olufsen App, once you register the product, you can choose among different "listening modes" according to what you are listening or watching on tv. Hear every voice, action or music clearly.

EASY TO SETUP

The basic TV sound setup of Beosound Stage only requires you to connect the included HDMI cable between Beosound Stage and the HDMI ARC connection of your TV. Then, select correct speaker/sound output in your TV menu.
