BAY VL ROOM HEATING STOVES

Charnwood Bay Vl  Room Heating Stoves

BAY VL ROOM HEATING STOVES

The Bay VL is a contemporary insert stove featuring a large landscape window framed with a clean, sharp edged surround.

The Charnwood Bay VL meets the Clean Air Act requirements for burning wood in smoke control areas. The stove boasts a variable output of between 2 and 7kW and is available in a choice of eight colours.

INFORMATION

RATED OUTPUT

5kW to room (range 2-7kW)

BRAND

Charnwood

PRODUCT TYPE

Room Heating Stoves

COLLECTION

Bay VL

MATERIALS

- Plate steel
- Cast iron
- Ceramic glass
- VLAZE vitreous enamel surround

THE BAY FAMILY

A freestanding version, the Bay BX, is also available. This can either be placed directly on the hearth or on a choice of optional stands.

Charnwood Bay Vl  Room Heating Stoves

FEATURES

- SIA Eco Design Ready
- Cleanburn Airwash Technology
- DEFRA exempt for burning wood in smoke control areas
- Drop down throat plate enabling the chimney to be swept through the stove

PRODUCTION

Made In England

WEIGHT

94.3KG

COLORS

Eight Colors

MAX LOG LENGTH

463mm (18”)

MIN DISTANCE TO COMBUSTIBLES

- Side : 190 mm
- Top : 350 mm

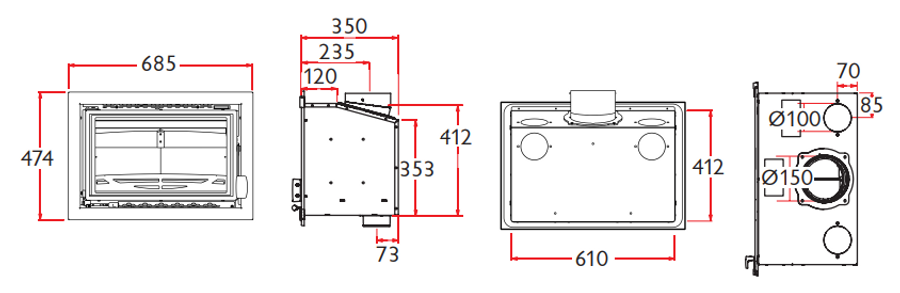

TECHNICAL DIAGRAM

Charnwood Bay Vl  Room Heating Stoves

DETAILS

The Bay VL is a more contemporary addition to the Bay range. The firebox of the stove is the same as the original Bay 5 but the VL features a large landscape window framed with a sharp edged surround for a more clean lined look. The Bay VL is available in 8 Charnwood colours. This model is SIA Ecodesign ready (blu)

FLUE OUTLET

Top 150mm (6”) dia

USE

Indoor

COLORS

Charnwood Bay Vl  Room Heating Stoves
Black
Charnwood Bay Vl  Room Heating Stoves
Almond

COLORS

- Black
- Almond
- Blue
- Bronze
- Brown
- Green
- Gunmetal
- Pewter

Charnwood Bay Vl  Room Heating Stoves
Blue
Charnwood Bay Vl  Room Heating Stoves
Bronze
Charnwood Bay Vl  Room Heating Stoves
Brown
Charnwood Bay Vl  Room Heating Stoves
Green
Charnwood Bay Vl  Room Heating Stoves
Gunmetal
Charnwood Bay Vl  Room Heating Stoves
Pewter
