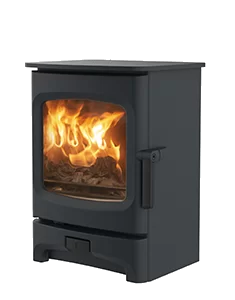

Charnwood Aire 3 Room Heating Stove

AIRE 3 ROOM HEATING STOVE

Charnwood Aire 3 Room Heating Stove

AIRE 3 ROOM HEATING STOVE

This British made stove is an exciting addition to our Aire collection.

The Charnwood Aire 3 has been designed for smaller spaces. Not just for conventional houses – but for cabins, for yurts and tiny homes.

INFORMATION

BRAND

Charnwood

PRODUCT TYPE

Room Heating Stoves

MIN DISTANCE TO COMBUSTIBLES

- Side : 310mm
- Rear : 250mm

Charnwood Aire 3 Room Heating Stove

MATERIALS

- Plate Steel
- Cast Iron
- Ceramic Glass
- Fire Bricks

NET EFFICIENCY

86%

FLUE OUTLET

Top or Rear 125mm (5”) dia

INSTALLATION

Meets the UK building requirements for installation with a 12mm non-combustible hearth

Charnwood Aire 3 Room Heating Stove

DETAILS

 The Charnwood Aire 3 delivers a comfortable 1.5-5kW of heat to the room with a crystal clear burn and remarkable controllability.

RATED OUTPUT

3.7kW to room (range 1.5-5kW)

USE

Indoor

CUSTOMISATION OPTIONS

- Flue Boiler
- Low or Store Stand
- Choice of Eight Colors
- Vertical Rear Flue Adaptor

PRODUCTION

Made In England

RATED OUTPUT

7kW to room (range 5-11kW)

THE LATEST BURNING TECHNOLOGY FOR ENHANCED EFFICIENCY

With an efficiency of 86% it has all the features of both the Aire 5 and Aire. 7:large ceramic glass window, single air control for easy use, cool-to -touch handle for safe reloading but perhaps best of all it meets all the criteria set for Ecodesign 2022 with a Clear Skies rating of 5 stars. This is quite revolutionary for a stove with such a small output

Charnwood Aire 3 Room Heating Stove

FEATURES

- SIA Eco Design Ready
- Cleanburn airwash technology
- Exceeds new Eco Design standards
- Quattroflow air management system
- Sliding firebed for clean and easy ash removal
- Defra exempt for burning wood in smoke control areas
- Drop down throat plate enabling the chimney to be  through the stove

MAX LOG LENGTH

250mm (10”)

WEIGHT

- Low : 62 kg
- Store Stand : 71 kg

TECHNICAL DIAGRAMS

Charnwood Aire 3 Room Heating Stove
Charnwood Aire 3 Room Heating Stove

COLORS

COLORS

Charnwood Aire 3 Room Heating Stove
Almond
Charnwood Aire 3 Room Heating Stove
Blue
Charnwood Aire 3 Room Heating Stove
Bronze
Charnwood Aire 3 Room Heating Stove
Brown
Charnwood Aire 3 Room Heating Stove
Green
Charnwood Aire 3 Room Heating Stove
Gunmetal
Charnwood Aire 3 Room Heating Stove
Black
Charnwood Aire 3 Room Heating Stove
Pewter
