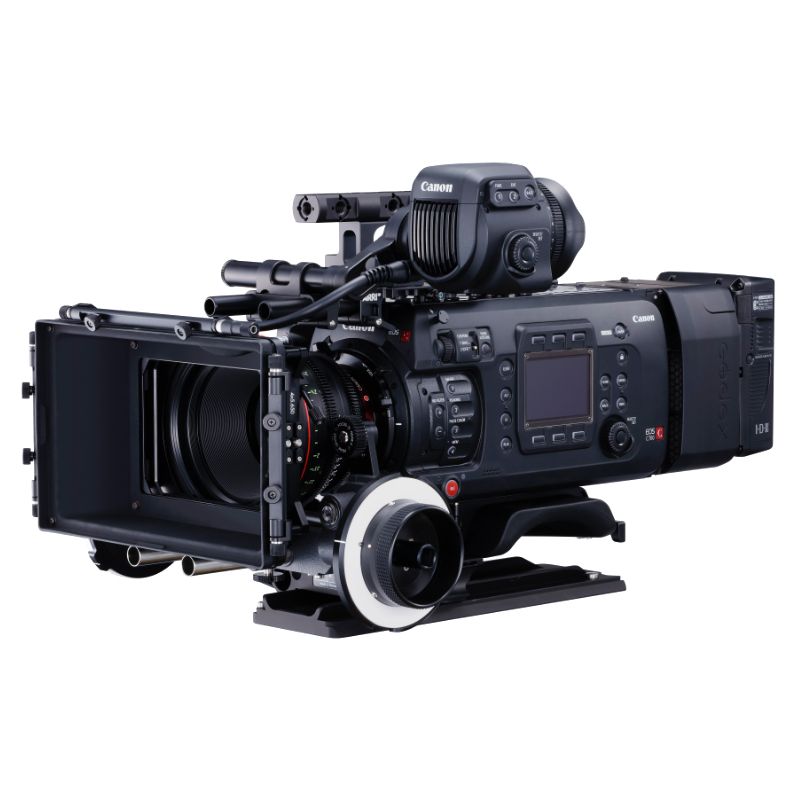

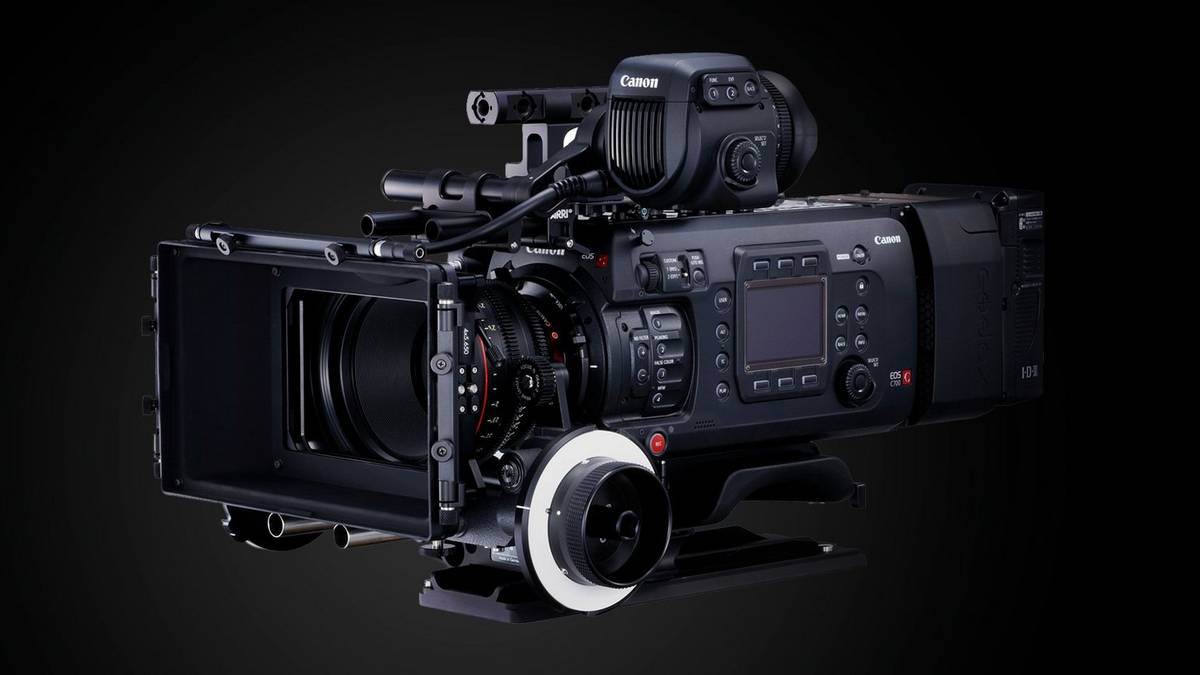

Canon Eos C700 Ff Camera
CANON EOS C700 FF CAMERA
CANON EOS C700 FF CAMERA
Canon's next generation Full Frame CMOS sensor records 5.9K with over sampling for exceptionally high quality 4K footage.
FEATURES
PRIMARY PRODUCTION CAMERA WITH VERSATILE 5.9K FULL FRAME CMOS SENSOR
Canon’s newly developed Full Frame CMOS sensor offers low noise, wide colour gamut, and a wide dynamic range of 15-stops for a natural look and greater freedom when grading.
MULTIPLE RECORDING FORMATS INCLUDING 5.9K RAW
Record 5.9K RAW files or 4K ProRes file with an optional CODEX CDX-36150 recorder, or record 4K internally to ProRes or XF-AVC formats for a faster workflow.
FULL FRAME CMOS SENSOR
Canon’s newly developed 38.1 x 20.1mm Full Frame sensor creates a new visual look, shallower depth of field and wide field of view with 15-stops dynamic range and Canon’s outstanding image quality. Versatility when shooting is assured, thanks to sensor modes that support Full Frame, Super 35mm and Super 16mm.
WIDE RANGE OF LENS OPTIONS
Use Canon’s Full Frame EF mount lenses to benefit from Dual Pixel CMOS autofocus. PL mount and B4 options (requiring a EF/PL to B4 adapter) additionally provide a huge range of lens options with Canon’s exceptional image quality.
ACCURATE AND RELIABLE AUTOFOCUS
Canon’s Dual Pixel CMOS AF system allows users to reliably and easily maintain sharp focus on subjects as they move throughout the frame, and includes a function to aid manual focusing.
OUTSTANDING IMAGE QUALITY
The EOS C700 FF supports various Log curves, colour spaces and industry standards, maximising the quality of image and natural look.
OPERATIONAL FEATURES
Built-in ND filters, IP streaming capability and optional accessories for camera control allow for flexible camera operation.
REFUGIUM
Shot on the Full Frame Cinema EOS C700 FF, Refugium highlighted the versatility and capability of this camera to produce exceptional image quality in difficult lighting, with a shallow depth of field and excellent bokeh, while supporting both anamorphic and spherical lenses.
REFUGIUM – BEHIND THE SCENES
Emmy award-winning UK production house Ember Films share their experience shooting with the Cinema EOS C700 FF
INFORMATION
WEIGHT (ACCESSORIES)
-Micrcophone holder unit : Approx. 80 g (2.8 oz.)/Clamp base: Approx. 120 g (4.2 oz.)/
-UC-V75 : Approx. 50 g (1.8 oz.)/ UC-V1000: Approx. 450 g (15.9 oz.)/UN-5 unit cable Approx. 80 g (2.8 oz.)
-Handle unit : Approx. 260 g (9.2 oz.)/Extension unit attachment bracket Approx. 9 g (0.32oz.)/Reinforcing plate. Approx. 56 g (2.0 oz.)/EVF-V70: Approx. 830 g (1.8 lb)/SG-1: Approx. 565 g (1.2 lb)/SU-15: Approx.930 g (2.1 lb)/ OU-700: Approx. 375 g (13.2 oz.)/
BRAND
Canon
PRODUCT TYPE
Camera
SPECIFICATIONS
- XF-AVC : Up to 4K, 810Mbps internal recording
- ProRes : Easy integration into established workflows
- CFast 2.0™ : Stable media for high data rate recording
- 5.9K/60P RAW : 10 or 12 bit RAW recording to CODEX drive
- High Dynamic Range : PQ and HLG monitoring supported
- Dual Pixel CMOS AF : Accurate, reliable and smooth autofocus
- 5-Stops Dynamic Range : Log 2 enables maximum dynamic range
IMAGE PROCESSOR
Triple DIGIC DV 5
BLACK BALANCE
Black balance adjustment : Yes
EVF
- Built- In EVF : No
- Optional EVF Accessory : Yes. OLED Electronic ViewFinder, EVF-V70
DISPLAY PANEL
Control Display : 3.0-inch (7.66cm on the diagonal) colour liquid crystal, approx. 1.036 million dots
SHUTTER SPEED
- Control Modes : Off; Speed; Angle; Clear Scan (CS); Slow Shutter (SLS)
- Shutter Angle : 11.25º to 360º depending on frame rate
- Slow Shutter (SLS) : 1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
- Clear Scan : 24.00 Hz* to 250.40 Hz The frequency will differ depending on the frame rate setting.
- Shutter speed : 1/1 to 1/2000 depending on frame rate and Shutter Control Mode, 39 setting options
WI-FI & GPS SPECIFICATIONS
GPS Information (Optional Accessory) : Latitude/Longtitude/Elevation, Coordinated Universal Time (UTC)
MISC.
- Tally lamp : Yes
- Custom Dial : Yes
THIRD PARTY ACCESSORIES
- Codex CDX-36150
- IDX V-Mount battery
TIME CODE
-Start value setting : “00:00:00:00”, Set/Reset selectable
-Count up system : Regen, RecRun, FreeRun, External, Hold (Drop frame available for some frame rates)
AUDIO (RECORDING)
-Internal & Capture Drive recording : linear PCM 48 KHz, 24-bit, 4-ch
-RAW (SDI OUT) : linear PCM 48 KHz, 16-bit, 2-ch
-Digital input available following two-channel (XLR), analog input, AES3 standards (48kHz/24-bit/2-ch).
WHITE BALANCE
-Auto : YES
-White Balance Matching : Yes, for previous models
-White Balance Shift : YES. -9 to +9 (Daylight and Tungsten only)
-Preset : Daylight (5400K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B
DIMENSIONS (MAIN BODY ONLY)
- EF model : Approx. 167 x 154 x 327 mm (6.6 x 6.1 x 1.1 in)
- PL model : Approx. 167 x 154 x 336 mm (6.6 x 6.1 x 1.1 in)
WEIGHT (BODY ONLY)
- EOS C700 FF EF : Approx. 3440 g (7.6 lb)
- EOS C700 FF PL : Approx. 3615 g (8.0 lb)
OPERATING TEMPERATURE RANGE
-Approx. 0 to 40°C, (85% relative humidity) -Approx. -5 to 45°C, (60% relative humidity)
XF-AVC RECORDING BIT RATE/ SAMPLING (50HZ MODE) TO CFAST 2.0™ CARD
- 4096x2160 YCC422 10 bit/3840x2160 YCC422 10 bit
- 2048x1080 YCC422 10 bit/1920x1080 YCC422 10 bit
- 2048x1080 RGB444 12 bit/1920x1080 RGB444 12 bit
- 2048x1080 RGB444 10 bit/1920x1080 RGB444 10 bit
- 50 Mbps Long GOP depending on Recording Mode
- Bit Rates: 810/440/410/310/225/210/170/160/ 90 Mbps Intra-frame
XF-AVC PROXY RECORDING BIT RATE/ SAMPLING (50HZ MODE) TO SD CARD
- Bit Rate: 24/35Mbps Long GOP
- 2048x1080 YCC420 8 bit/1920x1080 YCC420 8 bit
DOUBLE SLOT (SIMULTANEOUS) RECORDING
Yes
PHOTO STORAGE MEDIA
SD/SDHC memory card
PHOTO RECORDING SIZE
Approx. 930 KB at 2048x1080; Approx 880 KB at 1920x1080
SLOW/FAST MOTION
Yes. 1 -168 FPS, depending on shooting mode/resolution.168 FPS available
RECORDING
- Interval Record : No
- Frame Record : No
- Relay Recording : Yes
- Scan Reverse : Yes
- HD->SD conversion : No
- Pre Record (cache record) : No
WHAT'S IN THE BOX
- Screws
- Body Cap
- Handle Unit
- Clamp Base
- Base Feet x 4
- Allen Keys (1/4”, M4)
- Reinforcing Plate
- Microphone Holder
- Cinema EOS C700 FF Body
- Button Battery (CR2025)
RAW RECORDING OPTIONS
- 4096x2160 : 10bit
- Codex Drive: 59.94P/50.00P.
- 5952x3140/5952x2532 :10bit
- 4096x2160/2048x1080:12bit
- 29.97P/23.98P/25.00P/24.00P.
-5952x3140/5952x2532/4096x2160/2048x1080:12bit
- External Recorder via SDI:
-59.94P/29.97P/23.98P/50.00P/25.00P/24.00P
INTERNAL RECORDING
-CFast 2.0™ card x 2 for XF-AVC or Pro Res recording, SD card for XF-AVC Proxy recording -SD card also used for Photo Storage (1920 x 1080) and firmware update, including firmware updates for CODEX CDX-36150
RECORDING TIME (64GB CFAST 2.0™CARD)
-XF-AVC - Intra : 810 Mbps, 10 Mins 160 Mbps, 50 Mins.
- XF-AVC Long GOP 50Mbps : 165 Mins
- ProRes : 4K,ProRes422HQ 10Mins. 2K ProRes4444 25 Mins (25.00P)
RDING FRAME RATE
Depending on Recording Mode
FOCUS CONTROL
-PL Mount : Only Cine Servo lense
-EF Mount : Via lens, wireless control or wired remote (dependent on lens used)
IRIS CONTROL
- 1/2-stop, 1/3-stop or FINE control.
- Via body, grip, wireless control or wired remote.
- Possible to maintain constant F-number during zoom.
LENS MAGNIFICATION FACTOR (FOR EF MOUNT LENSES, INCLUDING CINEMA PRIMES)
Full Frame:
4096 x 2160/2048 x 1080: Nil
3840 x 2160/1920 x 1080: X 1.06
Super 35MM (Crop):
4096 x 2160/2048 x 1080: X 1.46
3840 x 2160/1920 x 1080: X1.53
Super 16mm (Crop):
4096 x 2160/2048 x 1080: X 2.92
3840 x 2160/1920 x 1080: X 3.07
CUSTOM PICTURE - STORED CONFIGURATIONS
Preset:
- HLG Support
- BT.2020 (Wide DR/BT.2020 Gamut/Neutral)
- BT.709 (Wide DR/ BT.709 Gamut/Neutral)
- Normal 2 (x4.0),Normal 3 (BT.709), Normal 4 (x5.0)
- Canon Log 3 : C.Gamut (Canon Log 3/ Cinema Gamut/Neutral)
- Canon Log 3 : BT.2020 (Canon Log 3/ BT.2020 Gamut/Neutral)
- Canon Log 3 : DCI-P3 (Canon Log 3/ DCI-P3 Gamut/Neutral)
- Canon Log 3 : BT.709 (Canon Log 3/ BT.709 Gamut/Neutral)
- Canon Log 2 : C.Gamut (Canon Log 2/ Cinema Gamut/Neutral)
- Canon Log 2 : BT.2020 (Canon Log 2/ BT.2020 Gamut/Neutral)
- Canon Log 2 : DCI-P3 (Canon Log 2/ DCI-P3 Gamut/Neutral)
- Canon Log 2 : BT.709 (Canon Log 2/ BT.709 Gamut/Neutral)
- Canon Log (Canon Log / BT.709 Gamut/Cinema EOS Original)
- Main Settings: Canon Log 3,Canon Log 2, Canon Log, Wide DR, Normal 1(Standard),
- Colour Space: BT.709 Gamut, BT.2020 Gamut, DCI-P3 Gamut,Cinema Gamut
- Colour Matrix: Neutral, Production Camera, Cinema EOS Original, Video, Off
CUSTOM PICTURE
-Colour correction : Area selection / area revision of two areas
-Knee : Adjusts over exposure characteristic, start, slope, saturation
-Low Key Saturation : -50 to +50 adjusts colour level in low brightness area
-Skin detail : Off, Low, Middle, High / Hue, Chroma, Area, Luminance. 32 steps
-Selective Noise Reduction : Off, Low, Middle, High / Hue, Chroma, Area, Luminance.
-Colour matrix : Phase, Gain and RGB adjustment, in tandem with Gamma selection
-White balance : AWB, USER setting 01(setting range: 2000K to 15000K/ -20CC to +20CC), daylight, tungsten, settings (A/B)
-Sharpness : Adjustment for Level, H Detail Freq., Coring, HV Detail Balance, Limit, Select, Knee Aperture and Level dependent sharpness
-Setup level : -50 to +50 On/Off
-Master Pedestal : -50 to +50
-Noise reduction : Off, On (1 to 12)
-Master Black : -50 to +50 for each channel, R,G,B
-Black Gamma : Adjustable Level, Range and Point
-Storage Medium : HDMI connector (type A) (output only)
-Clip 100% IRE : Limits output to 100% after setup adjustment
INPUTS/OUTPUTS
-Headphone output : 3.5 mm stereo mini jack (output only)
-Video monitor output : MON.1/MON.2: BNC jack , output only
-Synch : BNC jack (output only/also serves as GENLOCK connector)
-CTRL terminal : Canon’s proprietary specifications, LEMO 7-pin jack
-Genlock : BNC jack (input only/also serves as SYNC OUT connector)
-Ethernet terminal : Ethernet connector (RJ45) (supports 1000 BASE-T)
-Audio in : XLR 3-pin connector x2 , 3.5 mm stereo mini jack (input only)
-Video connector (For EVF) : Canon’s proprietary specifications (special 13-pin jack, output only)
-DC Output : DC 24V 2A jack Fisher 3-pin jack (output only), DC 12V 2A jack LEMO 2-pin jack (output only)
-DC input : XLR 4-pin jack
-Remote Control Terminal : REMOTE A connector 2.5 mm stereo mini-mini jack (input only) REMOTE B connector Round 8-pin jack (for RS-422)
-USB : No
-AV terminal : No
-Component out : No
-Lens terminal : 12-pin jack
-User Viewing LUT input : YES
-Time code : BNC jack (input/output)
-SDI output : BNC jack (4 lines, output only)
-HDMI : HDMI connector (type A) (output only)
-Wireless Control Terminal : Yes, for WFT-E6B.WFT-E8
PRORES RECORDING BIT RATE/ SAMPLING (50HZ MODE) MAX FRAME RATE CAPTURE DRIVE OR CFAST CARD
- CFast 2.0™ or CDX-36150:
-Full Frame Super 35mm (Crop) 4K/UHD ProRes 422HQ 10bit 60 FPS 2K/FHD ProRes 4444XQ 12bit 60 FPS Super 35mm (Crop) 2K/FHD ProRes 422HQ 10bit 72 FPS
- Full Frame Super 35mm (Crop) 4K/UHD ProRes 422HQ 10bit 30 FPS 2K/FHD ProRes 422HQ 10bit 60 FPS,ProRes 4444 12bit 60 FPS Super 16mm (Crop) 2K/FHD ProRes 422HQ/ ProRes 422 10bit 168 FPS CDX-36150
SYSTEM
-Zebra : Level 1; Level 2; Both, Output via HD-SDI or HDMI
-Colour Bars : SMPTE, EBU and ARIB color bars available. See the menu.
-Peaking : Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
-Markers : On/Off (Aspect ratio, Aspect marker, Safety Zone Area, Safety Zone, Grid, Horizontal, Centre)
-False Colour Display (Exposure Indication) : Yes. Via MON.1/2, VIDEO or HDMI Terminals (Not available from SDI Out 1 -4)
-Wave Form Monitor : Yes. Via MON.1/2, VIDEO or HDMI Terminals (Not available from SDI Out 1 -4), Line Display/Line and Spot/Line Select/Field Display/RGBDisplay/YPrPb
ACCESSORIES
-Supplied : Mic holder unit, Clamp base,Handle unit, Extension unit attachment fittings, Base legs x4, Allen key (1/4"), Allen key (M4), Reinforcing plate, measuring hook x2 Lithium battery(CR2025)
-Optionals : (including those not currently for sale) , Canon Remote Controller RC-V100,Canon Wireless Transmitter WFT-E6/WFT-E8,Canon GPS Receiver GP-E1, Canon Unit Cable UN-5/UN-10,Canon 8-pin Remote Cable RR-10 / RR-100, Canon B4, Mount Adapter MO-4E / MO-4P, Canon OLED Electronic View Finder EVF-V70, Canon Remote Operation Unit OU-700,Canon Shoulder Support Unit SU-15, Canon Shoulder Style Grip Unit SG-1, Canon Remote Operation Unit Cable UC-V75/UC-V1000
LENS
- Anamorphic Lens Support : Yes
- ND filter : Up to 10 stops via built in ND filter system
- Cooke/I Technology Support : Yes (PL Mount only)
- Image stabilization system : Depends on lens used
- Peripheral illumination correction : YES (dependent on lens used)
- Changeable Lens Mount : Yes, via Service Centre. EF to PL or PL to EF options.
- Lens Mount : Canon EF Mount with Cinema Lock/ PL Mount (Cooke /i Technology compatible) depending on version , B4 mount lens via adapter accessory (EF or PL)
IMAGE SENSOR
-Sensor : Full Frame CMOS sensor
-System : RGB primary colour filter (Bayer array)
-Interchangeable Sensor Block : Yes, Via service Centre
-Sensor Modes : Full Frame / Super 35 mm (Crop) / Super 16 mm (Crop)
-35.7 x 20.1 mm (41.0 mm on the diagonal) : When 3840 x 2160 or 1920 x 1080 is selected as the resolution
-Effective Sensor Screen Size : 38.1 x 20.1 mm (43.1 mm on the diagonal): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
-Dynamic Range : Canon Log 2 in Excess of 15 Stops (TBC) /Canon Log 3: 1600% (ISO 800 or higher)
With Canon Log/Wide DR: 800% (ISO 400 or higher)
-Effective Pixels (Full Frame Mode) : Approx. 18.69 megapixels (5952 x 3140): When 4096 x 2160 or 2048 x
1080 is selected as the resolution Approx. 17.52 megapixels (5580 x 3140): When 3840 x 2160 or 1920 x, 1080 is selected as the resolution
EXPOSURE
AF FRAME SIZES (EF VERSION ONLY)
-Large : size equivalent to approx. 20% (vertical) x 25% (horizontal) of the image display range
-Small : size equivalent to approx. 20% (vertical) x 8% (horizontal) of the image display range Selectable AF point over 80% (approx.) of sensor
AUTO FOCUS MODES (EF VERSION ONLY)
-One-Shot AF -Continuous AF -AF-Boosted MF -One-Shot AF, Continuous AF and AF-Boosted MF. All modes take effect when the AF/MF switch of the EF lens is at the AF setting.
FOCUS GUIDE
-PL Version : Compatible Canon Cine Servo lenses
-EF version : All compatible Canon EF lenses, Canon Cine Servo Lenses
ISO SENSITIVITY
-1-Stop Displa y: [100], 160(*), 200, 400, 800, 1600, 3200, 6400, 12800, 25600, [51200,102400] [---] Displayed when ISO speed expansion is ON. (*) Displayed when ISO speed expansion is OFF
-1/3 Stop Display : [100,125], 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000, 2500, 3200, 4000, 5000, 6400, 8000, 10000, 12800, 16000, 20000, 25600, [32000,40000,51200,64000, 80000,102400] [---] When ISO speed expansion is ON.
GAIN SETTING
-When ISO speed expansion is ON : between -2 dB and 54 dB
-When ISO speed expansion is OFF : Any value from -2 dB to 42 dB in 0.5 dB increments can be set.
-[-6dB,-3dB], -2dB(*), 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB, [45dB,48dB,51dB,54dB] [---] Displayed when ISO speed expansion is ON. (*) Displayed when ISO speed expansion is OFF.
EXPOSURE DETAILS
- Exposure Lock : No
- Auto Gain Control setting : Yes
- Exposure Compensation : Yes
- Auto Exposure mode : Autro Iris
- Face Detection AF : Face Priority or Face Only.
- Auto Focus System (EF Version Only) : Dual Pixel CMOS AF, Contrast AF
- Push Auto Iris : Yes EF model all compatible lenses, PL Version compatible Canon Cine Servo lenses only
- Exposure metering : Manual exposure determined by shutter setting, iris setting, ISO/gain setting and ND filter setting, Push Auto Iris, Auto Iris
