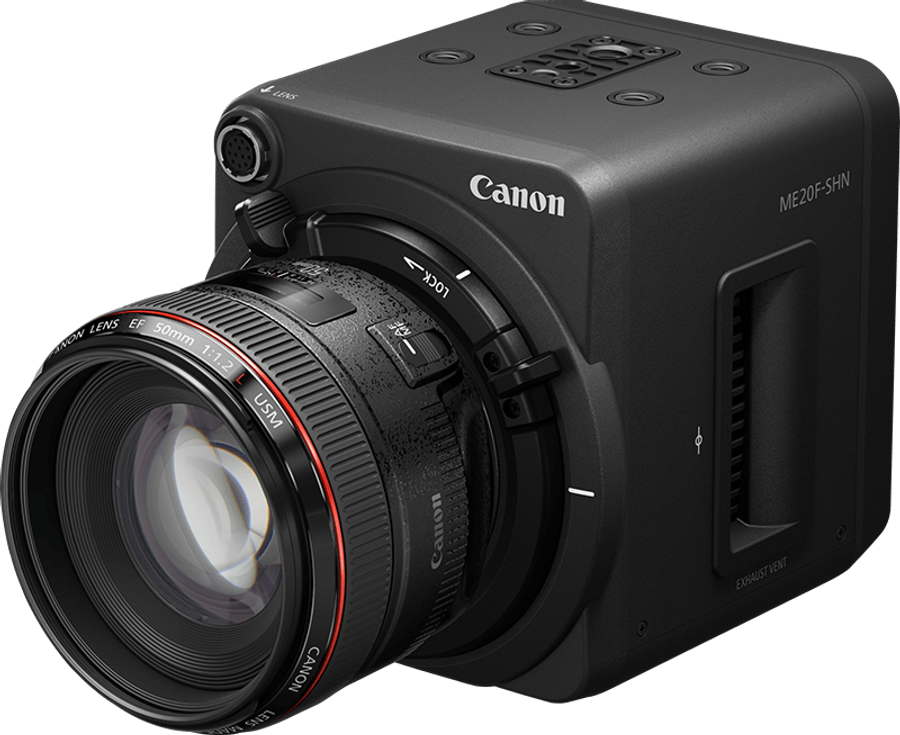

Canon Multi-Purpose Network Camera ME20F-SHN

CANON MULTI-PURPOSE NETWORK CAMERA ME20F-SHN

Canon Multi-Purpose Network Camera ME20F-SHN

CANON MULTI-PURPOSE NETWORK CAMERA ME20F-SHN

A professional Full HD network camera offering superb low light performance from a 2.26MP CMOS sensor and an ISO in excess of 4 million.

FEATURES

A PROFESSIONAL FULL HD NETWORK CAMERA FOR LOW LIGHT SHOOTING

With a maximum ISO in excess of 4 million from a Full Frame 2.26MP CMOS sensor, the ME20F-SHN offers Full HD colour video in almost total darkness plus networking and remote control capability for critical surveillance applications.

CAPTURE VIDEO IN THE DARK

Shoot Full HD video with a 2.26MP 35mm Full Frame CMOS sensor and capture full colour footage in 0.0005 lux, over 4 million ISO.

WIDE RANGE OF APPLICATIONS

Multiple video outputs via Ethernet, SDI and HDMI port for choice of recording system. Automated operations triggered by alarm Input and built-in video analytics.

NETWORK CAPABLE

Connect via Ethernet (RJ45, 100Base-TX) for remote operation such as camera settings, monitoring and recording.

INFORMATION

BRAND

Canon

PRODUCT TYPE

Camera

FRAME

35mm Full Frame CMOS sensor (Full HD/1080P)

LENS

Ef Lens Mount With Cinema Lock

VISIBILTY

Over 4 million ISO (Min. illumination 0.0005 lux)

NETWORK

Remote configuration and monitoring over network

ETHERNET

Ethernet (RJ45, PoE+), 3G/HD-SDI, HDMI

VIEW

Mobile Camera Viewer GUI optimized for mobile devices

SD

MicroSD memory card for local recording

FUNCTION

Built-in video analytics

SENSOR

35mm Full Size CMOS Sensor

Canon Multi-Purpose Network Camera ME20F-SHN

FILTER

RGB Primary Colour Filter (Bayer array)

EFFECTIVE PIXELS PER SENSOR

Approx. 2.26MP (2000 x 1128)

MINIMUM ILLUMINATION

0.0005 lux or less (Gain 75dB, f/1.2, shutter speed 1/30, 50 IRE, custom picture [Off])

LENS MOUNT

Canon EF mount with Cinema Lock

HORIZONTAL RESOLUTION

Depending on selected lens

FOCUS CONTROL

Manual Focus, One Shot AF*

ND FILTER

Yes, 2 density (1/8, 3 stops or 1/64, 6 stops) Manually selected electronic control

IRIS CONTROL

Manual; 1/2 stop increments, 1/3 stop increments, fine adjustment. Push Auto Iris via assignable button. Auto (combined function combining Iris, Gain, Shutter and ND filter operation)

APERTURE RANGE/FILTER DIAMETER

Depending on selected lens

DIGITAL TELECONVERTER

Yes : X2/X3/X4 tele converter

TYPE

DIGIC DV 4/DIGIC NET II

BIT DEPTH

10 bit (8 bit effective)

IMAGE STABILIZATION SYSTEM

No

MISCELLANEOUS

-Dimensions (excluding protrusions) : Approx. 102mm x 116mm x 113mm (W xH x D) 4.0 x 4.6 x 4.4 inches
-Weight (camera only) : Approx. 1.3 kg (2.87 lb)
-Operating Temperature range : 0 to 40°C
-Storage Temperature range : Temperature -30°C – +60°C Humidity 5% – 90% (without condensation)
-Certifications and Compatibilit : EN55032 Class A, FCC part15 subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS EN55032 Class A, CNS13438 Class A, EN55024, EN50581, CNS15663, IEC/UL/EN60950-1

SERVER

SIMULTANEOUS CLIENT ACCESS

- Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients

IMAGE UPLOAD

FTP/HTTP/SMTP (e-mail)

EVENT NOTIFICATION

HTTP/SMTP (e-mail)

EVENT TRIGGER TYPE

External Device Input, Intelligent Function (Video), Timer, Infrared Switching

INTERVAL RECORD

No

FRAME RECORD

No

BIT RATE CONTROL

- Variable bit rate / Constant bit rate
- Target Bit Rate: 64/128/256/384/512/768/1024/1536/2048/3072/4096/6144/8192/10240/12288/14336/16384 kbps

AUDIO COMMUNICATION METHOD

-Full-duplex (two-way)/half-duplex -RTP, Sound Transfer Protocol by Canon

PROTOCOLS

IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP, DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP, SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary)

ONVIF PROFILE

Profile-S, Profile-G

AUDIO COMPRESSION METHOD

G.711 μ-law (64 kbps)

PRIVACY MASK

Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors)

PRESET

Digital PTZ and Camera setting Number of registration: Max. 20 positions (+Home Position)

INTELLIGENT FUNCTION (VIDEO)

-Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection -Number of registration: Max. 15 -Non-detection Area Settings: Available

IMAGE CROPPING FUNCTION

Cropping sizes: 640 x 360/512 x 288/384 x 216/256 x 144/128 x 72

LOG NOTIFICATION

SMTP (e-mail)

DAYLIGHT SAVING TIME

Available

ON-SCREEN DISPLAY

German/English/Spanish/French/Italian/Russian/Turkish/Japanese

VIDEO OUTPUT

VIDEO COMPRESSION METHOD

JPEG, MPEG4-AVC/H.264

I-FRAME INTERVAL

0.5/1/1.5/2/3/4/5 sec.

NETWORK TERMINAL

Yes

VIDEO QUALITY

10 levels

VIDEO SIZE AND FRAME RATE

- 1280x720 : 59.94P/50P
- 640x480 : 59.94P
- 768x576 : 50P
- 3G/HD-SDI Output: 1920x1080 : 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
- 1280x720 : 59.94P/50P/29.97P/25P/23.98P
- HDMI Output: 1920x 1080 : 59.94P/59.94i/50P/50i/29.97PsF/25PsF

VIDEO SIZE AND FRAME RATE

- JPEG: 1920 x 1080: 0.1 – 30 fps
- MPEG4-AVC/H.264: 1920 x 1080: 1/2/3/5/6/10/15/30 fps
– Only the following combination is available for video output via a network. System frequency: 59.94 Hz, Frame rate: 29.97P, Resolution: 1920 x 1080
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer computer's specs, the number of clients accessing at the same time, network loads, video quality setting, type or movement of the subject or other reasons.
- Maximum frame rate when used in the following combinations:
- When streaming H.264(1) (1920 x 1080) and H.264(2) (all sizes) simultaneously: 15 fps
- When streaming H.264(1) (all sizes) and H.264(2) (1920 x 1080) simultaneously: 15 fps

SYSTEM

TIME CODE

No

HDMI

Yes

AUTOMATIC EXPOSURE SETTING

Shutter Priority, Aperture Priority, Auto Gain Control (AGC)

AUDIO INPUT

3.5mm stereo mini jack, plug-in power mic supported

VIDEO OUTPUT

Yes, Ethernet x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) , 3G/HD-SDI (BNC) , HDMI.

ETHERNET

Yes (RJ45, 100Base-TX (auto/full-duplex/half-duplex))

HDMI OUTPUT

Yes

USB

No

LENS TERMINAL

Yes, 12-pin Connector

3G/HD-SDI OUTPUT

Yes, OSD Compatible

REMOTE CONTROL TERMINAL

Yes, 2.5mm mini jack (Canon Unique Protocol)

DC INPUT

Yes. 2-Pin connection. Input voltage 11 - 17V

COLOUR BARS

Yes, SMPTE, EBU and ARIB depending on system frequency

USER ASSIGNED FUNCTIONS

Yes, 4 buttons. Assignable items: One-Shot AF / Push Auto Iris / ABB /AE Shift + / AE Shift - / Color Bars / Aspect Marker / Set WB / Tele-converter / Infrared / External Rec / Custom Picture / Camera Mode A/M.
Assignable button 4 is located on the optional RC-V100 Remote Controller.

ALARM IN/OUT

Input x 1, Output x 1

SERIAL PORT

RS-422/RS-485 x 1

MEMORY CARD CONNECTOR

1x microSD Memory Card (for recording) – microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card Compatible.
1x microSD Memory Card (for firmware update only, no recording capability)

SHOOTING FUNCTIONS

EXPOSURE LOCK

No

GAIN SETTING

0dB to -75dB in 3dB intervals.

EXPOSURE COMPENSATION

Yes: ±2.0, ±1.75, ±1.50, ±1.25, ±1.0,±0.75, ±0.50, ±0.25 or ±0

AUTO GAIN CONTROL SETTING

Yes , OFF (75dB) or value from 36dB to 75 dB (in 3 dB increments)

ISO SENSITIVITY

Maximum in excess of ISO 4,000,000 equivalent at -75dB

SHUTTER ANGLE

No

SLOW SHUTTER (SLS)

Yes

CONTROL MODES

Manual 1/4 stop increments, Auto (combined function combining Iris, Gain, Shutter and ND filter operation)

DYNAMIC RANGE

Canon Log/Wide DR mode: 800%/12 stops at +9.0dB (Approx. ISO2300)

SHUTTER SPEED

1/3 sec - 1/2000 sec depending on system frequency and frame rate

SCAN REVERSE

Yes

CLEAR SCAN

No

BUILT-IN IR LAMP

No

AUTO

Yes

INFRARED SHOOTING MODE

Yes: IR Cut-out filter, electrically operated, manual only

PRESET

Daylight/Tungsten/Color Temperature

SHOCKLESS WB

Yes, Via Custom Function Menu

MANUAL SETTING

Set A, Set B (Default 5,500K) Kelvin (2,000K - 15,000K)

CUSTOM PICTURE OPTIONS

Ten Custom Picture options: Canon Log, Wide DR, EOS Standard, Blue Scr, Green Scr, Crisp Img, CP1 - CP4. User customisable settings: Black, Black Gamma, Knee, Sharpness, Noise Reduction, White Balance

COUNT UP SYSTEM

No

START VALUE SETTING

No

INPUT

Linear PCM 48 kHz 16-bit digital conversion, 2 channels

OPERATING ENVIRONMENT

Setting Page, Viewer

APPLICATION

OPERATING SYSTEM LANGUAGE

German/English/Spanish/French/Italian/Russian/Turkish/Japanese

PC

CPU (Recommended): Intel Core i7-2600 or higher
Graphics Board (Recommended): Not specified
Memory (Recommended): 2 GB or higher
Viewer Display (Recommended): 1920 x 1080 or higher

MOBILE ENVIRONMENT

- iOS 12.2, iOS 11.4.1; Safari, Android 9.0; Chrome 74
– Must be configured to allow use of JavaScript, IFRAME (html tag), and web storage
– For Camera Viewer only, cookies must be enabled
– Does not support playback of Video (H.264) or audio transmission/reception
– Setting Page and Camera Viewer are not supported for the mobile device where the display size is smaller than 7".

ACCESSORIES

- Supplied : Power connector (L-shaped) : Power connector (straight)
- Optionals : RC-V100 remote Control Unit, Tripod Adapter TB-1
- Power Supply : PoE+ power supply via Ethernet connector (IEEE802.3at Type2 compliant) : DC 11 – 17 V
– Some lens operates only on DC power supply
- Power Consumption (camera body only) : PoE+: Max. approx. 18.0 W* DC: Max. approx. 16.0 W
* Class 4 power sourcing equipment (requests 30.0 W)

OS AND COMPATIBLE WEB BROWSER

- Windows 7 Ultimate/Windows 7 Professional/Windows 7 Enterprise/Windows 7 Home Premium SP1 32/64-bit; Internet Explorer 11 32/64-bit, Chrome 74*2
- Windows 8.1/Windows 8.1 Pro/Windows 8.1 Enterprise 32/64-bit*1; Internet Explorer 11 32/64-bit, Chrome 74*2
- Windows 10 Pro/Windows 10 Enterprise/Windows 10 Education/Windows 10 Home 32/64-bit; Internet Explorer 11 32/64-bit, Microsoft Edge*2, Chrome 74*2
- Windows Server 2008 Standard SP2 32/64-bit; Internet Explorer 9 32-bit
- Windows Server 2008 R2 Standard SP1 64-bit; Internet Explorer 11 32/64-bit, Chrome 74*2
- Windows Server 2012 Standard 64-bit*1; Internet Explorer 10 32/64-bit, Chrome 74*2
- Windows Server 2012 R2 Standard 64-bit*1; Internet Explorer 11 32/64-bit, Chrome 74*2
- Windows Server 2016 Standard 64-bit; Internet Explorer 11 64-bit, Chrome 74*2
- Windows Server 2019 Standard 64-bit*3; Internet Explorer 11 64-bit
- Cannot be started from the Windows start screen
- Does not support playback of Video (H.264) or audio transmission/reception
- Does not support the Camera Management Tool or the Recorded Video Utility
– Must be configured to allow use of JavaScript, IFRAME (html tag), and web storage
– For Camera Viewer only, cookies must be enabled
