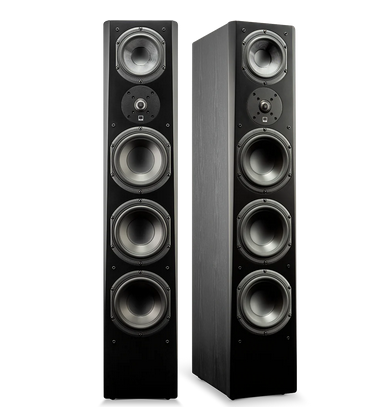

PRIME PINNACLE SPEAKER

World-class Audio For Everyone

Audiophile refinement with breathtaking bass, clarity, and dynamics, the Prime Pinnacle speaker hits the ultimate sweet spot for immersive music and home theater.

A triple ported cabinet design, custom drivers, and SoundMatch 3-Way Crossover highlight the tower speaker design, rendering pristine full-range output.

Svsound Prime Pinnacle Speaker

INFORMATION

BRAND

Svsound

PRODUCT TYPE

Speaker

COLLECTION

Dual

PRODUCTION

Made in United States

Svsound Prime Pinnacle Speaker

CABINET DIMENSIONS

- Height 40.5" in
- Width : 8" in
- Depth : 13.4" in

SHIPPED DIMENSION

- Height : 46.5" in
- Width :14.8" in
- Depth : 19" in

OVERALL DIMENSIONS

- Height : 41.1"in
- Width : 8" in
- Depth : 13.9" in

COLLECTION

Prime

TWEETER

1"

WEIGHT

- Weight Packaged : 66 lbs (29.9 kg)
- Weight Unboxed: 57.1 lbs (25.9 kg)

FREQUENCY RESPONSE / ACOUSTIC DATA

- Nominal impedance: 8 ohms
- Rated bandwidth: 29 Hz-25 kHz (±3 dB)
- Recommended amplifier power: 20-300 watts
- Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300-3kHz)

MIDRANGE

5.25"

WOOFER

Triple 6.5"

MATERIAL

Aluminium

FREQUENCY RESPONSE

29Hz-25 kHz (+/-3 dB)

SPEAKER SPECS

-5-way binding posts
-Floor Standing Tower Loudspeaker -Black ash and piano gloss black finish options
-Cloth grille with pin/cup retention system

Svsound Prime Pinnacle Speaker

1” ALUMINUM DOME TWEETER

-Aluminum dome for exceptional transient response
-FEA-optimized diffuser for airy and unveiled presentation

5.25” MIDRANGE DRIVER

-Vented voice coil former minimizes air compression artifacts -Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band -Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response -Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer

CROSSOVER & CABINET SPECS

Crossover

-2-piece PCB design reduces component interference -Tweeter-to-Midrange crossover: 2.1kHz (12 dB/octave slopes) -Midrange-to-Woofer crossover frequency: 300Hz (12 dB/octave slopes) -3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards

CABINET

-Separate sealed midrange enclosure with angled bracing diffuses and shifts standing waves beyond the driver pass band, improving sound quality -Three separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response -Acoustically transparent and FEA optimized grilles minimize diffraction -Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response -FEA-optimized cabinet and angled bracing eliminates resonances and improves cabinet rigidity for acoustically inert enclosure

DETAIL

Svsound Prime Pinnacle Speaker

ALL-NEW 5.25" MIDRANGE DRIVER WITH COMPOSITE GLASS-FIBER CONE

Delivers pinpoint accuracy and broad soundstage for more immersive audio experiences. The majority of audio content in music and movies is present in the midrange frequencies so it’s imperative to have a driver capable of producing slam and impact as well as subtle details with tonal accuracy. Prime Pinnacle’s midrange borrows design elements from the reference Ultra Series to deliver uncompromised audio performance at all drive levels.

Svsound Prime Pinnacle Speaker

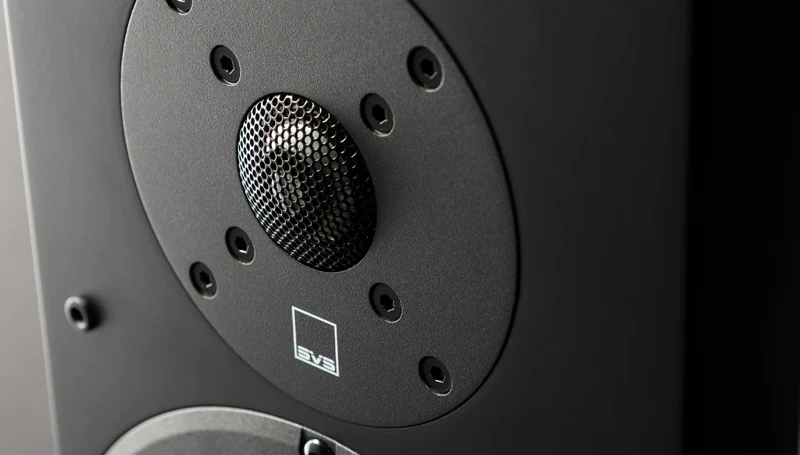

PREMIUM 1” ALUMINUM DOME TWEETER

Renders crystal clear highs with lifelike realism even at reference volume. Light, efficient and impervious to distortion, the tweeter’s airy’ presentation effortlessly reveals every sonic detail with pristine clarity and unerring accuracy. The FEA-optimized diffuser ensures broad dispersion for a wide and convincing soundstage with pinpoint on- and off-axis frequency response so everyone in your room is treated with the same amazing audio experience.

SVS SOUNDMATCH 3-WAY CROSSOVER

Creates an expansive soundstage with accurate frequency response and precise imaging for largest “sweet spot” possible. The 3-way crossover is uniquely tuned so each driver, from tweeter to midrange and midrange to woofers, blend seamlessly with each other while offering excellent on and off-axis frequency response and pinpoint spatial imaging for the most convincing audio experience possible.

Svsound Prime Pinnacle Speaker

The crossover’s topology and architecture are consistent with all SVS speakers so Prime Pinnacle is timbre matched to integrate with any speaker from the acclaimed Prime or Ultra Series for the ultimate flexibility when building a system

Svsound Prime Pinnacle Speaker

SONICALLY INERT AND RIGIDLY BRACED CABINET

Four self-contained, acoustically tuned internal chambers eliminate any potential for resonances or sonic artifacts from the enclosure, resulting in pristine audio playback across the frequency spectrum. Tapered edges on the Prime Pinnacle speaker’s front baffle, known as chamfers, minimize edge diffraction for a clear and precise soundstage while features like shorting rings and tweeter diffusers provide acoustic enhancements with modern, high-end visual appeal.

LIFESTYLE-FRIENDLY FOOTPRINT

Fits seamlessly in any room layout or décor. Slim enough to place next to furniture or near a wall, yet spacious enough to produce effortless output and reference sound quality, Prime Pinnacle delivers jaw-dropping performances in stereo and home theater systems from a classically handsome tower speaker design.
