CANON CANON ULTRA-HIGH SENSITIVITY CAMERA MS-500

The MS-500 lets you see the unseen. With a 1-inch type Single-Photon Avalanche Diode (SPAD) sensor, designed and made by Canon, it outputs full-colour, Full HD footage with low noise in a wide variety of low-light environments for long range security and monitoring applications.

INFORMATION

BRAND

Canon

PRODUCT TYPE

Camera

1.0-TYPE SPAD SENSOR

2.1MP Canon designed sensor made for exceptional low-light performance.

MINIMUM ILLUMINATION (PAL)

0.001 lux (F1.4 equivalent, Night mode in colour, Shutter speed 1/30 sec, 50 IRE, Maximum Gain)

COLLECTION

Ultra-high Sensitivity Camera Ms-500

SENSOR

1.0" SPAD Sensor

TOTAL PIXELS

Approx 3,200,000 (3.2MP)

Canon Canon Ultra-high Sensitivity Camera Ms-500

CAMERA CONTROL PROTOCOLS

Supports Pelco-D protocol or Canon’s proprietary NU protocol.

TIME-LAPSE MOVIES

Record movement on a different timescale

LENS MOUNT

B4 Bayonet lens mount based on BTA S-1005B standards

AF/MF

Manual Focus or One-Shot AF options.

LENS MOUNT

B4 Bayonet lens mount based on BTA S-1005B standards

LENS TERMINAL

Circular 12-pin Jack x 1

POWER SUPPLY (MAINS)

DC12V to 30V

DIMENSIONS

Approx. 128 x 128 x 184 mm (5.04 x 5.04 x 7.24 in.)

Canon Canon Ultra-high Sensitivity Camera Ms-500

EFFECTIVE PIXELS PER SENSOR

Approx. 2,100,000 (2.1MP)

LENS TERMINAL

Circular 12-pin Jack x 1

WEIGHT (BODY ONLY)

Approx. 2.2 kg

POWER SUPPLY (MAINS)

DC12V to 30V

POWER CONSUMPTION

Max. 23.7 W

SDI OUTPUT

- 1280 x 720: 59.94P, 50.00P
- 29.97P, 29.97PsF, 25.00P, 25.00PsF
- 1920 x 1080: 59.94P (Level A/B supported), 59.94i, 50.00P (Level A/B supported), 50.00i,

REMOTE CONTROL TERMINAL

Circular 8-pin jack x 1 (RS-232C/RS-422/RS-485) switchable by DIP switch

OPERATING TEMPERATURE RANGE

- Operating temperature range : -20°C - +45°C (-4°F - +113°F)
- Start-up temperature range : -10°C - +45°C (-14°F - +113°F)

FLEXIBLE CONNECTIVITY

Remote 8-Pin Terminal (supporting NU & Pelco-D Protocols), 3G/HD-SDI, 12-Pin Lens Terminal, Genlock, DC-IN (12-30V)

FEATURES

DURABLE AND DEPENDABLE

The MS-500 is built to be used for specialist long distance monitoring under challenging conditions and can operate around the clock in temperatures ranging from -20oC to 45oC.

Canon Canon Ultra-high Sensitivity Camera Ms-500

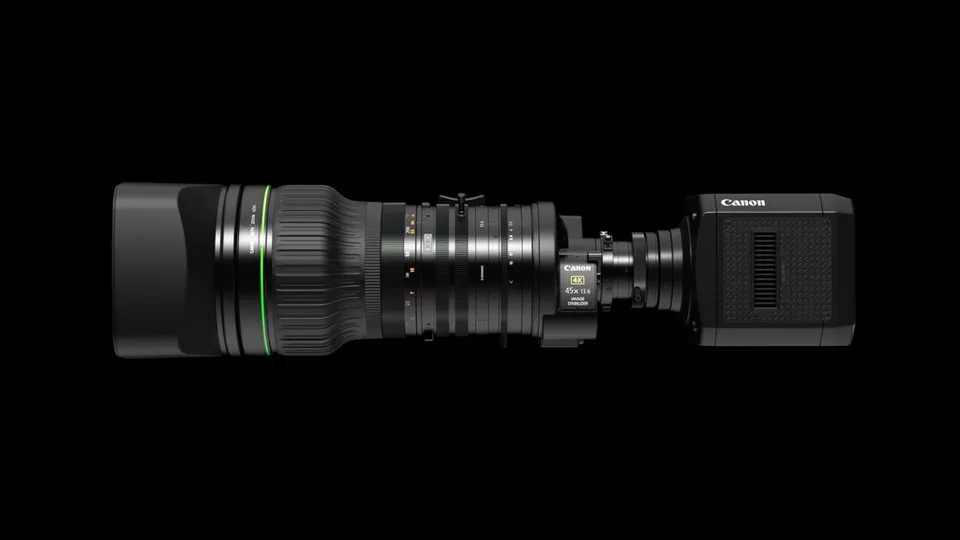

B4 LENS MOUNT FOR EXCEPTIONAL VERSATILITY

Use Canon’s extensive range of broadcast lenses, which excel at super-telephoto image capturing. Achieve a reach of over 2400mm focal length (35mm equivalent).

Canon Canon Ultra-high Sensitivity Camera Ms-500

LONG RANGE COLOUR MONITORING, DAY OR NIGHT

Accurately monitor long range subjects with 2/3” broadcast lenses for greater telephoto reach. The combination of B4 mount, built-in 1.3x Optical magnifier and 1-inch type SPAD sensor enable accurate monitoring of long-distance subjects in colour whether in good light, or darkness.

Canon Canon Ultra-high Sensitivity Camera Ms-500
Canon Canon Ultra-high Sensitivity Camera Ms-500

MANUAL AND AUTOMATIC REMOVABLE IR CUT FILTER

Control the IR cut filter automatically or manually to acquire extra IR light when shooting after dark.

Canon Canon Ultra-high Sensitivity Camera Ms-500

REMOTE OPERATION MADE EASY

Operate the camera remotely using either the Pelco-D protocol or Canon’s proprietary NU protocol.

HIGH SENSITIVITY 2.1MP SPAD SENSOR

When a photon strikes the sensor, an electron is generated, this triggers a chain reaction or "avalanche" of electron production. This photon is converted to an electric charge, the SPAD sensor then amplifies the charge by a million times with a phenomenon called the 'avalanche multiplication', causing a large current to flow instantaneously.

Canon Canon Ultra-high Sensitivity Camera Ms-500

This large current is read out as a voltage signal in the form of a train of pulses corresponding to individual photons. This SPAD sensor's unique light sensing technology can achieve incredible low-light performance.
