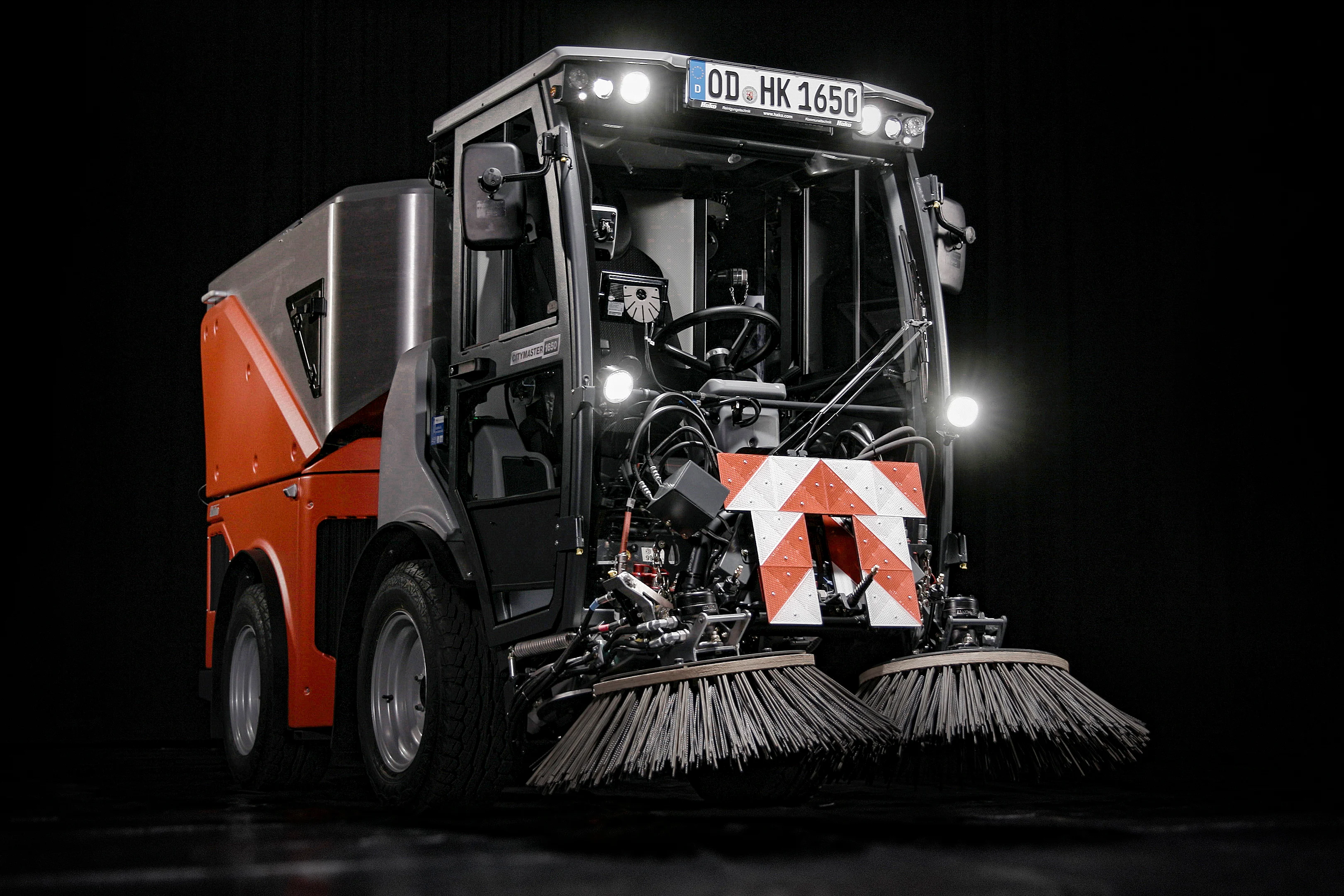

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

CITYMASTER 650 MULTIFUNCTIONAL OUTDOOR CLEANING MACHINE SWEEPER

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

CITYMASTER 650 MULTIFUNCTIONAL OUTDOOR CLEANING MACHINE SWEEPER

The new Citymaster 650 offers extremely high levels of flexibility and comfort

INFORMATION

BRAND

Hako

PRODUCT TYPE

Sweeper

STEERING

Small vehicle width and directionally stable steering with articulated joint

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

ENGINE (TYPE, EMISSION, STANDARD, EXHAUST GAS TREATMENT)

Diesel 25,5 kW, 2016/1628/EG Stage V

DRIVE

Hydrostat, 4x4, 25 km/h

HYDRAULIC

Efficient hydraulic attachment drive

CABIN

ROPS - tested 1 person safety comfort cabin, Frame doors with sliding windows, Hot- water heating/ air conditioning (option)

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

DIMENSIONS

- Length : 3.126 mm
- Width : 1090 mm
- Height : 1969 mm

PRODUCTION

Made in Australia

PERMISSIBLE WEIGHTS

2.200 kg/ 1.200 kg / 1.500 kg (GVW/VA/HA)

CHASSIS AND STEERING

Hydraulically steered, articulated 4-wheel chassis: steering angle 53°, attachment quick- change system

BREAKING SYSTEM

Hydrostatic brake acting on all four wheels, service brake at the rear, Mechanical parking brake Hacting on the rear wheels

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

PROVIDING INCREASED COMFORT AND SAFETY

The basic version of the Citymaster 650, designed as a compact implement carrier, already sets new standards in the 2-t class: for example with articulated steering, permanent all-wheel drive with a fully electronic control system and extensive features providing increased comfort and safety at work.

ERGONOMIC

Ergonomic workplace

LED LIGHTING SYSTEM

Full LED lighting system plus LED work lights

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

DOWNLOAD

↓ Brochure

TYPE APPROVAL / DRIVING LICENCE

Class B

EXTREMELY VERSATILE

Thanks to its multi-functional design, the Citymaster 650 can be retooled quickly and easily, for example as a professional sweeper for winter service tasks, which makes this machine extremely versatile in use.

FEATURES

-More freedom : Compact, highly maneuverable, economical: for optimal results – even on footpaths and in confined areas.
-More flexibility : 365 working days a year: through multifunctionality and a wide range of attachments and superstructures for any kind of seasonal challenge.
-More comfort : Made for the operator : spacious and ergonomic workplace, easy-to-learn operating concept and a back-friendly quick-change system.

UNLADEN WEIGHTS

1,430 kg (implement carrier), 1,780 kg (sweeper)

TYRES

23 x 8.50 - 12 standard tyres // 270/50 -12 comfort tyres // 23 x 10.50 - 12 lawn tyres

MULTIPURPOSE USE THROUGH MULTIFUNCTIONALITY

The Citymaster 650 is a versatile implement carrier and professional sweeper all in one. Thanks to four attachment interfaces allowing the combined use of different attachments and superstructures, the machine can carry out a wide range of additional tasks: for example winter service, green area maintenance, or wet cleaning tasks. You only need one machine instead of several special vehicles – which is both more efficient and economical.

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

DETAIL

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

A WHOLE RANGE OF APPLICATION OPTIONS

Sweeping the pedestrian zone in town followed by mowing grass in the park: With its top speed of 25 km/h, the Citymaster 650 is fast enough to travel to the next nearby job site on its own axles – and compact enough to be transported on a trailer in order to cover larger distances.

MORE COMFORT AT THE WORKPLACE

A spacious, ergonomic workplace facilitates long working days. In this respect, the Citymaster 650 sets a best-practice example: with extended and individually adjustable seat options as well as a comfort steering column adjustable in height and length.

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

And to ensure that work runs smoothly for the machine operator, a powerful heating system with optional air conditioning ensures pleasant temperatures in the cabin.

FREEDOM THROUGH FLEXIBILITY

Urban furniture, flower beds, and narrow passages are obstacles we often see in public areas. With its small turning circle of only 139 cm and independently controlled sweeping units, the Citymaster 650 overcomes these obstacles easily.

Hako Citymaster 650 Multifunctional Outdoor Cleaning Machine Sweeper

Even curbs as high as 150 mm are no problem at all for this machine thanks to its permanent all-wheel drive with a fully electronic control system.
