Svsound 3000 In-Wall Subwoofer
3000 IN-WALL SUBWOOFER
3000 IN-WALL SUBWOOFER
For the first time ever, an architectural subwoofer delivers on the promise of immersive, cinematic bass without compromise.
A feat of inspired engineering, SVS 3000 In-Wall subwoofer is primed for easy installation in an existing room or new construction and features dual active 9-inch high-excursion drivers powered by an 800 watt RMS, 2,500+ watts peak amplifier with discrete MOSFET output.
INFORMATION
PRODUCT TYPE
Subwoofer
BRAND
Svsound
WEIGHT
- Subwoofer Weight (with grill) : 25.5 lbs (11.6 kg)
- Subwoofer Weight (without grill) : 23 lbs (10.4 kg)
SUBWOOFER EXTERIOR (WITH GRILL) DIMENSIONS
- Height : 26.76” (679.6 mm)
- Width : 13.76” (349.6 mm)
- Depth : 1.34” (34 mm)
SUBWOOFER EXTERIOR (WITHOUT GRILL) DIMENSIONS
- Height : 10.9” (278 mm)
- Width : 11.7” (297 mm)
- Depth : 10.7” (271 mm)
PRODUCTION
Made in United States
IN-ROOM LOW FREQUENCY
19Hz
TECHNICAL DRAWING
DUAL SUBWOOFERS SYSTEM PACKAGED DIMENSIONS
- Length : 37.20” (945 mm)
- Width : 19.88” (505 mm)
- Depth : 15.94” (405 mm)
SUBWOOFER IN-WALL CABINET ONLY DIMENSION
- Height : 25” (635 mm)
- Width : 12” (305 mm)
- Depth : 3.74” (95 mm)
FREQ. RESPONSE
22-250 Hz ±3 dB
SINGLE SUBWOOFER MAX OUTPUT
@ 32Hz 1/8 space 1m = 107.6dB
SINGLE SUBWOOFER SYSTEM PACKAGED DIMENSIONS
- Length : 36.22” (920 mm)
- Width : 20.20” (513 mm)
- Depth : 9.57” (243 mm)
SUBWOOFER SPECS
-Paintable magnetically attached removeable grill -Available in Single Subwoofer System or Dual Subwoofer System configurations -Ultra-Rigid Aluminum and MDF cabinet design with fully braced 2.5mm thick aircraft grade aluminum front and rear baffles sandwich a fully braced 0.75” (18mm) MDF frame for an inert and resonance free enclosure, maximized internal acoustic volume, rigorously tested, and optimized for maximum strength, minimum cabinet coloration, and maximum acoustic output into the room.
PACKAGED DIMENSIONS
- Single Subwoofer System Weight : 45lbs (20.4kg)
- Dual Subwoofers System Weight : 62.5lbs (28.4kg)
MASSIVE OUTPUT
Dual 9-inch active high-excursion drivers electrically in parallel for massive output from a sonically inert sealed enclosure.
DRIVER
Active Front-Firing Dual 9-in
AMPLIFIER
800 watts RMS (2,500+ watts peak)

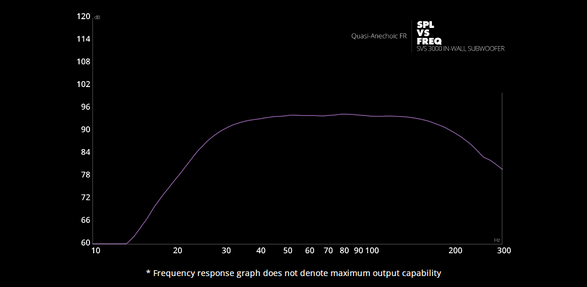

FREQUENCY RESPONSE / ACOUSTIC DATA
-+/-3dB 22Hz to 250Hz -In-Room Low Frequency: -19Hz -Single Subwoofer Max Output @ 32Hz 1/8 space 1m = 107.6dB
-Dual Subwoofers Max Output @ 32Hz 1/8 space 1m = 110.6dB Combined
SVS APP SPECS
-Powerful Bluetooth-controlled subwoofer DSP app works with iOS, Android, and Amazon operating systems -Provides easy and convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass-management functions -Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat
-Bidirectional-feedback shows adjustments in real time on both app and subwoofer rear panel interface
DUAL SUBWOOFERS MAX OUTPUT
@ 32Hz 1/8 space 1m = 110.6dB Combined
ACCESSORIES
- Amplifier Rack-mount kit.
- Installation and Setup Guides.
- Pre-construction bracket (sold separately).
- Extra heavy-duty, high-current 6’ power cord.
- Non-resonant paintable magnetically attached steel mesh grill.
- Dedicated Banana speaker wire plugs for fast and easy subwoofer hookup with a single hand.
REFERENCE SUBWOOFER PERFORMANCE HITS NEW LOWS. AGAIN.
2000 Pro models replace the most popular SVS subwoofers of all time, and since we don’t believe in anything less than a complete reimagining, they represent a massive performance upgrade over the original 2000 Series in every way. An icon of SVS subwoofer innovation, the cylinder-shaped cabinet design of the PC-2000 Pro subwoofer provides all the benefits of a massive ported box subwoofer, without sacrificing floorspace.
A sophisticated 550 watts RMS, 1,500+ watts peak power Sledge STA-550D DSP amplifier, innovative new 12-inch high-excursion SVS driver and optimized ported cylinder cabinet design take control of a space with amazingly deep and room-filling output without a hint of distortion, even at reference playback levels. PC-2000 Pro features convenient control and custom presets via the SVS subwoofer DSP smartphone app for Apple, Android and Amazon devices ®.
The SVS app is the most convenient way to control volume, access multiple DSP functions and program custom presets for music, movies, gaming, and more. An ideal solution for reference bass in audiophile music systems or home theater surround sound systems, the PC-2000 Pro sets all performance benchmarks in its price range while outperforming much larger subwoofers.
DRIVER SPECS
-All new 9-inch high-excursion drivers custom designed for shallow depth and maximum linear output -Lightweight and rigid aluminum vented cone with aluminum dustcap generates massive output with pinpoint accurate frequency response. -Proprietary injection-molded Long-throw surround with FEA optimized design ensures longevity and extreme excursion for room-energizing bass. -Precisely tuned overhung motor configuration for unerring woofer control at all drive levels : Total Excursion (each driver): 23.4mm Xmax, 29mm Xmech -High-current 4-layer copper voice coil winding minimizes distortion and power compression, while providing effective heat dissipation and tuned magnetics for accuracy at high excursion -Formidable proprietary ferrite motor system generates high-flux-density magnetic fields to drive room-filling sound pressure levels with pinpoint transients
-1100 Aluminum custom low-profile cone dustcap provides excellent stiffness, lightweight moving mass, and optimized thermal conduction -Oversized motor system generates massive magnetics to drive room-filling sound pressure levels with pinpoint transient speed -Precision machining for motor and narrow tolerance suspension parts maintain control and linearity at full excursion -6061 Aluminum shorting ring improves linearity of magnetics and reduces distortion and gap inductance
-High temperature 3003-H18 aluminum former/bobbing -5-inch composite cotton-poly extreme excursion linear spider -Dual 24-strand plated copper leads -High-performance oversized Y30 Ferrite magnet motor -Top plate uses low carbon 1006 steel for optimal magnetics -Oversized cold-forged low carbon ML08AL steel T-yoke for maximum cooling and magnetics -Custom 9-inch driver baskets with FEA optimized powder-coated frames for maximum rigidity, thermal conductivity, and mechanical damping
TECHNOLOGY
2000 PRO SERIES TECHNOLOGY
Inspired Subwoofer Engineering for Uncompromised Performance.
The new SVS 2000 Pro Series features technology breakthroughs from the 16-Ultra Series, 4000 Series and 3000 Series, the most awarded subwoofers in existence. This technology joins with exclusive 2000 Pro Series innovations to set a new standard for subwoofer performance value. More people than ever can now enjoy room-shaking bass below the threshold of human hearing with unerring accuracy and control.
REAR PANEL INTELLIGENT CONTROL INTERFACE (ICI)
An SVS first, the new <strong>Intelligent Control Interface (ICI)</strong> rear amplifier panel with touch buttons and an LED bar interface makes DSP adjustments of volume, low pass frequency, phase and more both seamless and simple.
ACOUSTICALLY INERT CABINET TUNED FOR UNCOMPROMISED SOUND
Double-thick MDF and extensive internal bracing in the acoustically optimized <strong>SVS 2000 Pro Series cabinet designs</strong> produce a resonance-free environment that serves as a blank canvas for uncompromised subwoofer performance.
SVS SOUNDPATH SUBWOOFER ISOLATION SYSTEM
De-couples a subwoofer from the floor resulting in tighter and cleaner sounding bass while reducing floor and wall vibrations.
DETAIL
SVS SOUNDPATH SUBWOOFER ISOLATION SYSTEM
With a down-firing driver, the SVS SoundPath Subwoofer Isolation System gives the PC-2000 Pro some elevation off the floor to allow for full excursion. It also de-couples a subwoofer from the floor resulting in tighter and cleaner sounding bass while reducing floor and wall vibrations, noise artifacts and complaints from neighbors or roommates.
REAR PANEL INTELLIGENT CONTROL INTERFACE (ICI).
Intelligent Control Interface (ICI) on the rear panel of the 2000 Pro Series cabinets provide control options for the subwoofer’s most critical functions. Adjustments can be made for volume based on listening preferences and content to achieve full and balanced bass response.
Other features of the ICI include a low pass filter frequency to ensure smooth sonic transitions and seamless blending with loudspeakers and phase control to shift timing of subwoofer output to align with main speakers or additional subwoofers.
ALL NEW 12-INCH HIGH-EXCURSION SVS DRIVER – HEART-POUNDING BASS WITH SUBTLETY AND FINESSE
Completely redesigned 12-inch SVS driver delivers massive low frequency output with unerring accuracy and transient speed. An aluminum vented cone with exceptional stiffness to mass ratio and a proprietary injection molded extreme-excursion surround ensure flawless pistonic motion for flawless control and accuracy.
-Dual ferrite magnet motor : Assembly weighing over 15 lbs generates massive amounts of magnetics to produce extreme driver excursion without losing control. Effortlessly achieves extension below 20 Hz without distortion.
-Lightweight and rigid aluminum vented cone : With composite fiber dustcap creates room-energizing SPLs while maintaining control even at the highest drive levels.
-Long-throw parabolic surround : Using proprietary injection molding allows extreme excursion for bass you can feel while preserving drive unit longevity.
-Aluminum pole piece extension : Improves thermal management properties for exceptional heat dissipation.
-Dual layer voice coil design : Maximizes linearity and accuracy at full excursion while minimizing distortion and power compression.
SLEDGE STA-550D AMPLIFIER – EFFORTLESS POWER AND ABSOLUTE COMMAND.
Conservatively rated at 550 watts RMS, 1,500+ watts peak power, the Sledge STA-550D amplifier maximizes the full potential of the 12-inch driver with effortless power and precise control. The innovative design combines the efficiency of a Class D amplifier with the ability to move colossal amounts of current through the fully discrete MOSFETs for outstanding real-world subwoofer performance at all drive levels, in any room.
-High Current Output from Fully Discrete MOSFETs with Efficiency of Class D Amplifier : Allows the Sledge STA-550D amplifier to move massive amounts of current enabling immense output with surgical precision.
-Sophisticated 50MHz High Resolution Analog Devices Audio DSP : Is the most advanced digital Processor ever used in a subwoofer and maintains pinpoint accuracy and pristine sound quality through advanced in-room tuning, powerful DSP controls and more. Frequency response curves optimized specifically for the PC-2000 Pro allow the subwoofer to take control of a room and completely pressurize it with crisp, heart-pounding bass.
PC-2000 PRO SMARTPHONE APP – EASIEST WAY EVER TO MANAGE SUBWOOFER DSP AND CONTROL.
2000 Pro Series subwoofer app is the most convenient way ever to control volume, access multiple DSP functions and Program custom presets for one-touch tuning optimized for music, movies, gaming, and more. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more, all from your favorite seat. The SVS subwoofer app also allows advanced customization so you can name your subwoofer for easy preset switching, choose the subwoofer standby mode and reset the subwoofer to factory settings.
Bluetooth connectivity allows full control, even when the subwoofer is out of sight and bi-directional feedback shows adjustments in real time on both the app and rear panel subwoofer interface.
-Connects via Bluetooth for convenient control even when subwoofer is out of sight. -3 custom presets can be saved for movies, music and more so you have one-touch tuning optimized for your listening preferences. -3-band parametric EQ controller allows precise adjustments for frequency slope and Q factor down to the single Hz level with four different slopes, so users can improve performance by eliminating peaks, nulls and other room issues. -Variable Port Tuning Modes with customized frequency response curves for “Standard” and “Sealed” allow tuning for maximum output or deep bass extension and transient speed. -2-way feedback shows updates in real time on both the app and rear panel subwoofer interface.
