Sherpa Cold heat pump

SHERPA COLD HEAT PUMP

Sherpa Cold heat pump

SHERPA COLD HEAT PUMP

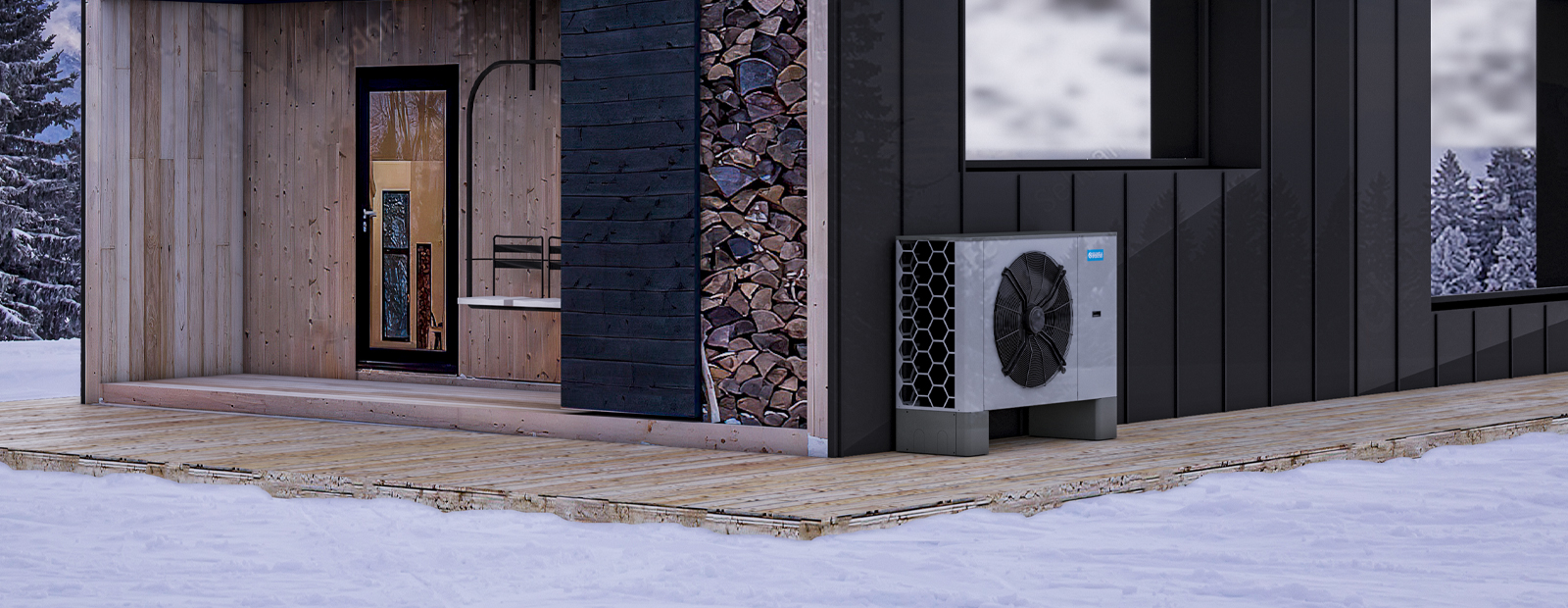

Sherpa Cold is the ideal heat pump for cold climates, it guarantees high performance even at low temperatures, thanks to the steam injection inverter scroll compressors and the optimized defrost cycles, it allows the maintenance of comfort up to very low external temperatures (operating limit : -32 ° C).

FEATURES

WIDE OPERATING LIMITS

Sherpa Cold can work up to outdoor air temperatures of -32°C and + 48°C

Sherpa Cold heat pump

INVERTER SCROLL COMPRESSORS WITH STEAM INJECTION

Technology that improves performance in low temperature applications.

Sherpa Cold heat pump

TOUCH SCREEN REMOTE CONTROL PANEL

Touch screen remote control panel as standard, with connection cable of up to 30 m.

Sherpa Cold heat pump

HIGH PERFORMANCE ALSO AT LOW TEMPERATURE

The defrosting cycles of the machine are optimised to guarantee high performance even with low external temperatures.

Sherpa Cold heat pump

INFORMATION

BRAND

Olimpia Splendid

PRODUCT TYPE

Heat Pump

EXPANSION VALVE

Electronic

REFRIGERANT CIRCUIT

With economiser

WORKING RANGE

Working range with heat pump and air temperature from -10C° to 43C°.

PRODUCTION

Made in Italy

COLLECTION

Sherpa

BOILER

Condenser wound outside the boiler free from deposits and gas-water contamination.

LAYOUT - OUTDOOR UNITS

1. Evaporator
2. Compressor
3. Filter
4. Liquid indicator
5. Inverter
6. Liquid tank
7. Electrical panel
8. Economiser
9. Ball valve
10. Check valve
11. Electronic expansion valve
12. 4-way valve
13. Fan

Sherpa Cold heat pump

OPTIMISATION OF THE MACHINE DEFROSTING CYCLES

And excellent
performance even with harsh external temperatures

MAINTAINING OF THE POWER

Of the machine even with very cold outside
temperatures

COMPRESSOR

Scroll Inverter with steam injection

OPERATING LIMITS

-32°C +48°C

REFRIGERANT GAS

R410A*

SUPPLIES DHW

With temperatures up to 55°C. C.

EXTERNAL AIR PROBE

Integrated in the machine

HOT WATER

Option to manage the domestic hot water recirculation or solar heating integration. Valid only for model 260S

Sherpa Cold heat pump

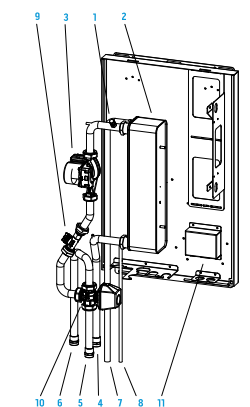

LAYOUT - INDOOR UNITS

1. Vent valve
2. Plate heat exchanger
3. Circulation pump
4. Water inlet hose
5. Water outlet hose (system)
6. Water outlet hose (DHW)
7. Gas passage hose
8. Liquid passage hose
9. Flow meter
10. 3-way valve 11. Electrical panel

POWERS AVAILABLE

- 2 Powers with single-phase R410A refrigerant : 10-15 kW
- 4 Powers with three-phase R410A refrigerant : 10-12-15-18 kW

ENERGY EFFICIENCY CLASS

- In average climate heating : Up to A+++ (35°C) and A++ (55°C)
- In cold climate heating : Up to A+ (35°C) and A+ (55°C)

DIMENSIONS

DIMENSIONS - INDOOR UNITS

Sherpa Cold heat pump
Sherpa Cold heat pump

DIMENSIONS - OUTDOOR UNITS

Sherpa Cold heat pump
Sherpa Cold heat pump
