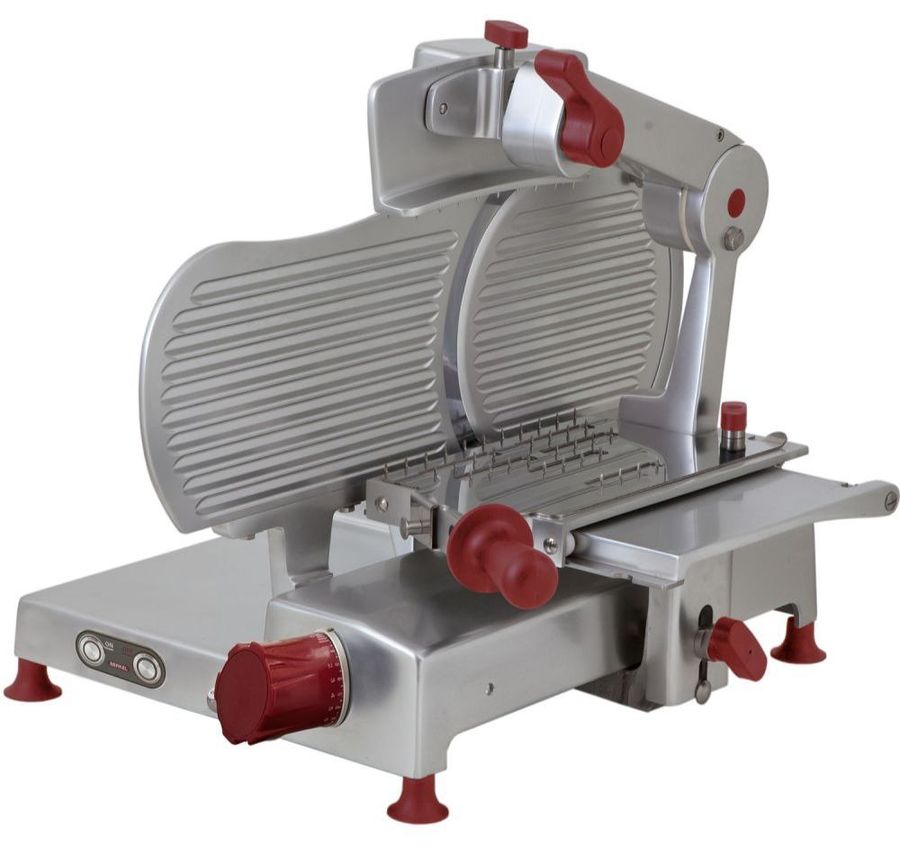

Berkel Domina Vertical Deli Slicer Sll315

Domina Vertical Deli Slicer Sll315

Berkel Domina Vertical Deli Slicer Sll315

DOMINA VERTICAL DELI SLICER SLL315

The electric gear slicer designed by Berkel for professionals in the sector.

The innovative design with rounded corners hides a heart of power and precision. Domina line is the top of the professional electric slicers range from Berkel for the "iconic red" lovers. Designed and developed specifically for the MMR (Mass Market Retailers) the Domina line can satisfy the needs of all the customers that, with no compromise, are looking for top slicing performance, highest safety standard and an easy of cleaning with no comparison in the category, to get easy of use and fast slicing operations with a related operational cost reduction.

INFORMATION

BRAND

Berkel

PRODUCT TYPE

Food Slicer

SHARPENER

Included, one-movement type

COD.ART.

BKSLESGL0100000000

BLADE DIAMETER

315 mm

DETAILS

Gear Transmission, red plastic handles, plexiglass safety guard, frontal lubricating oil refill tank, Superglide® profile of the gauge plate with double wave, removable aluminum product holder with steel tips, block of the meat table movement for a safe ham loading

Berkel Domina Vertical Deli Slicer Sll315

WEIGHT

40 kg

GUARANTEE

2 years

PROTECTION

IP67 motor and watertight electrical box for a full protection from liquids during cleaning operations

HIGH DENSITY

Gear box transmission to fully exploit the motor power for a perfect cut also with high density products

Berkel Domina Vertical Deli Slicer Sll315

DIMENSIONS

- E : 510 mm
- F : 450 mm
- G : 640 mm
- H : 560 mm
- I : 650 mm
- L : 670 mm

38 ° GRADED

38 ° graded food plate to facilitate the passage of the material and the fall of the slice (on Gravity models)

BLADE

100Cr6 steel blade, the best on the market, for a perfect cut and for a longer lasting of the sharpening

PRODUCTION

Made in Italy

BLADE MATERIAL

100Cr6

ELECTRICAL SPECS

230V 50Hz 1PH 400V 50Hz 3PH 120V 50Hz 1PH 220V 60Hz 1 PH

INCREASED BASEPLATE THICKNESS

Increased baseplate thickness (for an overall machine weight between 40kg and 50 kg in the different versions) and stainless steel feet with anti slippery rubber inserts for total stability during slicing operations

MACHINES BELONGING

All the machines belonging to this product line have been designed to provide the best performance available on the market in every category.

SHARPENING MISTAKE

Removable sharpener included with a single movement operating system to avoid sharpening mistakes by the operators

DIFFERENT BLADE DIAMETER

Domina is available in the Gravity, Vertical Salumeria and Vertical Macelleria technical configurations with different blade diameter selection from 315mm to 370mm.

Berkel Domina Vertical Deli Slicer Sll315

PERFORMANCE

 -Gauge plate and blade cover with Superglide® technology to decrease product frictions and to avoid product warming for keeping the original taste  -Very thin residual product to minimize wasted material -Wider food plate (340 mm) for a perfect positioning of every products -Lock/Unlock food plate lever to easily position the product and to keep it fixed during slicing operations  -Gauge plate opening knob with 14 millimetric adjustment positions for an accurate regulation -Gauge plate with an oblique 15 ° opening to facilitate the way out of the product while slicing (on Gravity models) -Easy removable steel deflector

CUT CAPACITY CIRCLE

225 mm

REMOVABLE PARTS

Slice guard deflector; blade guard disk; meat table carriage, second meat plate

ELEGANT DESIGN

They combine the elegant design of all the Berkel slicers, enhanced on this specific line by all the red tecno-polymer details, with the best functionality. Nothing has been left to chance, every detail brings an operational benefit to the user.

SAFETY

-Complete closure of the gauge plate for maximum safety during cleaning operations and CE Block to prevent its opening when the plate is out of place  -Assisted product press holder opening system (on Vertical models) to prevent accidental release and for an easy product positioning -Disarmed position of the meat press to prevent accidental release (on Gravity models) -ON/OFF switches with high visibility LEDs -Aluminum ring guard for increased safety -Tecno-polymer red Berkel ergonomic controls in comfortable position to minimize operator efforts -Stainless steel IP67 control panel with flush ON button to prevent accidental starting

CUT THICKNESS

0 - 14 mm

MOTOR RATING

0.25-0.30kW

CUT CAPACITY RECTANGULAR

290x225 mm

CLEANING AND HYGIENE

- Food plate lifting system to facilitate cleaning operations.
- Inclined gauge plate drainer for clearing of liquids (on Gravity models).
- Wide space between blade and motor to facilitate and speed up cleaning operations.
- Aluminum alloy baseplate made out a single mold obtaining absence of gaps (not on 370 versions).
- Liquid collection tray integrated in the casting or inside the food plate for perfect hygiene and cleaning.
- Removable stainless steel food plate and aluminum alloy product press holder with stainless steel tacks for perfect hygiene and to speed up cleaning operations.
