Olimpia Splendid Sherpa Tower S2

Sherpa Tower S2

Olimpia Splendid Sherpa Tower S2

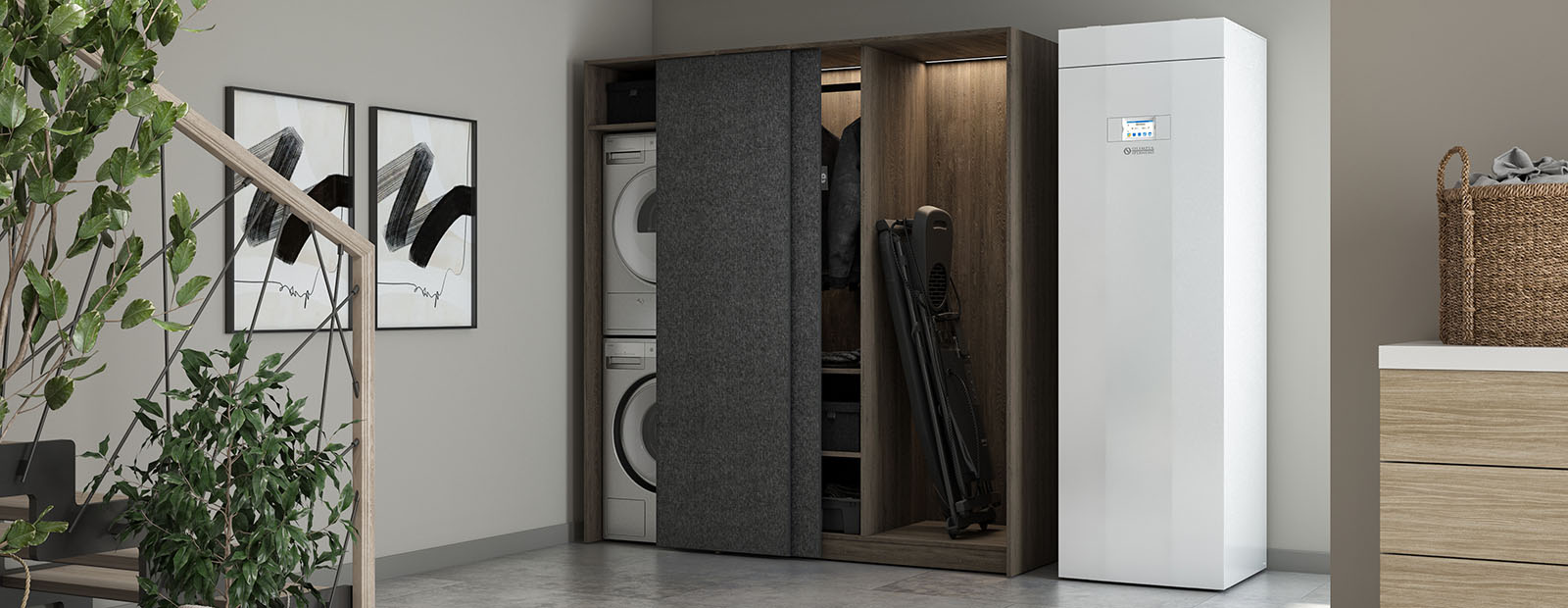

SHERPA TOWER S2

Air-water heat pump that can manage the year-round climate. It does not burn any fossil fuel: it captures the energy in the air and multiplies it. Every kW, produces more than 4 thermal energy: 75% of the energy is free, renewable and clean.

INFORMATION

BRAND

Olimpia Splendid

COLLECTION

Sherpa

REFRIGERANT GAS

R32* or R410A*

HIGH EFFICIENCY

Storage Tank 200 L

ENERGY EFFICIENCY CLASS

In Average Climate Heating Up To: A+++ (35°c) And A++ (55°c)

Olimpia Splendid Sherpa Tower S2

STANDARD DOUBLE-STAGE ELECTRIC HEATING ELEMENTS

configurable as single or double-stage, it can be activated to support the heat pump, checking, via the electronic control, the actual heat output of the heat pump. Each stage is activated according to the actual need for thermal power, in order to optimise electricity consumption.

SUPPLIES DHW

With temperature up to 60 ° C..

COMPLETE MANAGEMENT

The Anti-legionella Cycles

CLIMATIC CURVES

Based On The External Air Temperature: Two Curves Available, One For Cooling And One For Heating. The Climatic Curves Are Used To Vary The System Temperature According To The External Climatic Conditions, Adjusting The ‘’heat Input To The Building’s Thermal Needs, In Order To Achieve Energy Savings.

POWERS AVAILABLE

4 Powers with refrigerant R32: 4-6-8-10 kW singlephase
and 3 Powers with refrigerant R410A: 12-14-16 kW single-phase and three-phase

Olimpia Splendid Sherpa Tower S2

FUNCTION

Multi-function Touch Key

OPERATION

9 h Continuous Operation

COMPONENTS INCLUDED

System filling valve, 3-way valve and 2 expansion
valves (technical water and DHW)

 THERMOSTATIC MIXER

Tower Version

PRODUCTION

Made in Italy

TWO CONFIGURABLE SET POINTS

In Cooling, Three Configurable Set Points In Heating (One Of Which For Dhw): The Set Points Can Also Be Selected From A Remote Contact.

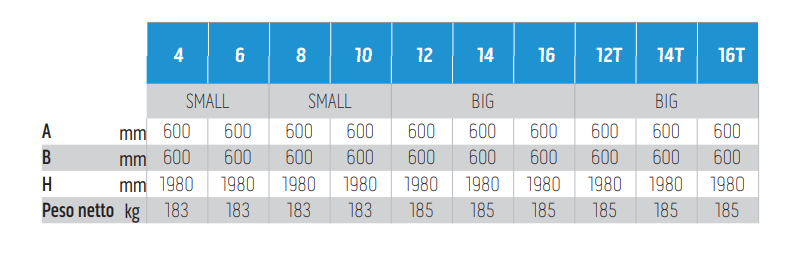

DIMENSIONAL DRAWING

Olimpia Splendid Sherpa Tower S2
Olimpia Splendid Sherpa Tower S2

FEATURES

60°C DOMESTIC HOT WATER

Sherpa Tower S2 provides domestic hot water with temperatures up to 60 ° C

Olimpia Splendid Sherpa Tower S2

LOW GWP GAS

In sizes up to 10 kW, it uses the R32 refrigerant, characterised by greater efficiency and a greenhouse effect reduced by almost 70% (compared to R410A).

Olimpia Splendid Sherpa Tower S2

TOUCH SCREEN USER INTERFACE

Flexible and configurable, it is used to customise your comfort and DHW needs and to optimise energy performance.

Olimpia Splendid Sherpa Tower S2
