SHERPA AQUADUE TOWER S3 HEAT PUMPS
SHERPA AQUADUE TOWER S3 HEAT PUMPS

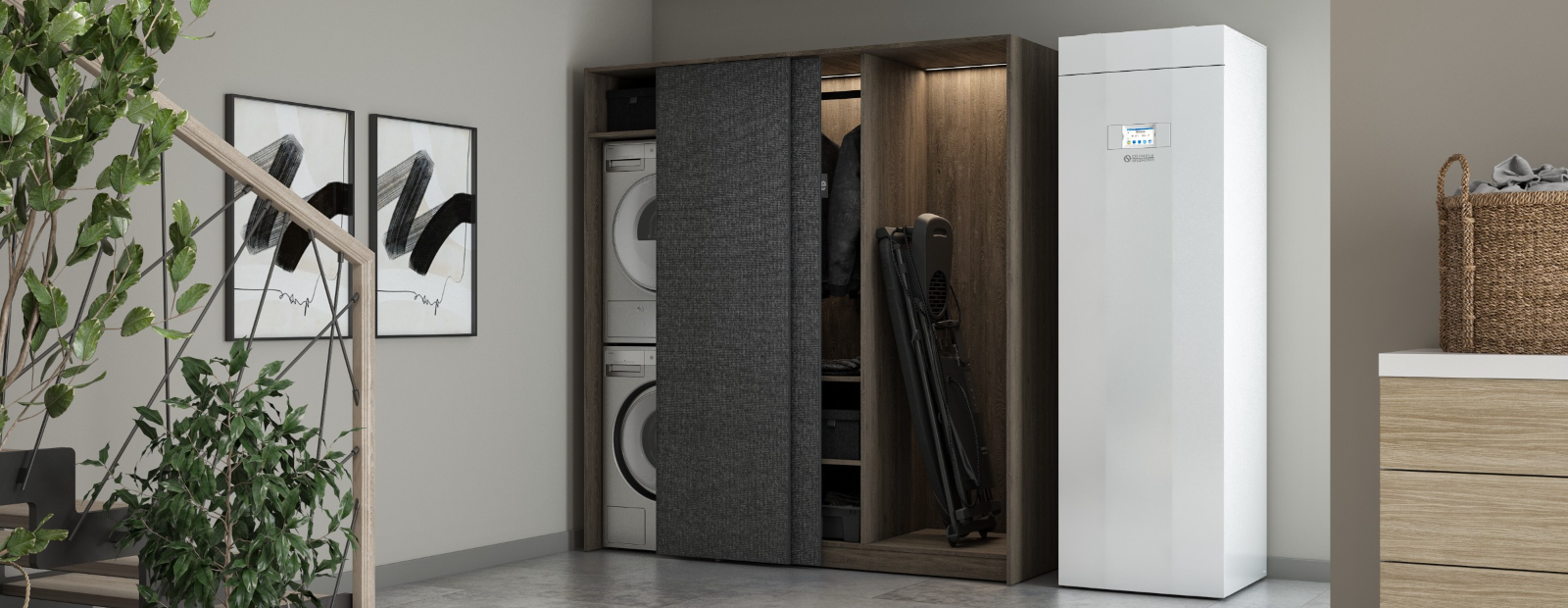

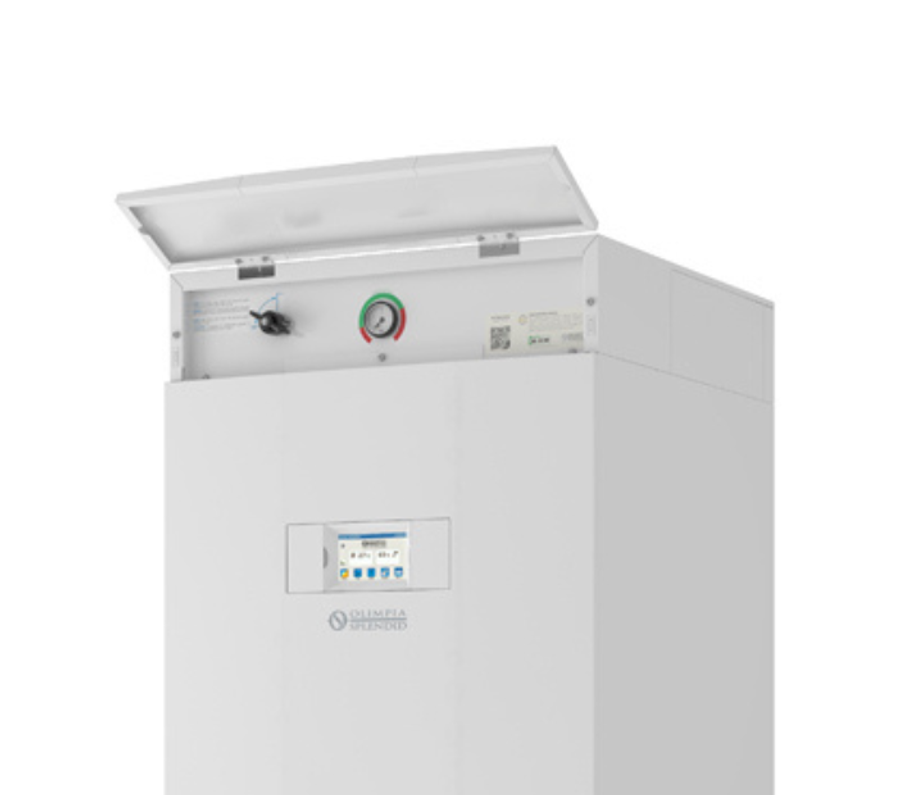

Olimpia Splendid's multi-purpose air-to-water heat pump, with R32 refrigerant, integrated 150 litre storage tank and patented Aquadue technology, stands out for its ability to provide a single solution for the simultaneous management of cooling/heating and the production of high temperature DHW (up to 75°C). The interconnected double refrigeration circuit allows, in fact, operation in parallel, without compromising the level of domestic comfort.
What's more, the possibility of storing DHW at high temperature makes it possible to reduce the volume of the storage tank by up to 30%, resulting in a smaller overall size and avoiding the periodic use of anti-legionella cycles, with the related peaks in electricity consumption.
INFORMATION
BRAND
Olimpia Splendid
PRODUCT TYPE
Heat Pumps
ENERGY EFFICIENCY
Class in average climate heating up to: a+++ (35°c) and a++ (55°c)
PRODUCTION OF DHW
Production of DHW (Domestic Hot Water) at high temperature, up to 75°C.
POWERS AVAILABLE
10 powers with refrigerant R32 single-phase (4-6-8-10-12-14-16 kW) and three-phase (12-14-16 kW).
CONFIGURABLE SET POINTS
Two set points in cooling, three set points in heating (one of which for dhw): the set points can also be selected via remote contact.
REFRIGERANT GASES
R32* for the reversible circuit dedicated to air conditioning and R134a** for the high temperature circuit dedicated to the production of DHW.
BUILT-IN 150 L HIGH EFFICIENCY STORAGE TANK
Built-in 150 L high efficiency storage tank (tower version) with an exchange battery surface equal to 1.5 m2.
INTEGRATED HEATING CABLE
Integrated heating cable to prevent freezing of water in the tray for sizes 12-14-16 and 12T-14T-16T. The heating cable intervenes during machine defrost operations or when the ambient air is below -7°C and cuts out when it exceeds 4°C (85W power consumption).
DHW MANAGEMENT
A water/water heat pump unit integrated in the internal unit supplies domestic hot water at high temperature regardless of the external climatic conditions.
DOUBLE STAGE ELECTRIC HEATING ELEMENTS AS STANDARD
Activation of single or double heating element to support the heat pump by means of a simple electronic control configuration. Each stage is activated according to the actual need for thermal power, in order to optimise electricity consumption (supplied disabled by default).
HOLIDAY AND WEEKLY PROGRAMMER
- Heating/cooling
- Dhw, night-time
ABSOLUTE CONTINUITY AVAILABILITY OF DHW
Guaranteed by the redundancy of the double refrigerantion circuit
OPERATING LIMITS
Down to -25°c, +43°c (see technical manuals for details).
ANTI-LEGIONELLA CYCLES
That can be avoided using the high temperature refrigeration cycle.
CLIMATIC CURVES
Climatic curves with external air temperature probe: two curves available, one for cooling and one for heating. The climatic curves are used to vary the temperature of the water supplying the system according to the external climatic conditions, adjusting the thermal needs of the building, in order to achieve energy savings.
FUNCTIONS
- Cooling
- Heating
-75°C DHW (Domestic Hot Water)
- Heating + DHW at a high temperature
- Cooling + DHW at a high temperature with energy recovery
75°C DOMESTIC HOT WATER
High temperature DHW storage allows a reduction of the boiler volume up to 30%, to heat bathroom heater radiators and avoids highly energyconsumpting anti-legionella cycles that are normally performed through the use of electrical resistances.
DHW AND COMFORT AT THE SAME TIME
The two interconnected refrigerator cycles allow the decoupling of the heating/cooling from the DHW production, enabling them to operate in parallel, avoiding thus interruptions in the domestic comfort supply.
DIMENSIONS DRAWING
