Jvc KW-V66bT Monitor With Dvd Receiver

KW-V66BT MONITOR WITH DVD RECEIVER

KW-V66BT MONITOR WITH DVD RECEIVER

Multimedia Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ

Jvc KW-V66bT Monitor With Dvd Receiver

INFORMATION

BRAND

Jvc

PRODUCT TYPE

Monitor With Dvd Receiver

AUDIO

- Bass Boost : Yes
- Time Alignment : Yes
- EQ : Yes (13-Band Graphic EQ)
- Preset EQ : Yes (7Preset + 3user)
- High-Pass Filter/Low-Pass Filter : Yes/Yes

Jvc KW-V66bT Monitor With Dvd Receiver

CAPACITIVE TOUCHSCREEN

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

USB

- Position : Rear
- USB Port : x 1 (High Speed)
- USB Power Supply : Yes (1.5A High Current Charging)

CD-R/RW COMPATIBLE

Yes

IPOD/IPHONE CONTROL

CarPlay[3] : Yes (via USB)

WEIGHT

- Packaging Weight : 2.7kg
- Producct Weight : 4.4 lbs. (2.0kg) Including Sleeve and Trim plate

BACK UP MEMORY

Yes

ISO CONNECTOR

Yes

RADIO TUNER

- SiriusXM Ready : Yes
- Auto Memory Entry : Yes
- Preset Stations : 20(FM:15ch, AM:5ch)
- Radio Broadcast Data System (RBDS) : Yes

VARIOUS FORMATS COMPATIBLE

Jvc KW-V66bT Monitor With Dvd Receiver

FREQUENCY RANGE

- 87.9 - 107.9MHz (FM)
- 530-1.700kHz (AM)

MAXIMUM POWER OUTPUT (FRONT & REAR)

50Wx4

FULL BANDWIDTH POWER (FRONT & REAR)

22W x 4 (Full Bandwidth Power, at less than 1% THD)

WIRELESS REMOTE CONTROL

Ready (RM-RK258 required)

STEERING REMOTE CONTROL READY

Yes

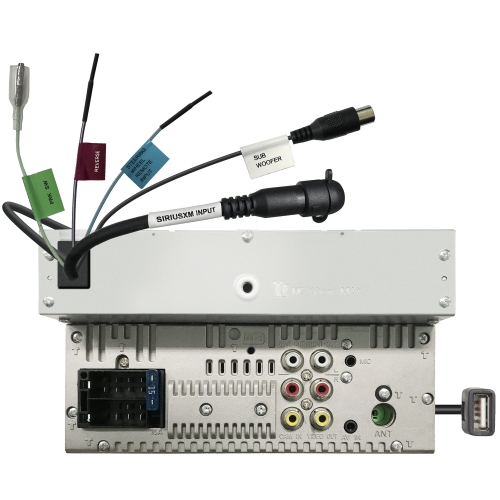

INPUTS AND OUTPUTS

- AV Input : Mini jack
- Video Out : RCA
- Rear view camera Input : Yes
- Pre-output Level/Impedance : 2.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control : Yes
- Line Output Terminals : 2Preouts (Terminal) + Sub WF (Cable)

Jvc KW-V66bT Monitor With Dvd Receiver

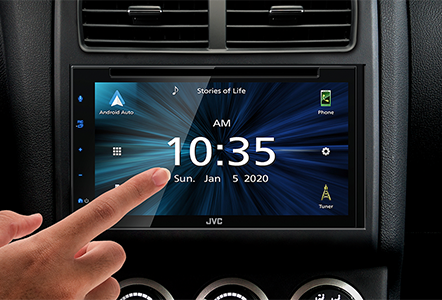

GESTURE TOUCH CONTROL

Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.

MONITOR

- Dimmer : Yes
- Touch Panel : Capacitive
- Customizable GUI : Yes
- Gesture Touch Control : Yes
- Multilingual Display : Yes[4]
- Key Illumination Color : Blue
- Screen Size : 6.8"W VGA Screen

ANDROID CONTROL

- Android Auto[2] : Yes (via USB)
- Android Music Playback : Yes (via Bluetooth(R))
- Mirroring for Android : Yes (via USB) *Need mirroring App

MEDIA PLAYBACK

MP3 Compatible with Tag, WMA Compatible with Tag, , WAV Compatible with Tag, AAC Compatible with Tag, FLAC Compatible with Tag, H.264 Compatible, WMV Compatible, MPEG 1/2 Compatible, MPEG 4 Compatible, AVI/MKV Compatible : CD / DVD / USB

13-BAND EQUALIZER

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Jvc KW-V66bT Monitor With Dvd Receiver

REMOTE CONTROL (OPTIONAL)

Remote control (RM-RK258) is optionally available.

STREAMING MUSIC

Listen to popular music applications and music stored on your device with basic audio controls.

BLUETOOTH® WIRELESS TECHNOLOGY

Android™ Bluetooth Automatic Pairing

Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

Jvc KW-V66bT Monitor With Dvd Receiver

INTERNET RADIO/DIGITAL RADIO

Ready for SiriusXM Radio (optional SiriusXM tuner required, sold separately)

Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

SMARTPHONE INTEGRATION

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

HIGH CURRENT 1.5A CHARGING

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A. Compatibility depends on the smartphone.

STEERING WHEEL REMOTE CONTROL READY

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

BLUETOOTH CONTROL

- Supported Audio Formats : AAC / SBC
- Phone Book Access Profile (PBAP) : Yes
- Alphabetical Search for Phone Book : Yes
- Built-in Bluetooth[1] : Yes (Wired-Mic included)
- Hands Free Call : Yes (HFP1.6 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP) : Yes
- Auto Pairing for iPhone/Android : Yes (Android only)
- Voice Dialing (voice recognition compatible mobile phone required) : Yes

FEATURES

TIME ALIGNMENT

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Jvc KW-V66bT Monitor With Dvd Receiver

ANDROID AUTO™ – CONNECT VIA USB

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road. Some Features, applications, and services are not available in all areas.

Jvc KW-V66bT Monitor With Dvd Receiver

MIRRORING FOR ANDROID PHONE – CONNECT VIA USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Jvc KW-V66bT Monitor With Dvd Receiver

APPLE CARPLAY™ – CONNECT VIA USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported. Some features, applications, and services are not available in all areas.
