Ventil Clima Light / Light-ecm Cassette Fan Coil Units
LIGHT / LIGHT-ECM CASSETTE FAN COIL UNITS
LIGHT / LIGHT-ECM CASSETTE FAN COIL UNITS
Cassette Fan Coil Units Pure innovation and performance.
LIGHT is the innovative cassette fan coil unit characterized by a modern and minimalist design and a perfect combination of high performance, low noise emissions and a marked ease of installation and maintenance thanks to the EasyWaySystem.
INFORMATION
CONDENSATE EVACUATION PUMP
Entrifugal type, with a useful head of 650 mm complete with non-return valve and managed by a dedicated electronic board to which a float system is combined for the control of the condensate level and alarm signaling.
BRAND
Ventilclima
PRODUCT TYPE
Exhaust fan
FILTER
Renewable filter with galvanized steel frame and polypropylene filter fabric with efficiency class G1 * / EU1 **. Alternatively, a wide range of filters with greater efficiencies are available, including G3 * / EU3 ** and G4 * / EU4 ** or the innovative electronic filter that allows complete air purification and at the same time ensures high efficiencies thanks to the minimum pressure losses. (* according to EN779 / ** according to Eurovent)
CONSTRUCTION FEATURES
Frame made of Z200 hot-dip galvanized steel sheet 1 ÷ 1.5 mm thick, externally finished with anti-condensation barrier and internally insulated with closed-cell insulation Euroclass B-s2, d0 (EN13501-1) 10mm thick. Main condensate drain basin made of high density EPS, auxiliary basin in molded ABS.
PRODUCTION
Made in Italy
COLLECTION
Light
COLOR
White
ERFORMANCE
High Performance
WATT
- 1.6 ÷ 10,9 kW
- 1.6 ÷ 11,3 kW
EASY INSTALLATION AND MAINTENANCE
Remarkable ease of installation and maintenance thanks to the EasyWaySystem which allows quick access to all the main components that require ordinary or extraordinary interventions, without having to remove the front intake panel.
NOISE
Low Noise Emissions
INSTALLATION
Ease Of Installation And Maintenance
ECM
Energy saving up to 50%
VOLUME
225 - 1536 m3/h
MAXIMUM LEVEL OF SILENCE
The LIGHT series is at the top of the range also on the subject of low noise emissions, which ensure the user that particular condition of psychophysical well-being made possible thanks to the meticulous research and development process.
ADJUSTABLE LOUVERS

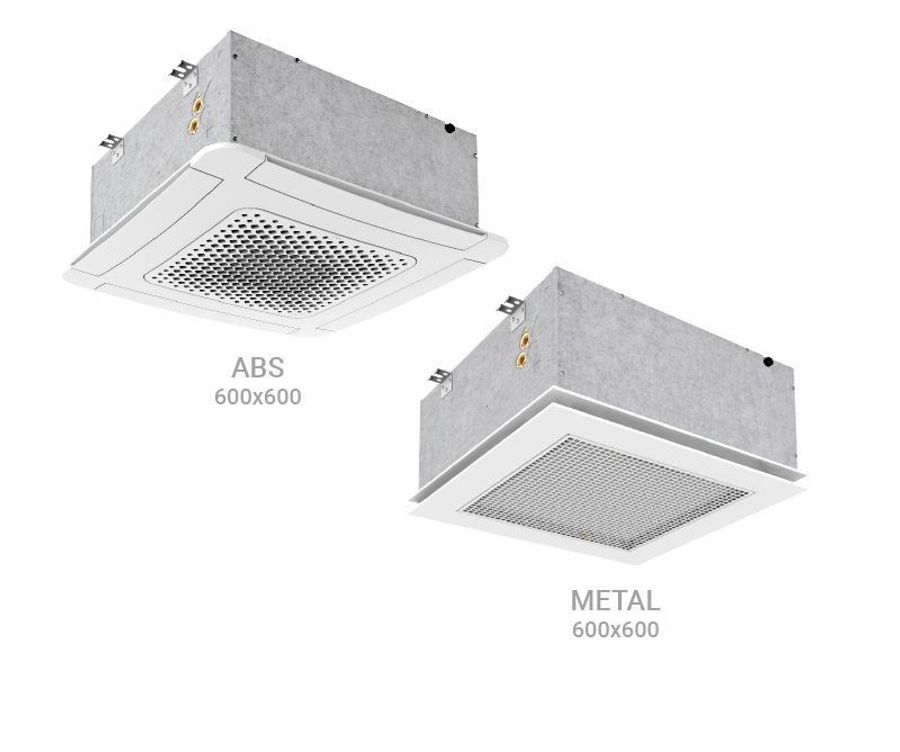

In order to guarantee perfect climate comfort control both in cooling and heating mode, the front panel in the ABS version is available in three different configurations, including the versions with motorized louvers or manual louvers.
MINIMAL DESIGN
characterized by shapes and geometries appropriately designed to guarantee a perfect combination of high performance, low sound emissions and unique environmental comfort thanks to the true Coanda effect.
INTEGRATED VALVES AND RESISTANCE
Available as an accessory also valves and electric resistances that can be integrated directly inside the unit, avoiding unnecessary heat loss, significant reduction in installation times and greater operating reliability.
DETAIL
ELECTRONIC FILTER "PURE LIFE SYSTEM"
Pure Life System consists of a two-stage filtration module that can be integrated directly into the LIGHT series, the fact that the solid particles contained in the air flow are precipitated by the action of an electric field that retains the polluting particles and microorganisms dispersed in the air, such as bacteria, viruses and spores conveyed by such particles. Through a potential difference generated between the emission and collection electrodes, the pollutants are precipitated, captured and retained by special collection grilles, obtaining healthy and completely purified air.
ANTI-STRATIFICATION EFFECT
In heating modality, the flaps are positioned automatically (automatically for the RC-A version, manually for the RC-M / NC versions) with an opening of 35°, allowing the warm air to create a downward flow, ensuring the homogenous distribution of the room temperature and avoiding the problems linked to air stratification.
COANDA EFFECT
The position of the lateral flaps, available in the ABS panel, allows maximum exploitation of the Coanda effect in summer modality, offering ideal comfort without any annoying typical cold air flow. Thanks to this detail the cold air tends to flow towards the ceiling distributing itself in a regular, gradual way inside the room, guaranteeing ideal climatic comfort without the unpleasant thermal phenomena caused by direct cold air.
VERSIONS
VIRSIONS
-Light 600x600 -Light-ecm 600x600 -Light-e 600x600 -Light 900x900 -Light-ecm 900x900 -Abs Front Panel | Light 600x600 -Metal Front Panel | Light 600x600 -Abs Front Panel | Light 900x900 -Metal Front Panel | Light 900x900
