Norsk Kleber Octo Stove
OCTO Stove
OCTO STOVE
The Octo series is one of our classics. Together with the Babina, the basic Octo model was designed by Björn Hultén in the 1980s.
INFORMATION
BRAND
Norsk Kleber
PRODUCT TYPE
Stove
MODELS
- Octo+ 110
- Octo +5
- Octo +6
WEIGHT
- Octo+ 110 : 350 kg
- Octo +5 : 400 kg
- Kube 5 : 535 kg
KUBE MODELS
All of the Octo+ models are available with or without side windows, and with a black or grey door.
LOG LENGTH
30 cm
OUTPUT
3-12 kW
DETAIL
Due to its octagonal shape, it not only has a ‘mathematical’ and calm beauty, but it is also very easy to place. It can stand against a straight wall, in the corner, between the living room and kitchen, or in fact anywhere, without losing any of its distinguished elegance.
CONNECTED
A fresh-air duct can be connected to the stove(Ø=100)
SIDE WINDOWS
The colour in the side windows is matched to the door colour.
TECNICAL DETAILS
| DISTANCE | COMBUSTIBLES | FIREWALL |
|---|---|---|
| OCTO 50 3/4/5/6 | - | - |
| Side | 35 cm | 10 cm |
| Back | 30 cm | 10 cm |
| OCTO 100 | - | - |
| Side | 35 cm | 10 cm |
| Back | 30 cm | 10 cm |
| OCTO+ 110, OCTO + 5/6 | - | - |
| w/ side windows, side | 65 cm | 40 cm |
| w/ side windows, back | 35 cm | 10 cm |
| w/o side windows, side | 40 cm | 10 cm |
| w/o side windows, back | 35 cm | 10 cm |
DIMENSIONS
OCTO+ 5
The shape of this model and the position of the side windows enable a particularly good view of the flames.
DIMENSIONS OCTO +5
- Height : 160 cm
- Width : 52 cm
- Depth : 44 cm
- Height To Centre Of Flue Outlet : 145.3 cm
OCTO+ 6
The shape of this model and the position of the side windows enable a particularly good view of the flames.
DIMENSIONS OCTO +6
- Height : 190 cm
- Width : 52 cm
- Depth : 44 cm
- Height To Centre Of Flue Outlet : 175.3 cm
- Height To Centre Of Flue Outlet : 470 kg
OCTO+ 110
A small stove that gives a good view of the flames. Available with soapstone sides or with windows on one or both sides.
DIMENSIONS OCTO+ 110
- Height : 110 cm
- Width : 50 cm
- Depth : 50 cm
- Height To Centre Of Flue Outlet : 95.3 cm

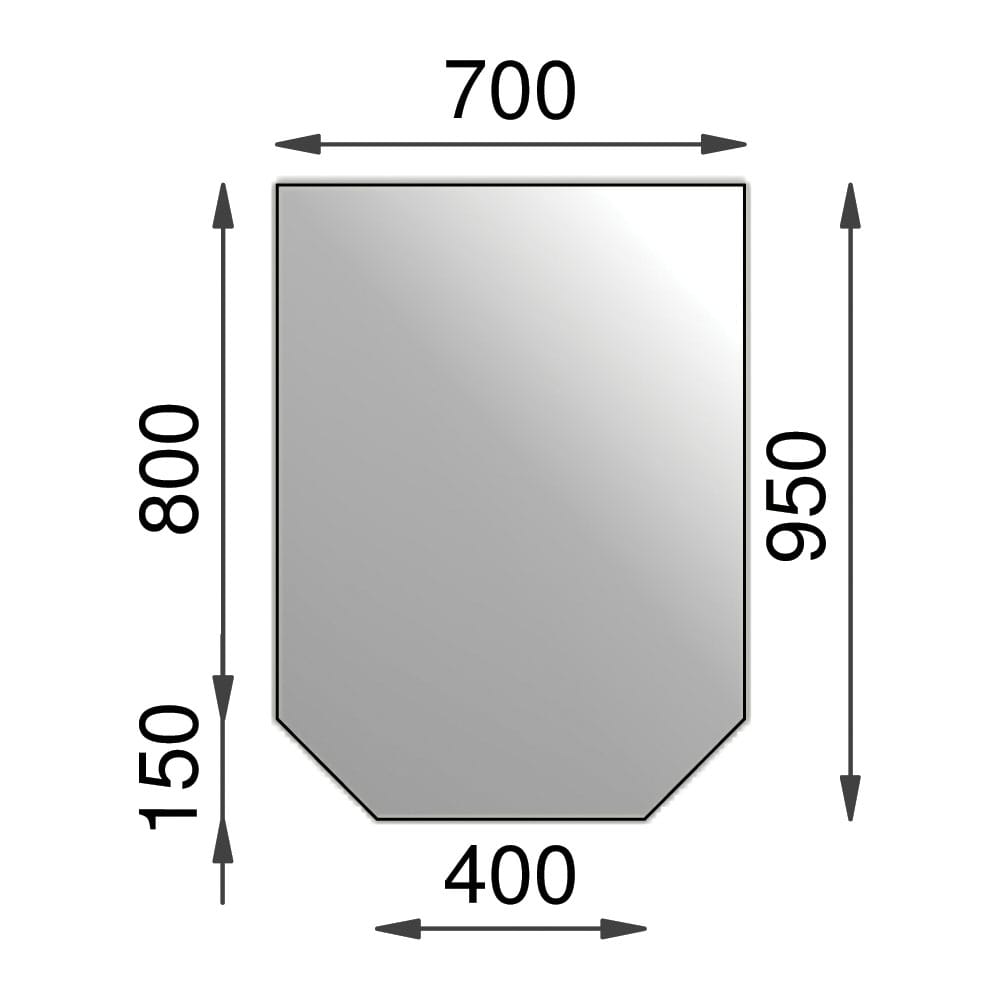

OCTO 50 / OCTO PLUSS / OCTO 100 OG 110 STRAIGHT WALL 70 X 95 CM
- Octo straight wall plate 70/95 cm
- Weight : 36 kg
- Art.no. 01-82-21 , black granite
- Art.nr. 01-82-30 , gray marble
OCTO 50 / OCTO PLUSS / OCTO 100 OG 110 CORNER 95 X 95 CM
- Weight: 51 kg
- Art.no. 01-82-20 , black granite
- Art.nr. 01-82-29 , gray marble
