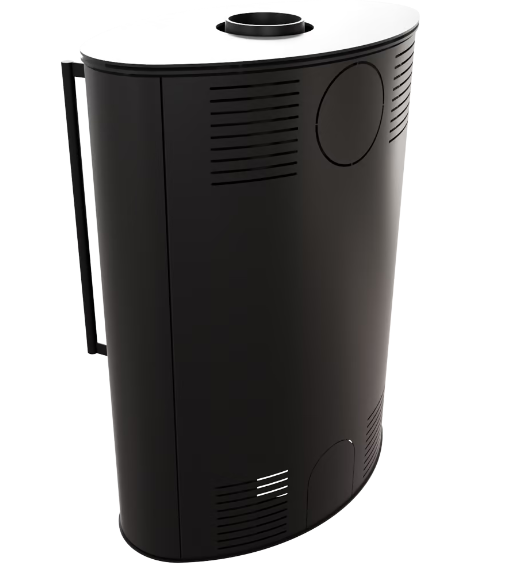

WOOD BURNING STEEL STOVE BJORN Ø 150 8KW
WOOD BURNING STEEL STOVE BJORN Ø 150 8KW
The BJORN stove is distinguished by a generous panoramic GLASS window with an aesthetically pleasing black décor, which provides a perfect view of the flames.
This not only gives it an elegant look, but also makes it an attractive decorative element.
INFORMATION
BRAND
Kratki
PRODUCT TYPE
Stove
COLLECTION
Bjorn
PHYSICAL PARAMETERS
- Width : 76.1 cm
- Depth : 46 cm
- Height : 105.2 cm
DETAILS
BJORN is ideal for those looking for a stylish finish that fits into a variety of interior designs, whether traditional, minimalist or modern. It adds charm to any room it is placed in.
RATED OUTPUT (KW)
8
MATERIALS
Steel
WE ARE CONFIDENT IN THE QUALITY OF OUR EQUIPMENT
The stove meets the requirements of the ECODESIGN.
In addition, it has been designed to meet the strict Flamme Verte environmental standards, guaranteeing high efficiency, clean combustion and reduced emissions. So you can enjoy a cosy atmosphere in your home while minimising your impact on the environment.
ENERGY CLASS
A
WEIGHT
163 kg
EAN
- Black : 5903751232100
- White : 5903751231813
ENERGY EFFICIENCY INDEX (EEI)
103.7
TECHNICAL DRAWING
TYPE OF FUEL
Seasoned Deciduous Wood (Humidity ≤20%)
FRONT TYPE
Steel Front With Bent Painted Glass
INSTALLATION
Easier stove installation thanks to the ø200mm hole in the base -Meets the criteria of the ecodesign and flamme verte
DESIGN FEATURES
- Ashpan
- Decorative Glass
- Air intake - built In
- Combustion Chamber Lining
HEATING POWER RANGE (KW)
5-11
HEATING EFFICIENCY (%)
78.4
CERTIFICATIONS / COMPLIANCE
Meets requirements : Ecodesign, 7* Flamme Verte, Designed for recuperation, KRATKI PRO
SELF CLOSURE
No
DOOR OPENING DIRECTION
Left
DIAMETER
- Flue Outlet : 150 mm
- Air Intake : 125 mm
COLORS
- Black
- White
ENERGETIC EFFICIENCY
- Emisja CO (mg/m3) : 1468
- Emisja NOx (mg/Nm3) : 76
- Emisja OGC (mg/Nm3) : 100
- Dust emission (mg/Nm3) : 40
- Flue gases mass flow rate (g/s) : 8
- Seasonal Heating efficiency (%) : 68.4
- CO emissions (at 13% O 2 ) ≤ given in % : 0.117
- Moc cieplna do ogrzewania pomieszczeń (kW) : 8
EXHAUST GAS TEMPERATURE (℃)
255
MAX LENGTH OF LOGS (CM)
50
ADVANTAGES
-Intuitive air control -Cast iron grate and steel ash pan -Designed for homes with recuperation -Clean glass system to keep the glass clean -Heat-resistant glazing with a temperature resistance of up to 600°c -Adjustable feet to compensate for uneven floor surfaces and level the stove -Comfortable door opening thanks to a modern and durable mechanism
-A handle in the form of a railing provides a comfortable grip over its entire length -The generous glass panoramic glass with aesthetically pleasing black décor gives the stove an elegant appearance -Longer temperature maintenance due to lining of the combustion chamber with termotec accumulation material -Deepened combustion chamber accommodates more wood and prevents ash from spilling into the room when refuelling -The triple system of airing the combustion chamber contributes to the high efficiency of the combustion process
-A triple system of combustion chamber aeration contributes to the high efficiency of the combustion process, the extension of the combustion flow through a system of two deflectors and a flue outlet screen contributes to lowering the temperature of the fumes, which translates into greater effectiveness of the combustion process and lower chimney losses -Inspection doors open on the push-to-open principle -Air intake via an external spigot (can be connected from behind or underneath) with a diameter of ø 125, -The stove is coated with a specially designed paint mixture with increased scratch resistance and uniform and smooth texture -Possibilitý to connect the flue outlet either from the top or the back of the unit
