Steel wood stove ROLLO High
The high version of the ROLLO steel stove combines functionality and universal design, making it an attractive element in interior design.
The ROLLO stove creates a cosy atmosphere in the home thanks to the possibility of freely watching the flames.
It easily adapts to different interior styles, from modern to rustic. This flexibility allows the stove to be integrated into various design concepts.
ROLLO meets the requirements of the ECO-design and the strict German BlmschV II standard. This is a guarantee of high efficiency, low emissions and a safe combustion process.
The stove can be additionally equipped with accumulation accessories (cast iron or concrete discs) or a water cap. Dedicated products are available as related products for purchase after adding the stove to your shopping basket.
The stove is equipped with TERMOTEC storage material. It ensures efficient combustion and long-lasting heat retention, resulting in significant energy savings. The clean glass system keeps the glass clean, allowing you to enjoy the view of the fire without the need for frequent cleaning. In addition, the door closing mechanism ensures a tight and safe operation, making the ROLLO stove not only efficient but also easy to use. The ideal solution for those who appreciate both functionality and aesthetics.
INFORMATION
FRONT TYPE
Steel front with bent painted glass
PRODUCT TYPE
Stove
BRAND
Kratki
TYPE OF FUEL
Seasoned deciduous wood (humidity ≤20%)

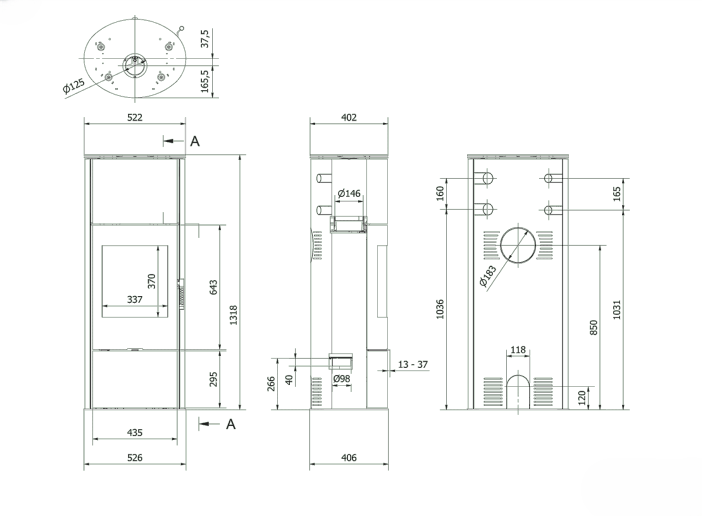

TECHNICAL DRAWING
EAN
5903751233442
SKU
Rollo/W
WEIGHT
133 kg
PHYSICAL PARAMETERS
- Width : 52.6 cm
- Depth : 40.2cm
- Height : 97.6 cm
RATED OUTPUT (KW)
7
HEATING EFFICIENCY (%)
80
CERTIFICATIONS / COMPLIANCE
Meets requirements : BImSchV 2, Ecodesign, Designed for recuperation
SEASONAL HEATING EFFICIENCY (%)
70
CO EMISSIONS (AT 13% O 2 ) ≤ GIVEN IN %
0.05
EXHAUST GAS TEMPERATURE (℃)
280
FLUE OUTLET DIAMETER
150 mm
MATERIALS
Steel
ENERGY CLASS
A
AIR INTAKE DIAMETER
100 mm
COLORS
MOC CIEPLNA DO OGRZEWANIA POMIESZCZEŃ (KW)
7
ENERGY CLASS
A
SELF CLOSURE
Yes
DUST EMISSION (MG/NM3)
14
MAX LENGTH OF LOGS (CM)
25
ENERGY EFFICIENCY INDEX (EEI)
106
EMISJA
- Emisja CO (mg/m3) : 555
- Emisja NOx (mg/N m3) : 103
- Emisja OGC (mg/Nm3) : 63
ADVANTAGES
-Longer temperature maintenance due to lining the combustion chamber with the termotec accumulation material
-Intuitive Adjustment Of The Air Supply -Perforated handle design for natural cooling -Cast iron grate and easy access to the steel ash pan -Clean glass system to keep the glass clean -Heat-resistant glazing with a temperature resistance of up to 600°c -Locking mechanism prevents the stove door from accidentally being left open
-Triple airing system of the combustion chamber contributes to the high efficiency of the combustion process -Deflector to extend the flue gas path for optimal energy utilisation -Air intake via an external spigot (can be connected from behind or underneath), diameter fi 100 -The stove is coated with a specially designed paint blend that is highly resistant to scratches and has a uniform and smooth texture, the paint is resistant to high temperatures -Top plate made of 5 mm thick steel -Complies with ecodesign criteria and the strict german standard blmschv ii -Designed for use in homes with recuperation -Possibility to buy accumulation accessories (cast iron or concrete discs) or heat exchanger.
POSSIBLE ACCUMULATION OPTIONS
CONCRETE ACCUMULATION DISCS - 6 PCS. 3 LAYERS
The accumulation disks are made of concrete, which can absorb a large amount of heat due to its physical properties. While the stove is active and generating heat, the concrete discs heat up, storing thermal energy within them. At the end of the burning process, when the fire goes out, the accumulated heat is gradually released into the environment. The heat release time is approximately 3 hours after extinguishing. Easy installation on the stove body around the flue pipe. Heat recovery implemented directly from the stove body and flue pipe.
CAST IRON ACCUMULATION DISCS 3 PCS.
They make it possible to significantly reduce heat loss that would normally escape with the flue gases to the environment. Properly designed, they increase the contact surface with the flue gases, resulting in more efficient heat transfer.
The use of discs not only contributes to the stove's thermal efficiency, but also allows heat to be stored, which can be gradually released into the environment up to 3 hours after the fire has gone out. This allows you to enjoy the heat for a longer period of time, which is particularly important on cold days. Installation directly on the flue stub. Easy installation of the flue pipes to the outlet spigot of the storage set.
WATER EXCHANGER
The water exchanger is a state-of-the-art device designed to recover heat from the flue gases that would normally escape from your home through the chimney. This innovative solution allows the lost heat to be used to heat water, increasing the energy efficiency of your home without the need for additional fuel consumption. Recovered heat can be used to heat radiators or domestic water, making it an ideal alternative for those looking for ways to reduce energy bills.
The water exchanger, made from 4mm thick steel, is designed for use in central heating systems. Its ability to operate in a closed system, with a maximum pressure of up to 2 bar, as well as in an open system, further increases its versatility and adaptability to different installation needs.
