Cata IB 6303 BK Hob
IB 6303 BK HOB
IB 6303 BK HOB
Cod. 08063112
9 adjustable power levels + Booster.
information
PRODUCT TYPE
Hob
PRODUCTION
Made in Spain
EAN
8422248109451
ENERGY CONSUMPTION [KWH/YEAR
137
CODE
08063112
MODEL
IB 6303 BK

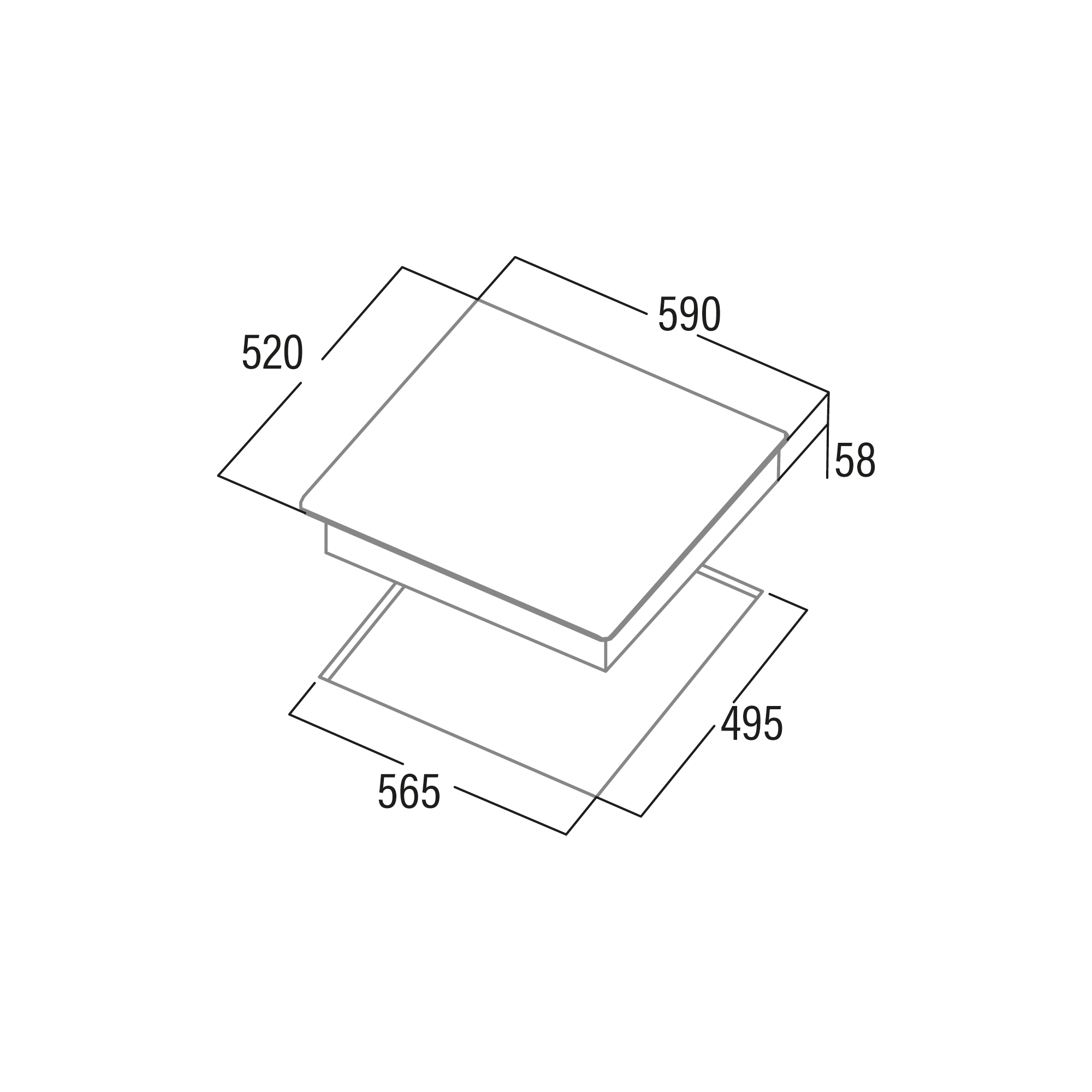

BUILT-IN DIMENSIONS
- Built-in Height : 565 mm
- Built-in Depth : 495 mm
DIMENSIONS
- Height : 58 mm
- Width : 590 mm
- Depth : 520 mm
COOKING ZONES
3
SUBFAMILY
Induction
RIGHT REAR ZONE CONSUMPTION
180.8 (Wh/kg)
RIGHT REAR ZONE: BOOSTER
3 (kW)
FIXING SYSTEM
Quick-Fix System
FINISHING
- Colour : Black
- Aesthetic : Rounded
VENTILATION SLOT
5 mm
RIGHT REAR ZONE: POWER (KW)
2.3
3 COOKING AREAS
- Right
- Front Left
- Rear Left
ZONE
- Front left zone Power : 2.3 kW
- Front left zone Booster : 2.6 kW
- Front left zone Consumption : 184.1 Wh/kg
- Front left zone Diameter : 210 mm
- Left rear zone Power : 1.2 kW
- Left rear zone Diameter : 160 mm
- Left rear zone Booster : 1.5 kW
- Left reAar zone Consumption : 181.7 Wh/kg
NOMINAL VOLTAGE (V)
220-240
MAINS FREQUENCY (HZ)
50-60
MAX PRODUCT POWER
7.1 (kW)
CONTROL TYPE
Touch
SECURITY
- Safety lock : Yes
- Residual heat indicator : Yes
- Automatic pan detection : Yes
- Protection against liquid spillage : Yes
TOTAL POWER
Total power 7.1kW
POWER LEVELS
9 + Booster
TIMER
Yes
POWER SELECTION (+/-)
Centralized
WIDE
59 cm wide
AUTOMATIC SAFETY SWITCH-OF
Automatic safety switch-of : Yes
ENERGY CONSUMPTION OF THE HOB (WH/KG)
182.2
DETAIL
-Countdown alarm -Automatic pan detection -Touch Control with acoustic warning -9 adjustable power levels + Booster
LOCK
Safety Lock
FUNCTION
Timer Function For Each Area
RIGHT REAR ZONE: DIAMETER
280 mm
HEAT
Residual Heat Indicato
