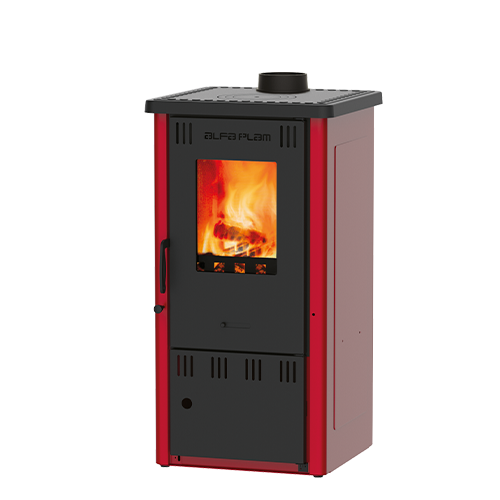

OPIS STOVE

The stove is intended for occasional heating of closed rooms, with closed firebox doors.

INFORMATION

PRDUCT TYPE

Stove

BRAND

AlfaPalm

COLLECTION

Opis

UTILIZATION RATE

84 %

DETAIL

Made of sheet metal positions, with a grille, tertiary air guide and cast iron plate. The firebox is lined with replaceable fireclay boards. The outer coating is enameled or painted. The opening for adjusting the air needed for ignition and combustion is located on the firebox door. There are tertiary air openings on the back of the furnace.

PRODUCTION

Made in Germany

USE

Heating

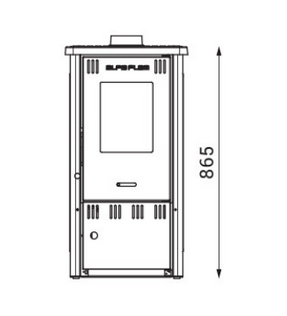

STOVE DIMENSIONS

-Width : 455 mm -Height : 865 mm  -Depth : 442 mm

Alfaplam Opis Stove
Alfaplam Opis Stove
Alfaplam Opis Stove

ENERGY EFFICIENCY CLASS

A+

THE DIAMETER OF THE FLUE EXTENSION

120 mm

POWER

6.5 kW

VOLUME OF HEATING

163 m3

WEIGHT

- Net Weight : 67 kg
- Gross Weight : 79 kg

MAXIMUM HEATING SURFACE

65 m2

DIMENSIONS OF THE FIREBOX

- Width : 455 mm
- Height : 865 mm
- Depth : 442 mm

COLOURS

Alfaplam Opis Stove
Red
Alfaplam Opis Stove
Black
Alfaplam Opis Stove
Beige
