Arada Ecoburn 5 (S3) Stove

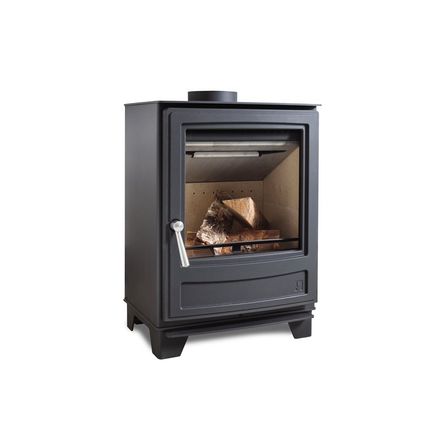

ECOBURN 5 (S3) Stove
ECOBURN 5 (S3) STOVE
4.9kW Multi fuel (wood or solid smokeless fuel) stove
The Ecoburn range comprises three models each featuring the latest and best new Arada heating technology that combines a traditional stove appearance with Ecodesign Ready credentials.
INFORMATION
GUARANTEE
Lifetime guarantee
FLUE OUTLET
127mm
PRODUCTION
Made in Serbia
PRDUCT TYPE
Stove
WEIGHT GROSS (PACKED WEIGHT)
87.4 Kg
DIRECT AIR
Direct air compatible
PAINT
Non-smoker paint
STOVE BODY TYPE
Yes
LATERAL POSITION
Centre
SPIGOT DIAMETER
102 mm
DOWNLOADS
↓ Declaration of Performance
↓ UK Energy Efficiency Rating Label
↓ Dry Stove Installation Guide (BK545-r14)
↓ Product Fiche and Technical Specification (BK999)
↓ Declaration of Conformity Farringdon Small Eco UKCA
↓ Solid Fuel / Heat Shield / Direct Air Kits combined instructions
↓ Optional Stand / Log store fitting guide (BK748-r2)
↓ Declaration of Conformity Ecoburn 5 (S3) UKCA
THROAT PLATE
Stainless steel ash pan and throat plate
DIMENSIONS
- Width : 453 mm
- Height : 617 mm
- Depth :410 mm
OUTPUT
4.9 kW (Solid)
ENERGY RATING
D (Solid) A (Wood)
FLUE DIAMETER
127 mm
ENERGY EFFICIENCY INDEX
106
MAX HEARTH TEMP
- A : 53.9°C
- B : 51°C
- C : 50.9 °C
HEIGHT FROM FLOOR
123.5 mm
HEIGHT TO CENTRE OF REAR FLUE
481 mm
TOTAL HEIGHT
-Total height on stand : 200mm
-Total height on log store : 400 mm -Total height onrear flue : 481mm
HEIGHT (EXC STANDARD FEET)
538.5 mm
NET WEIGHT (UNPACKED)
76.5 Kg
EPTH FROM BACK TO CENTRE OF TOP FLUE
134 mm
SUITABLE FOR NON-COMBUSTIBLE 12MM HEARTH
Yes
SUITABLE FOR SMOKE CONTROL AREAS
Yes
DIRECT HEAT OUTPUT (WOOD)
4.9 kW
PRODUCT CODE
ECB5-53
GUARANTEE
Lifetime guarantee
STOVE BODY TYPE
Freestanding
SIDE
- A : 550 mm
- B : 525 mm
- C : 500 mm
REAR
- A : 700 mm
- B : 350 mm
- C : 75 mm
SUITABLE FOR SMOKE CONTROL AREAS
Yes
ENERGY EFFICIENCY CLASS (WOOD)
A
ENERGY EFFICIENCY INDEX (WOOD)
106
THE USEFUL ENERGY EFFICIENCY AT NOMINAL HEAT OUTPUT AND AT MINIMUM LOAD (WOOD)
79.8 %
DETAIL
Available in 4.9kw and 7kW outputs, and also a 4.9kW Widescreen option with large door glass with a beautiful flame view. Regardless of which option you choose, each model is a stylish and easy-to-use heating companion for the home.
FEATURE
- Lifetime guarantee
- Non-smoker paint
- Direct air compatible
- Externally controlled riddling grate
- Top or rear 127mm (5in) flue outlet
- Height adjusting legs as standard
- Stainless steel ash pan and throat plate
- Preheated airwash system for clean glass
- Optional Solid fuel kit for optimal solid smokeless fuel burning
- Optional rear heat shield for closer positioning to combustibles
- Better than Ecodesign standards when burning wood or solid fuel
PERFORMANCE—WOOD & SOLID FUEL
PERFORMANCE—WOOD & SOLID FUEL
| PROPERTIES | WOOD FUEL | SOLID FUEL |
|---|---|---|
| Energy Efficiency Class | A | D |
| Nett Efficiency | 79.8 % | 82.3 % |
| Nominal Output | 4.9 kW | 4.9 kW |
| Mean Co Emission(@13% O2) | 0.11 % | 0.1 % |
| Mean Co2 Emission(@13% O2) | 9.5 % | 10.6 % |
| DIN+ particulate | 27 Nmg/m3 | 5 Nmg/m3 |
| Mean NOx Emission(@13% O2) | 95 Nmg/m3 | 94 Nmg/m3 |
| Mean OGC Emission(@13% O2) | 92 Nmg/m3 | 5 Nmg/m3 |
| Flue Gas Mass Flow | 4.7 g/s | 3.5 g/s |
| Flue Gas Temperature | 255 °C | 254 °C |
| Typical fuel load to achieve ratednominal heat output per hour | 1.17 (Seasoned hardwood) | 0.69 kWh/kg(MSF Maxibrite) |
COLOR OPTIONS
ORIGINAL
METALLICS
THE BOLD EDIT
-Flamingo -Miami -Peapod
-Rauincoat
NEW THE EARTH COLLECTION
