Vents Arc Is an Inteligent Low Fan For Exhaust Ventilation

Vents Series Vents Arc Fan

INFORMATION

BRAND

Vents

PRODUCT TYPE

Arc

Vents Series Vents Arc Fan

MOTOR TYPE

DC

TIMER

Turn off timer

VENTS ARC WHITE/BLACK

-Maximum Airflow : 140 m3/h
-Sound pressure level LpA at 3 m : 28 dB(A)
-Connected air duct size : 100/125 mm

REPLACEABLE SPIGOTS

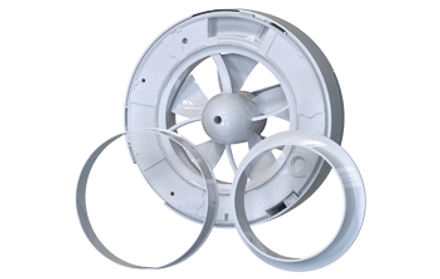

Due to replaceable spigots the fan is suitable for mounting with Ø100 or Ø125 mm air ducts.

Vents Series Vents Arc Fan

FREQUENCY [HZ]

50-60

VOLTAGE [V]

100-240

POWER SUPPLY

Besides, the fan is connected to a DC 12 V power supply, which allows to install it even on yachts and motorhomes.

WATER PROTECTION

High water protection level allows for the fan to be installed over the shower.

Vents Series Vents Arc Fan

MOTION

Motion sensor

CONTROL

Built-in control panel

CONTROL FUNCTIONS

Intelligent integrated control functions allow to adjust personal settings for the most balanced microclimate

ENERGY CONSUMPTION

The DC motor ensures a low energy consumption level of 2.7 W only, even at maximum speed.

UNIQUE IMPELLER

The unique impeller shape and modern DC motor ensure both extremely quiet operation and high performance.

IMPELLER TYPE

Axial

COLORS AVAILABLE

Black and white design colors available.

MODES IS AVAILABLE

A wide range of operating modes is available for high comfort.

EASE OF USE

Ease of use: the motor unit and the impeller can be easily removed with no special tools necessary.

Vents Series Vents Arc Fan

LINEUP VENTS ARC

- Timer : Yes
- Motion sensor : yes
- Humidity sensor : yes
- Temperature sensor : yes

MOTOR

-Reliable motor on ball bearings with as low power consumption as 2.7 W at maximum speed.-The bearings are maintenance-free and are filled with grease for the whole motor service life. -The motor is equipped with overheating protection.

APPLICATION

Extremely quiet exhaust fan with stylish design for high comfort level in shower rooms, bathrooms, kitchens and other residential premises.
-Intelligent integrated control functions allow to adjust personal settings for the most balanced microclimate. -Wall or ceiling mounting.

Vents Series Vents Arc Fan

DESIGN

-Specially designed motor on ball bearings and aerodynamically optimized impeller shape provide super silent operation at only 0.9 dBA, and high performance.  -The bearings are maintenance-free and are filled with grease for the whole motor service life. -The motor is equipped with overheating protection. -The fan has IP44 ingress protection rating and can be installed in Zone 1 of bathrooms.

TECHNICAL DRAWING

DIMENSION

Vents Series Vents Arc Fan

AERODYNAMIC DATA

Vents Series Vents Arc Fan

FEATURE

MOTION SENSOR

It is triggered by detecting motion within its operational zone.

Vents Series Vents Arc Fan
Vents Series Vents Arc Fan

TEMPERATURE SENSOR

It is triggered by a change in indoor air temperature when it reaches 28 °С, and turns off at a temperature of 24 °C.

TIMER
Turn-on delay timer is set at 30 sec. It is triggered by the lighting sensor or humidity sensor. Turn-off delay timer is set at 15 minutes and is always triggered by a motion, lighting or humidity sensor.

Vents Series Vents Arc Fan

HUMIDITY SENSOR

Humidity sensor autonomously selects the optimum humidity level for the room in which it is installed. The fan's operation algorithm is selected based on analyzing the statistical data of the indoor humidity level.

Vents Series Vents Arc Fan

LIGHTING SENSOR

The lighting sensor works autonomously. It collects statistical data about the natural indoor light level and is triggered by an abrupt change in the light level. Daily natural light level changes do not trigger the sensor.

Vents Series Vents Arc Fan

OPERATION MODES

Vents Series Vents Arc Fan

MODE 7

The Fan Is In Standby Mode; If The Heat Sensor Is Triggered, The Fan Speed Is Changed To 90 M³/h.

MODE 8

The Fan Is In Standby Mode; If The Humidity Sensor Is Triggered, The Fan Starts Operating At 115 M³/h.

Vents Series Vents Arc Fan
Vents Series Vents Arc Fan

MODE 3

The Fan Works In Permanent Ventilation Mode At A Speed Of 40 M³/h; If The Humidity Sensor Is Triggered, The Fan Speed Is Changed To 115 M³/h.

MODE 4

The Fan Works In Permanent Ventilation Mode At A Speed Of 60 M³/h; If The Humidity Sensor Is Triggered, The Fan Speed Is Changed To 115 M³/h.

Vents Series Vents Arc Fan
Vents Series Vents Arc Fan

MODE 5

The Fan Is In Standby Mode; It Is Activated By A Signal From The Triggered Motion Or Lighting Sensor And Operates At 60 M³/h; If The Humidity Sensor Is Triggered, The Fan Speed Changes To 90 M³/h.

Vents Series Vents Arc Fan

MODE 1

The Fan Works In Permanent Ventilation Mode At A Speed Of 20 M³/h; Once The Motion Sensor Is Triggered, The Fan Speed Is Changed To 60 M³/h, And If The Humidity Sensor Is Triggered, The Fan Operates At 90 M³/h.

MODE 2

The Fan Works In Permanent Ventilation Mode At A Speed Of 40 M³/h. Once Either The Motion Sensor Or Light Sensor Is Triggered, The Fan Speed Is Changed To 60 M³/h, And If The Humidity Sensor Is Triggered, The Fan Operates At 90 M³/h.

Vents Series Vents Arc Fan

MODE 6

The Fan Works In Interval Ventilation Mode (30 Minutes Of Operation Every 12 Hours) At A Speed Of 20 M³/h; If The Motion Or Lighting Sensor Is Triggered, The Fan Speed Is Changed To 60 M³/h And If The Humidity Sensor Is Triggered, Fan Speed Changes To 90 M³/h.
