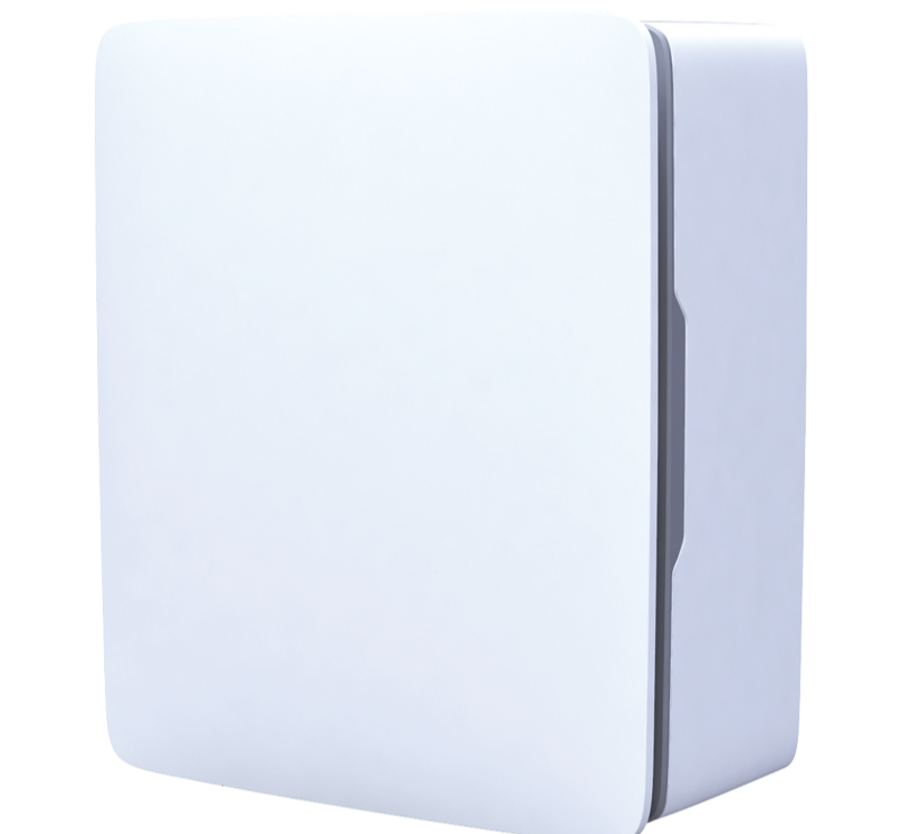

Vents Vents Fantom Residential Axial Fans

VENTS FANTOM RESIDENTIAL AXIAL FANS

Vents Vents Fantom Residential Axial Fans

VENTS FANTOM RESIDENTIAL AXIAL FANS

Fantom centrifugal extract fans for high-resistance air duct systems

Centrifugal impeller of a unique design exerts high pressure, enabling operation in air ducts up to 8 times longer compared to a classic axial one, while also ensuring resistance to pressure differences in ventilation systems.

INFORMATION

BRAND

Vents

PRODUCT TYPE

Axial Fan

SFP

- Min. : 0.72 W/l/s
- Max : 0.85 W/l/s

SOUND PRESSURE LEVEL

- Min. : 120 dBA
- Max : 36 dBA

 DIMENSIONS

- L1 : 37 mm
- Width : 215 mm
- Height : 256 mm
- Length  : 115 mm

Vents Vents Fantom Residential Axial Fans

FREQUENCY [HZ]

50

VOLTAGE

220-240 V

MOUNTING FEATURES

Flexible duct application is recommended in case of remote location of the ventilation shaft. The air duct is connected to the fan exhaust flange through a clamp.

- Suitable for ceiling mounting.
- Fixed to wall by self-tapping screws.

USE

- Flats
- Commercial areas
- Bathrooms and kitchens
- Private houses and cottages

Vents Vents Fantom Residential Axial Fans

CASING MATERIAL

ABS Plastic

MOTOR TYPE

AC

POWER CONSUMPTION

- Min. : 11 W
- Max : 26 W

CURRENT

- Min. : 0.081 [A]
- Max : 0.116 [A]

DESIGN

-Protection rating IP45. -Modern design and aesthetic look. -The casing and the impeller are made of high-quality durable ABS plastic, UV resistant. -The centrifugal fan impeller has forward-curved blades for high pressure and low noise levels. -The easy to use removable front panel and dishwasher washable filter element protects the fan internal components against dust penetration.

Vents Vents Fantom Residential Axial Fans

PRODUCTION

Made in Ukraine

MAXIMUM AIRFLOW

110 m3/h

HIGH HUMIDITY

High water ingress protection rating IP45 allows to install the fan in rooms with high humidity.

IP

IP45

FILTER

The filter can be washed in a dishwasher.

MOTOR

- Equipped with overheating protection.
- Reliable and low-watt single-phase electric motor.
- Designed for continuous operation and requires no maintenance.
- The fan is equipped with ball bearings which are greased for full time of work and don’t need any maintains.

APPLICATION

-Continuous or periodic exhaust ventilation of bathroom, showers and other utility spaces.
-Ventilation shaft mounting or duct connection. -Designed for high-resistance ventilation duct systems. -Compatible with Ø 100 mm air ducts.

MAXIMUM AIR CAPACITY

- Min. : 55 m3 /h
- Max : 110 m3 /h

MAXIMUM AIR CAPACITY

- Min. : 15 [l/s]
- Max : 31 [l/s]

DETAIL

The impeller's shape ensures low noise and exerts high pressure in long air ducts. The back valve prevents drafts from occurring in the room.

AERODYNAMIC DATA

Vents Vents Fantom Residential Axial Fans

ADVANTAGES OF THE FAN

Vents Vents Fantom Residential Axial Fans

MULTIPURPOSE USE

The fan is rated for both continuous and interval operation and is maintenance-free. The unit is designed for ceiling and wall mounting.

Vents Vents Fantom Residential Axial Fans

INNOVATION

The centrifugal impeller of unique design exerts high pressure, enabling air to traverse air ducts 8 times longer than the classic axial impeller, and ensures resistance to pressure fluctuations in ventilation systems.

Vents Vents Fantom Residential Axial Fans

RELIABILITY

The motor is equipped with overheating protection and is maintenance-free for the whole motor service life. The fan’s impeller and casing are made of durable high-quality UV-resistant plastic.

MODIFICATIONS

FANTOM PRES T

The fan is equipped with a turn-on delay timer (1, 2 or 5 minutes), turn-off delay timer (5, 15 or 30 minutes) and an interval timer (30 minutes every 4 hours).

Upon turning on a switch - for example, a lighting switch - the fan switches to a higher speed in the time preset by the turn-off delay timer. When the interval timer is activated, the fan speed is maximized for 30 min. every 4 hours. The triggered sensors remain triggered.

Vents Vents Fantom Residential Axial Fans

FANTOM PRES TP

The fan is equipped with a turn-on delay timer (1, 2 or 5 minutes), turn-off delay timer (5, 15 or 30 minutes) an interval timer (30 minutes every 4 hours) and a microwave motion sensor operating through the front panel.

If the motion sensor is triggered, the fan switches to a higher speed in the time preset by the turn-off delay timer. When motion is no longer detected, the fan continues to work at a high speed during the time preset by the turn-off delay timer.

Vents Vents Fantom Residential Axial Fans

FANTOM PRES TH

The fan is equipped with a turn-on delay timer (1, 2 or 5 minutes), turn-off delay timer (5, 15 or 30 minutes) an interval timer (30 minutes every 4 hours) and a humidity sensor. The humidity sensor has 2 modes of operation.

-Manual mode : allows to set the humidity level in the range of 60 %, 70%, 80 % and 90%. If this threshold is exceeded, the fan is turned on, or switched to a higher speed.

-Auto – intelligent humidity control. This mode provides for humidity level change in automatic mode. The fan autonomously selects the optimum humidity level for the room, in which it is installed. The choice of the fan operation algorithm is determined based on analyzing the indoor air hymidity level statistics.
