Sony HDC-5500V Camera

HDC-5500V CAMERA

Sony HDC-5500V Camera

HDC-5500V CAMERA

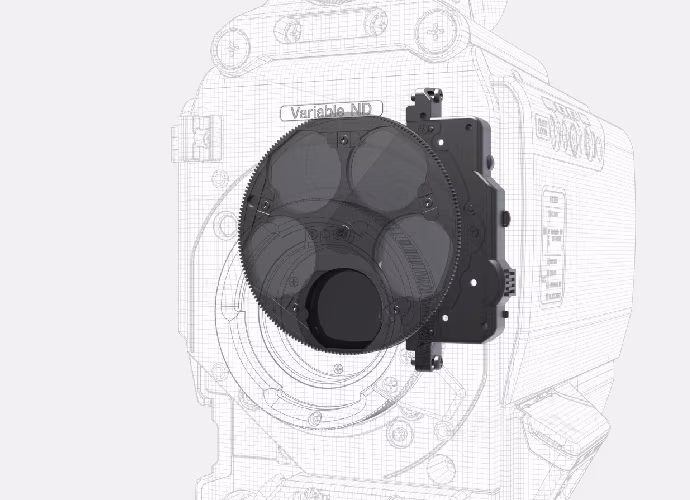

Expand your creative horizons to new resolutions with HDC-5500V’s pre-installed variable ND filter for smooth handling and precise shooting and simultaneous HDR and SDR production.

FEATURES

SIMPLIFIED BRIGHTNESS CONTROL WITH VIRTUAL IRIS

Take complete control over your exposure settings with our camera system’s Virtual IRIS, enabling effortless adjustments to brightness between les IRIS/variable ND/master GAIN using a single joystick. Capture stunning visuals in any lighting condition with precise and seamless control, while taking advantage of the intuitiveness of our user-friendly interface.

Sony HDC-5500V Camera

4K 4X HFR CAPABILITY

When used with HDCU-5000, the HDC-5000 Series supports the 4K 4x HFR option. Users can replay slow motion in 4K 4x*. HDC-5500V also supports parallel advertisements by simultaneously capturing 4 different advertisements on LED, which allows broadcasters to reach multiple audiences with tailor-made content at the same time around the globe. Additionally, the 4X parallel advertisements support enables broadcasters to engage with different sponsors simultaneously.

Sony HDC-5500V Camera

UNIFIED INTERCOM PANEL

We are delighted to introduce the newly integrated design of the INTERCOM panel, which boasts controllable PGM3, TRACKER VR, and earphone MIC across all models, ensuring a consistent layout for customers worldwide. The controllable settings encompass PROD/ENG/OFF, while TRACKER and PGM3 can be easily assigned to different functions.

Sony HDC-5500V Camera

PRE-INSTALLED VF SLIDE MECHANISM

With the pre-installed viewfinder slide mechanism, camera operators can achieve improved functionality by minimising their body movements during panning. This feature is especially useful in cramped spaces like tracked dollys, stadium platforms, and scaffolding, where limited mobility can hinder the desired shots.

The pre-installed slide mechanism enhances shooting flexibility and usability, with a smoothly-sliding viewfinder that can be moved closer to the axis of tripod rotation to reduce changes in the viewing angle, making it perfect for various shooting environments.

Sony HDC-5500V Camera

SIMPLE SOLUTION FOR IP REMOTE PRODUCTION

Adding the optional HDCE-TX50 IP camera extension adaptor allows the HDC-5500V to output ST 2110 signals directly without requiring a separate CCU (camera control unit), simplifying connection to an IP-based remote production system and supporting JPEG XS capability.

Sony HDC-5500V Camera

Disclaimer: 4K 4x HFR is not available on IP.

RECORDING AND REAL TIME NETWORK TRANSFER

With the recording option HKCU-REC55, the HDCU-5500 can record the live feed inside CCU. The file can be transferred to USB SSD or network storage in real-time while recording is still in progress.

Sony HDC-5500V Camera

By the time the shooting operation is complete, the file is already transferred to portable SSD or NAS.

PRE-INSTALLED VF SLIDE MECHANISM

With the pre-installed viewfinder slide mechanism, camera operators can achieve improved functionality by minimising their body movements during panning. This feature is especially useful in cramped spaces like tracked dollys, stadium platforms, and scaffolding, where limited mobility can hinder the desired shots.

Sony HDC-5500V Camera

The pre-installed slide mechanism enhances shooting flexibility and usability, with a smoothly-sliding viewfinder that can be moved closer to the axis of tripod rotation to reduce changes in the viewing angle, making it perfect for various shooting environments.

INFORMATION

BRAND

Sony

PRODUCT TYPE

Camera

EFFECTIVE RESOLUTION (H X V)

- HD : 1920 × 1080
- QFHD : 3840 × 2160

Sony HDC-5500V Camera

DETAIL

HDC-5500V is a 2/3-inch 4K 3-CMOS sensor portable system camera with direct 4K output and digital triax or wireless operation with a choice of optional outside panels for added versatility.

OPERATING TEMPERATURE

-20°C to +45°C (-4°F to 113°F)

STORAGE TEMPERATURE

-20°C to +60°C (-4°F to +140°F)

METHOD

3-CMOS, RGB

IMAGER

2/3 inch type 4K CMOS sensor with global shutter

SIGNAL-TO-NOISE RATIO

-62 dB

MASS

Approx. 5.1 kg (11 lb 3.9oz)
(unit only)

DIMENSIONS (HOOD IS NOT INCLUDED)

- Width : 138 mm
- Height 268 mm
- Depth : 363 mm

Sony HDC-5500V Camera

POWER REQUIREMENTS

- AC 240 V, 1.4 A (max.)
- DC 12 V, 9.5 A (max.)
- DC 240 V, 1.05 A (max.)

SPECTRUM SYSTEM

F1.4 prism

GEOMETRIC DISTORTION

Negligible (not including lens distortion)

NOTES

This may be limited by the imposed load or inputs.

DOWNLOAD

Data Sheet

SENSITIVITY

-F
10 with 1080/59.94p -F11 with 1080/50p (at 2,000 lx with 89.9% reflectance)

DC OUT

-4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹ -2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A*¹

PROMPTER/GENLOCK

-  Bnc (x1) : Prompter 1 vp-p, 75 ω
- Genlock hd : smpte st274, tri-level sync, 0.6 vp-p, 75 ω,
- Sd : black burst (ntsc: 0.286 vp-p, 75 ω/pal: 0.3 vp-p, 75 ω)

USB

USB 2.0 Type A 4-pin (x1) (for connecting USB drive)

BUILT-IN FILTERS

ND filters 1: CLEAR, 2-5:
Variable ND (1/3-1/256)

AUDIO IN CH1, CH2

-XLR 3-pin, female (x1 each)
-When AUDIO switch is set to LINE : 0 dBu, balanced
-When AUDIO switch is set to MIC : –60 dBu (can be selected up to –20 dBu by menu operation), balanced

Sony HDC-5500V Camera

INPUT/OUTPUT CONNECTORS

- Sdi 1 : BNC (x1)
- Sdi2 : Bnc (x1)
- Tracker/Crane : 12-pin (x1)
- MIC 1 IN : XLR 3-pin, female (x1)
- DC IN : XLR 4-pin (x1), DC 10.5 to 17 V
 - Network Trunk : RJ-45 type 8-pin (x1)
- Intercom 1, Intercom 2 : XLR 5-pin, female (x1 each)

- Vf : 20-pin (x1)
- Lens : 12-pin (x1)
- Sdi Moni : BNC (x1)
- Test Out : BNC (x1)
- Prompter2 : No
- Ret Ctrl : 6-pin (x1)
- Remote : 8-pin (x1)
