The Modern Fan IC/Air2 DC | 56″
FAN IC/AIR2 DC | 56″ FAN
FAN IC/AIR2 DC | 56″ FAN
Designed by Guto Indio da Costa

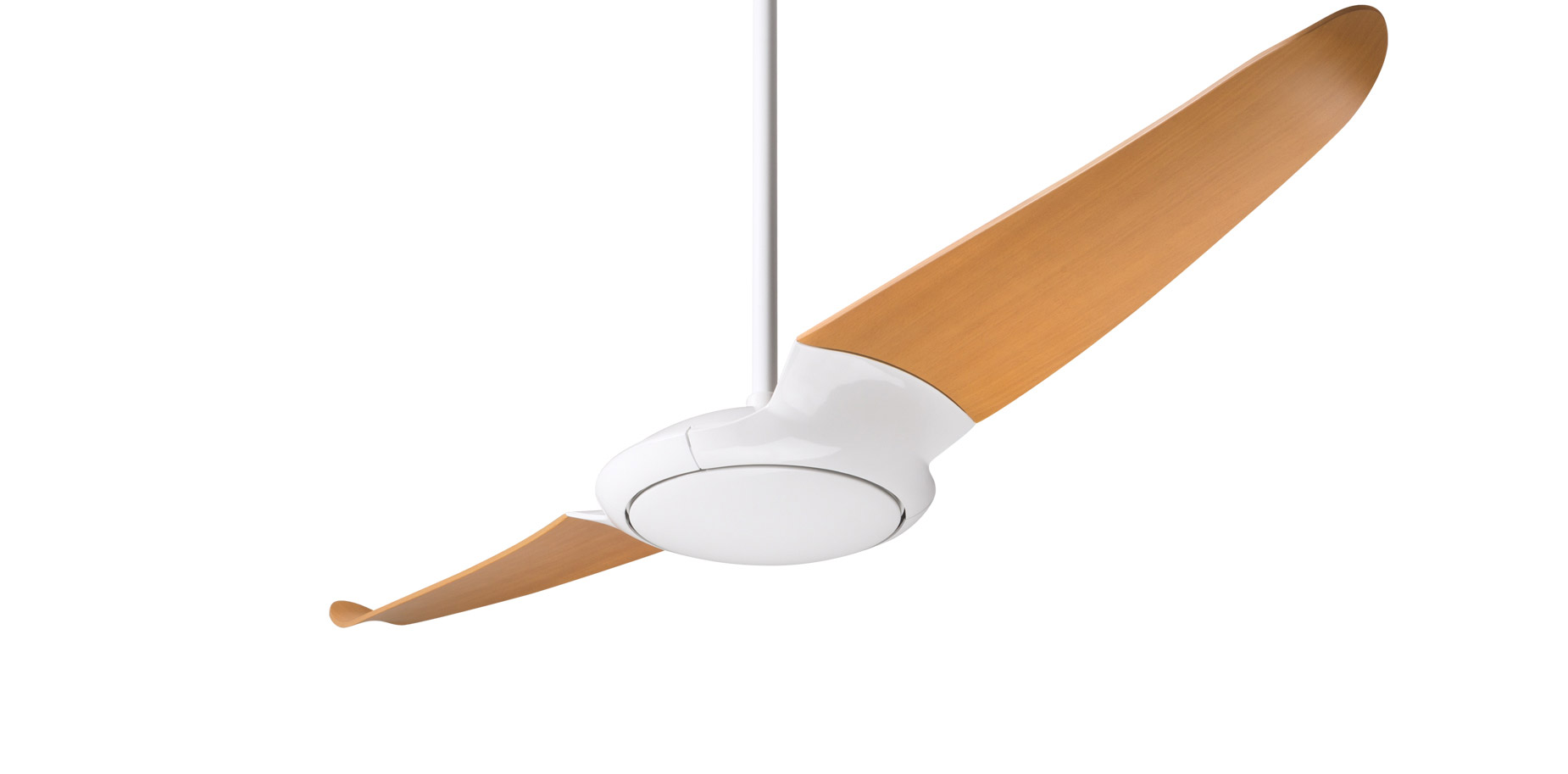

56” span, injection-molded ABS blades (solid color or surface printed woodgrain)
DESIGNER
GUTO INDIO DA COSTA
A Brazilian designer and the Director of Rio de Janeiro based Indio da Costa A.U.D.T., Guto Indio da Costa is the newest contributor to Modern Fan’s assortment.
His experience is extensive, dating back to the design of his award-winning Spirit fan released to the Brazilian market in 2001.
The IC/Air collection (2017) represented Indio da Costa’s first ceiling fan project aimed at the North American market and marked Modern Fan's adoption of new DC motor and LED technologies. The collaboration continues in 2023 with the introducion of the IC/Brisa, another "clean, sleek, elegant" concept from Indio da Costa.
information
DETAIL
-ETL listed for dry and damp locations -Slope compatible up to 33°; adapter available for slopes up to 45°
BRAND
The Modern Fan
PRODUCT TYPE
Fan
INCLUDES
Includes 8” and 18” down rods, longer options also available
DOWNLOADS
↓ Data Sheet
↓ Installation Instructions
HIGH SPEED PERFORMANCE DATA
Based on DOE standardized test method (installed with 4.5″ down rod).
- RPM : 200
- CFM/Watt : 70
- Watts (fan only) : 33.02
- CFM (Cubic Feet per Minute): 6,104
TECHNICAL DRAWING
OPTIONAL LED LIGHT
Optional LED light: 20W, 90 CRI, 3000K, 1800 lumens (dimmable) behind opal glass diffuser; adds .5” to length of fan; CA Title 24 (JA8) compliant
WEIGHT
15 lbs (6.8 kgs)
SPEED
6-speed, reversible DC motor
DESIGNED
Guto Indio da Costa
DIE CAST
Die cast aluminum construction
ENERGY GUIDE DATA
Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).
- Average Energy Use : 21 Watts
- Average Airflow : 4,140 CFM
- Yearly Energy Cost : $6.00
- Average Efficiency : 175 CFM/Watt
MORE ABOUT PERFORMANCE AND EFFICIENCY
Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product. These values are “weighted averages” of high and low speed performance and are intended to represent typical use.
They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products. Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format.
Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.
It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction. It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application.
Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market.Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.
COLORS
FAN FINISH
BLADE COLORS
