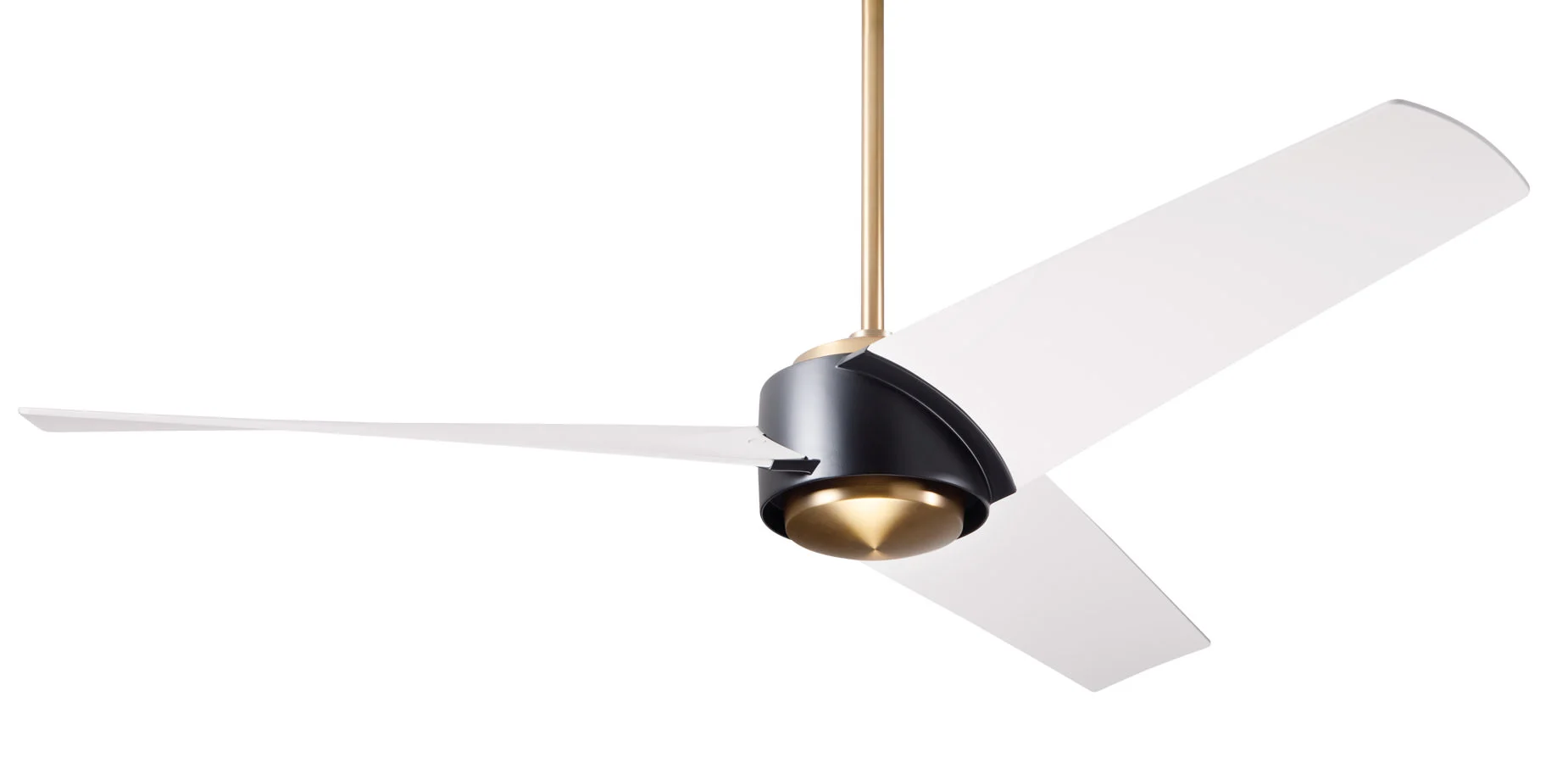

The Modern Fan Ambit DC 56″ Fan

AMBIT DC 56″ FAN

The Modern Fan Ambit DC 56″ Fan

AMBIT DC 56″ FAN

56” span, injection-molded ABS blades (solid colors or surface-printed woodgrain)

information

INCLUDES

Includes 6” and 16” down rods; longer options also available

BRAND

The Modern Fan

PRODUCT TYPE

Fan

The Modern Fan Ambit DC 56″ Fan

COLLECTION

Ambit

WEIGHT

16.0 lbs (6.4 kgs)

SLOPE

Slope compatible up to 20°; adapter available for slopes up to 45°

OPTIONAL LED LIGHT

17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant

The Modern Fan Ambit DC 56″ Fan

DIE CAST

Die cast aluminum construction

SPEED

6-speed, reversible DC motor

ENERGY GUIDE DATA

Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).

- Average Energy Use : 21 Watts
- Average Airflow : 3.695 CFM
- Yearly Energy Cost : $6.00
- Average Efficiency : 179 CFM/Watt

The Modern Fan Ambit DC 56″ Fan

HIGH SPEED PERFORMANCE DATA

Based on DOE standardized test method (installed with 4.5″ down rod).

- RPM : 145
- CFM/Watt : 146
- Watts (fan only) : 33.65
- CFM (Cubic Feet per Minute) : 4.923

DETAIL

ETL listed for dry and damp locations

LIGHT OPTION

- NL : No Light
- 17W LED

The Modern Fan Ambit DC 56″ Fan

TECHNICAL DRAWING

COLORS

FAN COLORS

-M
atte White -Matte Black -Satin Brass/Matte White -Satin Brass/Matte Black

The Modern Fan Ambit DC 56″ Fan
Matte White
The Modern Fan Ambit DC 56″ Fan
Matte Black
The Modern Fan Ambit DC 56″ Fan
Satin Brass/Matte White
The Modern Fan Ambit DC 56″ Fan
Satin Brass/Matte Black

BLADE COLORS

-M
atte White -Matte Black -Ebony -Graywash -Mahogany -Maple -Whitewash

The Modern Fan Ambit DC 56″ Fan
Matte White
The Modern Fan Ambit DC 56″ Fan
Matte Black
The Modern Fan Ambit DC 56″ Fan
Ebony
The Modern Fan Ambit DC 56″ Fan
Graywash
The Modern Fan Ambit DC 56″ Fan
Mahogany
The Modern Fan Ambit DC 56″ Fan
Maple
The Modern Fan Ambit DC 56″ Fan
Whitewash

PERFORMANCE

MORE ABOUT PERFORMANCE AND EFFICIENCY

Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product.

These values are “weighted averages” of high and low speed performance and are intended to represent typical use.

They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products.

Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format.

Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.

It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction. It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application. Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market.

Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.

CONTROL OPTIONS

The Modern Fan Ambit DC 56″ Fan

WALL CONTROL (WC)

For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), battery and and RF canopy receiver.

The Modern Fan Ambit DC 56″ Fan

REMOTE CONTROL (RC)

For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes handset, wall mount holder, battery and and RF canopy receiver. For use with on/off toggle switch providing power supply to fan.

The Modern Fan Ambit DC 56″ Fan

WALL/REMOTE COMBO (CC)

A combination control set for radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), handset, batteries and RF canopy receiver.
