The Modern Fan Cirrus Flush Dc | 50″ Fan
CIRRUS FLUSH DC | 50″ FAN
CIRRUS FLUSH DC | 50″ FAN
Designed by Ron Rezek
DESIGNER
RON REZEK
In 1986, Ron Rezek was approached with the task of updating the 100-year-old ceiling fan.
An accomplished industrial designer with prior success throughout the lighting and furniture industries, Rezek embraced the opportunity to introduce modern design to a long-ignored product category.
The Stratos fan (1988) was born and forged the path for a much needed evolution in ceiling fan design.
Over three decades later, Rezek’s collection of Modern Fans are celebrated for their timeless and sophisticated originality.
His lasting influence on the entire ceiling fan industry is undeniable.
information
BRAND
The Modern Fan
PRODUCT TYPE
Fan
SPEED
- 6-speed
- Reversible DC motor
CONSTRUCTION
Die cast aluminum construction
WEIGHT
14.0 lbs (6.4 kgs)
TECHNICAL DRAWING
OPTIONAL LED LIGHT
17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant
COLLECTION
Cirrus Flush DC | 50″
CELLING
For flat ceilings only
ENERGY GUIDE DATA
Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).
- Average Energy Use : 23 Watts
- Average Airflow : 2,538 CFM
- Yearly Energy Cost : $6.00
- Average Efficiency : 92 CFM/Watt
DAMP LOCATIONS
ETL listed for dry and damp locations
BLADES
50” span, plywood blades
HIGH SPEED PERFORMANCE DATA
Based on DOE standardized test method (installed with 6″ down rod).
- RPM : 220
- CFM/Watt : 119
- Watts (fan only) : 35.69
- CFM (Cubic Feet per Minute) : 4,257
COLORS
FAN FINISH
BLADE COLOR
PERFORMANCE
MORE ABOUT PERFORMANCE AND EFFICIENCY
Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product.
These values are “weighted averages” of high and low speed performance and are intended to represent typical use.
They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products.
Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format.
Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.
It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction. It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application. Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market.
Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.
CONTROL OPTIONS
WALL CONTROL (WC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), battery and and RF canopy receiver.
REMOTE CONTROL (RC)
For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes handset, wall mount holder, battery and and RF canopy receiver. For use with on/off toggle switch providing power supply to fan.
WALL/REMOTE COMBO (CC)
A combination control set for radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), handset, batteries and RF canopy receiver.

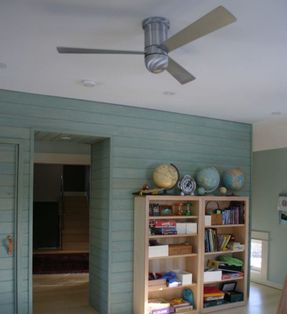

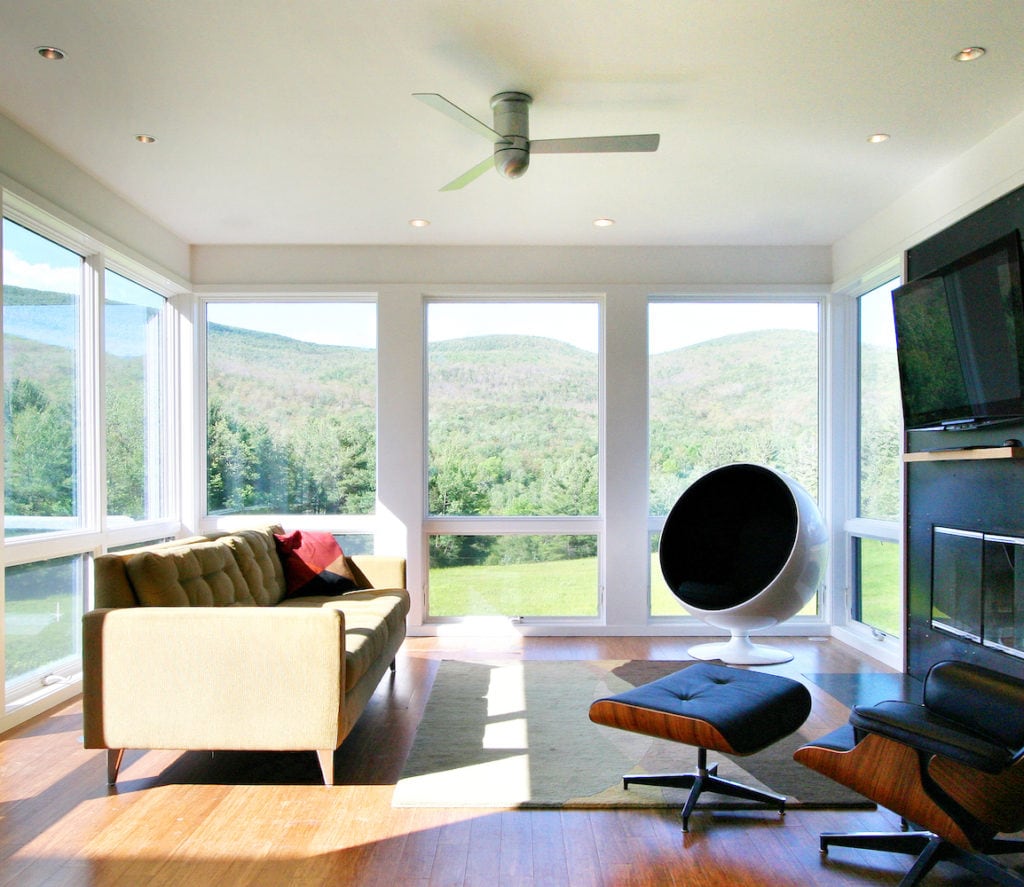

GALLERY
