Dometic Dometic CFX3 25 Coolbox
DOMETIC CFX3 25 COOLBOX
DOMETIC CFX3 25 COOLBOX

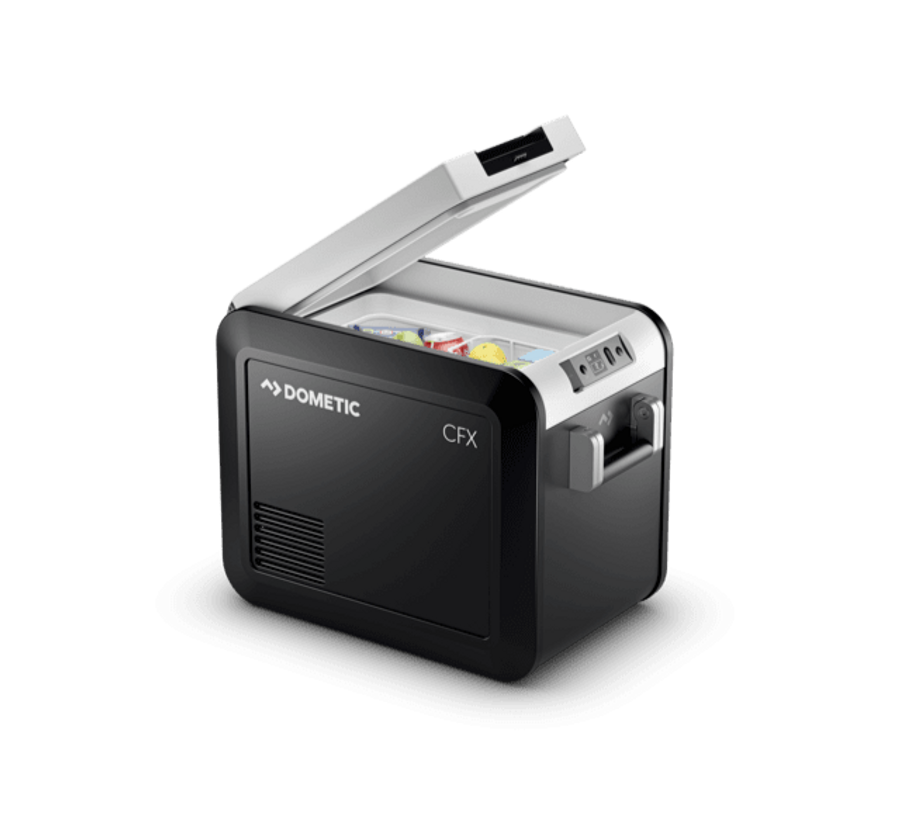

Mobile compressor cooler, 25 l
This powerful cooler allows you to bring more of the food and drinks you love, wherever you go.
Its robust design is built for outdoor use, while its convenient mobile app puts the control of your Dometic CFX3 at your fingertips. Go further, stay longer, and experience more.
INFORMATION
BRAND
Dometic
PRODUCT TYPE
Coolbox
SKU NUMBER
9600028369
MODEL
CFX325
OPTIMIZED INTERIOR
Total volume of 25 l fits 40 cans or five 1.5 l bottles
DIMENSIONS
- Heigh : 480 mm
- Depth : 610 mm
- Width : 380 mm
NET WEIGHT
9.40 Kg
COLLECTION
Dometic

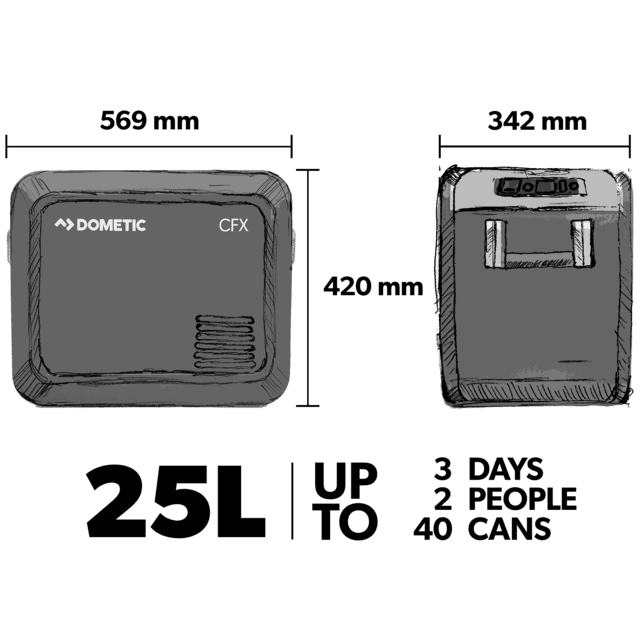

DIMENSIONS PARCEL
- Heigh : 420 mm
- Depth : 569 mm
- Width : 342 mm
PARCEL WEIGHT
15.37 Kg
MODEL ON LABEL
CFX325
LIGHT WEIGHT
Heavy-duty yet lightweight ExoFrame construction with fender frame protected edges and aluminum alloy handles
PERFORMANCE
- GWP : 1430
- Refrigerant, type : R134a
- Hermetically Sealed : True
- CO2 equivalent, [t] : 0.046
- Refrigerant amount, [g] : 32
- Noise (EN60704-1 & 60704-2-14), [dB(A)] : 46
- Energy efficiency class (Regulation (EU) 2019/2016) : C
- Annual energy consumption at AC (EN62552-3:2020), [kWh/a] : 44
SKU REPLACED BY
97000050759
REFRIGERATION TECHNOLOGY
CompressorT
COLOR
Slate / Mist
THERMOSTAT CONTROL
Electronic Thermostat
COMPRESSOR
Powerful VMSO3 compressor cooling technology efficiently cools between +20 °C and –22 °C
COMPACT DESIGN
Robust, lightweight and compact design ensures convenient portability
HINGE TYPE
Top
INTERIOR LIGHT
Yes, LED
EASY CONTROL
Easy-to-read High-Resolution Color Display and soft-touch buttons for easy control and monitoring
BATTERY PROTECTION
Dynamic battery protection system prevents dead vehicle battery or allows deep draw on dual batteries
SCOPE OF DELIVERY
1 cooler, 1 manual, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets
ELECTRICAL
-Input voltage (DC), [V] ; 12/24
-Input voltage (AC), [V] : 100-240
-Rated input current (AC), [A] : 0.9A at 100V; 0.38A at 240V
-Rated input current (DC), [A] : 3.2A at 24V, 6.5A at 12V
CERTIFICATES
Ece R10cbemcgs
EAN-13
4015704286137
TEMPERATURE
CFX3 App allows temperature control via WiFi or Bluetooth and provides performance history
TOTAL VOLUME (IEC 62552-3), [L]
25
INPUT FREQUENCY
Input frequency, [Hz] :50/60
features
FLEXIBLE POWER OPTIONS
Powered by AC or DC
EASY TO CARRY
Strong aluminum carry handles
RUGGED CONSTRUCTION
Fender frames protect the unit from damage
CONVENIENT CFX3 APP
Temperature control and performance monitoring via CFX3 App
USER-FRIENDLY INTERFACE
The stylish, high-gloss TFT LCD user interface displays operating status
EFFICIENT POWER CONSUMPTION
Optimized VMSO3 compressor cooling technology
DETAIL
THE POWER TO BE PRESENT
With the Dometic CFX3, you have control of your outdoor experiences like never before. The CFX3 gives you the power to change your state of mind and put your well-being first.
On-road, off-road, outback or in the backyard, your ordinary and extraordinary adventures will be fueled by safer food, less waste and more confidence, giving you the power to be present in any moment.
MAXIMUM EFFICIENCY AND CAPACITY
You can store an incredible amount of food and drinks in the Dometic CFX3 thanks to the internal compartment design. The CFX3 eliminates the dairy compartment, which means more room for all your favorite foods.
Choose how you organize the space with a removable wire divider and enjoy a more even distribution of cool air with the extended evaporator, now on all inner walls of the unit.
TRACK COOLER PERFORMANCE WHEREVER YOU ARE
The CFX3 app provides a whole new level of control and connectivity. Download it for free in the App Store or Google Play Store, and connect to your powered cooler via your smartphone. Control and monitor the temperature of the cooler remotely, whether it’s from the front seat of your vehicle or in bed after a long day of exploring.
Thanks to our user-friendly interface, it’s easier than ever to track the cooling status of your CFX3. If you happen to leave the lid of your CFX3 open, the app will send you a notification telling you to close the lid. While powered, the app keeps detailed records of the temperature and power consumption history, so you know your limits on your next journey. Go and explore. Enjoy peace of mind.
DIGITAL DISPLAY FOR EASY COOLER MANAGEMENT
The CFX3 series features an easy to read high-resolution color display panel which states the temperature and status of the cooler. Several protection systems are built into the display, including a scratch-resistant cover and IP64 rated housing to protect against dust and water splashes, so you can feel confident wherever you go.
The upgraded USB port is now located in the display panel for a faster and more ergonomic way to charge your portable devices. The intuitive user-interface displays the voltage, Bluetooth/WiFi connection status and temperature in colorful graphics. The operating settings of your cooler can be adjusted at the press of a button with a simple menu.
