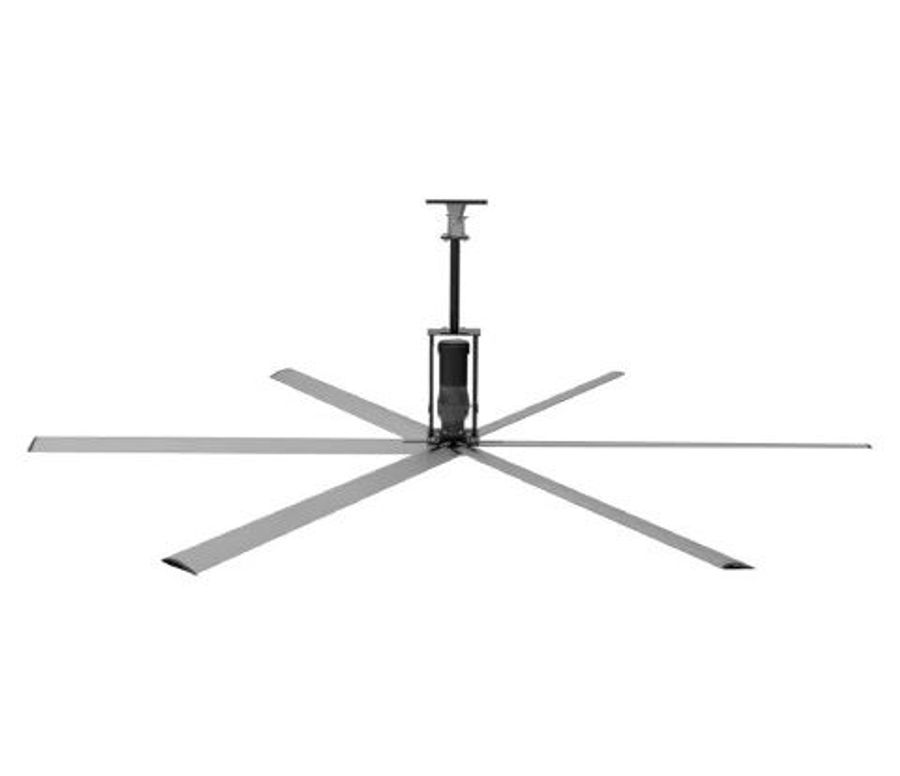

Macro Air AirLegacy Fan
AIRLEGACY FAN
AIRLEGACY FAN
This ultimate utility fan uses tried and true technology proven to last over time. Performing better than any fan in her class, the legendary AirLegacy provides huge airflow while still meeting any budget.
INFORMATION
DIAMETER
8, 10, 12, 14, 16, 18, 20, or 24 ft blade set (6 blades total)
BRAND
Macro Air
PRODUCT TYPE
Fan
MOTOR UNIT
1.0-2.0 HP motor unit (diameter dependent)
ITEM
30-90301-00
COLLECTION
AirLegacy
VOLTAGE
- 480V Three Phase
- 208-240V Single Phase
AC INDUCTION
1.0- 2.0 HP AC induction gearmotor (diameter dependent)
USE
Rated for indoor and outdoor use
FANS CONTROLLED
1 fan
BLADE
Industrial/Commercial HVLS ceiling fan with 6 anodized aluminum blades (airfoils)
FAN PLACEMENT & CLEARANCE
PRODUCTION
United States
INPUT VOLTAGE
208 – 240 volt single phase, 50/60 Hz
SUITABLE
Most suitable for ceiling heights greater than 20 ft.
WARRANTY
- 5 Year Electrical Warranty
- 15 Year Mechanical Warranty
DISPLAY
2.8 TFT
RATING
IP 65
INSTALLATION
Professional installation recommended by licensed electrician
DETAILS
The ultimate utility fan, the MacroAir AirLegacy industrial fan uses tried and true technology which is proven to last over time. The AirLegacy uses a reliable gearbox-driven power unit to provide huge airflow at a great value. With basic features and accessories, the AirLegacy industrial fan will meet any budget while performing better than any fan in its class.
OPERATING TEMPERATURE
16o to 158o F / -10o to +70o C
WEIGHT (INCL. ENCLOSURE)
375 g
COMMUNICATION PROTOCOL
0-10V
STORAGE TEMPERATURE
-22o to 176o F / -30o to +80o C
SIZE (INCL. ENCLOSURE)
91.2 x 135.5 x42.0
SPECIFICATIONS
171-270 lbs
STANDARD FEATURES
- Integrated Gearmotor
- Clearcoat anodized airfoil blades
- Forward, reverse, variable speed
- Variable frequency drive - basic fire alarm integration
- Analog wall control for one-to-one fan control
- Safety Components: safety cable, Universal Mount with guy wires, blade retainer links
CABLE
High voltage electric cable NOT INCLUDED (needed for connecting VFD to building power/breaker panel)
TECHNICAL DRAWING
INCLUDES
- Installation/Operation manual
- Industrial grade VFD (Variable Frequency Drive)
- 25 ft of motor cable (connecting fan motor to VFD)
- 100 ft of CAT5 cable (connecting wall control to the VFD)
- Universal mount (for mounting the fan to ceiling structure/standard I-beam)
- Analog wall control (controls fan speed, on/off function, and forward/reverse)
- Installation hardware (all hardware needed for hanging fan/standard I-beam hardware kit)
