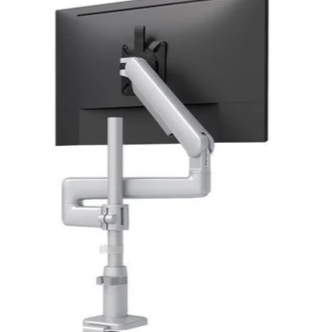

Imovr Compass Single Monitor Arm Stands
Compass Single Monitor Arm
COMPASS SINGLE MONITOR ARM
Finger-touch dynamic height adjustment
INFORMATION
DETAIL
- Quick Release VESA mount
- Partially assembled for quick installatio
- Integrated cable management and tool holder
- Washable PET fleece filter with minimum 99.9% filtration efficiency
BRAND
Imovr
PRODUCTION
Made in Denmark
WARRANTY
15-year
MODEL NO
302001536
PRODUCT TYPE
Stands
COLOR
White
EXTRA SOCKET FOR TOOL
Included
HEIGHT RANGE
23.75″ (14″ of dynamic vertical adjustment + 10.5″ of vertical positioning along the pole)
CERTIFICATIONS
Meets or exceeds BIFMA x5.5 and CSA CAN/CGSB44.227 guidelines
COLLECTION
Compass
MINIMUM HEIGHT
4″
WEIGHT CAPACITY
4.0–20.0 lbs
MONITOR TILT
+90°/-45°
MONITOR ROTATION
±90°
DIMENSIONS
- Maximum Height : 27.75″
- Pole Height : 16″
MOUNTING
Edge clamp and grommet mount
COUNTRY OF ORIGIN
China
ARM EXTENSION
23″
ARM RETRACTION
5.5″
WEIGHT CAPACITY
4.0–20.0 lbs
DETAIL
ACCOMMODATES VARYING WORKSTATION DEPTHS
Retracting to a 5.5″ depth and extending out to 32.2″ inches, Compass offers a comfortable viewing distance no matter the depth of the workstation—not just for standing 30″-deep desks but even for those that are 36″, 42″ or 48″ deep. Not many monitor arms can make this claim. A 180° lockout prevents the arm from retracting past the back edge of your desk and colliding with a wall or privacy panel behind it.
ROTATION AND TILT
The Compass is capable of swiveling ±90° between portrait and landscape orientation, while also being able to tilt monitors backward 90° and forward 45° degrees.
ELEGANT STYLING AND OUTSTANDING PERFORMANCE RANGE
The Compass monitor arms feature a modern design aesthetic that pairs beautifully with any high-quality standing desk. But the real magic is in its state-of-the-art mechanical design, which supports an exceptionally wide range of monitor sizes, on virtually any desk configuration and for every user—no matter how short or tall.
WEIGHT ADJUSTMENT AND TENSION
The Compass supports a weight of up to 20 pounds per arm. A tension adjustment gauge on the back of the arm allows users to see the tension levels while adjusting the arm for various monitor weights. This is also a great time-saving feature for anyone setting up multiple arms in a bulk installation.
EXTRAORDINARY HEIGHT ADJUSTMENT AND RANGE OF SUITABLE MONITOR SIZES
The Compass arms' design incorporates a reliable and smooth finger touch height adjustment feature that allows a 14″ dynamic height adjustment range and 24.5″ of total stroke. The tall pole allows the articulating arm to be set anywhere along its vertical length, offering another 10.5″ of adjustment to accommodate most any popular monitor, from very low to very high positions, in either portrait or landscape orientations.
