Macro Air AirVolution Fan

AIRVOLUTION FAN

Macro Air AirVolution Fan

AIRVOLUTION FAN

This is one dependable beast. With AirVolution, the sky's the limit.

Our original fan, the “OG” is the hardest working, most versatile cooling solution on the market.

Macro Air AirVolution Fan

INFORMATION

VOLTAGE

Input voltage: 208 – 240 volt single phase, 50/60 Hz

BRAND

Macro Air

PRODUCT TYPE

Fan

HEIGHTS

Most suitable for ceiling heights greater than 20 ft.

Macro Air AirVolution Fan

MOTOR

.1.0-2.0 HP motor unit M(diameter dependent)

BLADES

6

COLLECTION

AirVolution

AC INDUCTION

High voltage electric cable - NOT INCLUDED (needed for connecting VFD to building power/breaker panel)

USE

Rated for indoor and outdoor use.

COMMUNICATION PROTOCOL

Professional Installation recommended

CONTROL

Digital controls area rated for indoor only.

WEIGHT (INCL. ENCLOSURE)

171- 270 lbs

LICENSE

licensed electrician

HVLS

Industrial/Commercial HVLS ceiling fan with 6 anodized aluminum blades (airfoils)

HP AC

1.0 – 2.0 HP AC induction gearmotor with a sealed 2-stage helical gear box

STANDARD FEATURES

-Integrated Gearmotor -Clearcoat anodized airfoil blades  -Variable Frequency Drive – Forward, reverse, variable speed and capable of Building Automation Integration (with AirLynk upgrade) and fire alarm
-Digital wall controller with fault code access  -Safety Components: safety cable, universal mount with guy wires, blade retainer links

INCLUDES

- Installation/Operation manual
- 8, 10, 12, 14, 16, 18, 20, or 24 ft blade set (6 blades total)
- Industrial grade VFD (Variable Frequency Drive)
- 100 ft of CAT5 cable (connecting wall control to the VFD)
- 25 ft of motor cable (connecting fan motor  to VFD)
- Digital wall control (controls fan speed, on/off function, and forward/reverse)
- Universal mount (for mounting the fan to ceiling structure/standard I-beam)
- Installation hardware (all hardware needed for hanging fan/standard I-beam hardware kit)

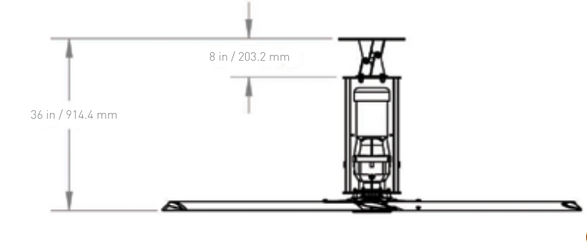

TECHNICAL DRAWING

Macro Air AirVolution Fan
