Modern Fan IC/Brisa DC | 56″ Fan

IC/BRISA DC | 56″ fan

Modern Fan IC/Brisa DC | 56″ Fan

IC/BRISA DC | 56″ FAN

Designed by Guto Indio Da Costa

DESIGNER

GUTO INDIO DA COSTA

A Brazilian designer and the Director of Rio de Janeiro based Indio da Costa A.U.D.T., Guto Indio da Costa is the newest contributor to Modern Fan’s assortment.

His experience is extensive, dating back to the design of his award-winning Spirit fan released to the Brazilian market in 2001.

Modern Fan IC/Brisa DC | 56″ Fan

The IC/Air collection (2017) represented Indio da Costa’s first ceiling fan project aimed at the North American market and marked Modern Fan's adoption of new DC motor and LED technologies.

The collaboration continues in 2023 with the introducion of the IC/Brisa, another "clean, sleek, elegant" concept from Indio da Costa.

information

Modern Fan IC/Brisa DC | 56″ Fan

BRAND

The Modern Fan

PRODUCT TYPE

Fan

INCLUDES

Includes 6” and 18” down rods; longer options also available

DETAIL

-ETL listed for dry and damp locations -Slope compatible up to 33°; adapter available for slopes up to 45°

Modern Fan IC/Brisa DC | 56″ Fan

DESIGNED

Guto Indio da Costa

WEIGHT

12.0 lbs (5.44 kgs)

SPEED

6-speed, reversible DC motor

TECHNICAL DRAWING

Modern Fan IC/Brisa DC | 56″ Fan

HIGH SPEED PERFORMANCE DATA

Based on DOE standardized test method (installed with 6″ down rod).

-RPM : 185
-CFM/Watt : 187
-Watts (fan only) : 29.89
-CFM (Cubic Feet per Minute) : 5,584

BLADES

56” span, injection-molded ABS blades (matte white, matte black or translucent)

DIE CAST

Die cast aluminum and injection-molded ABS construction

OPTIONAL LED LIGHT

Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant

Modern Fan IC/Brisa DC | 56″ Fan

ENERGY GUIDE DATA

Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).

- Average Energy Use : 19 Watts
- Average Airflow : 3,680 CFM
- Yearly Energy Cost : $5.00
- Average Efficiency : 198 CFM/Watt

MORE ABOUT PERFORMANCE AND EFFICIENCY

Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product. These values are “weighted averages” of high and low speed performance and are intended to represent typical use. They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products.

Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format. Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.

It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction. It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application. Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market. Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.

COLORS

COLORS

-Matte White -Matte Black
-Bright Nickel/Translucent -Satin Brass/Matte White -Satin Brass/Matte Black

Modern Fan IC/Brisa DC | 56″ Fan
Matte White
Modern Fan IC/Brisa DC | 56″ Fan
Matte Black
Modern Fan IC/Brisa DC | 56″ Fan

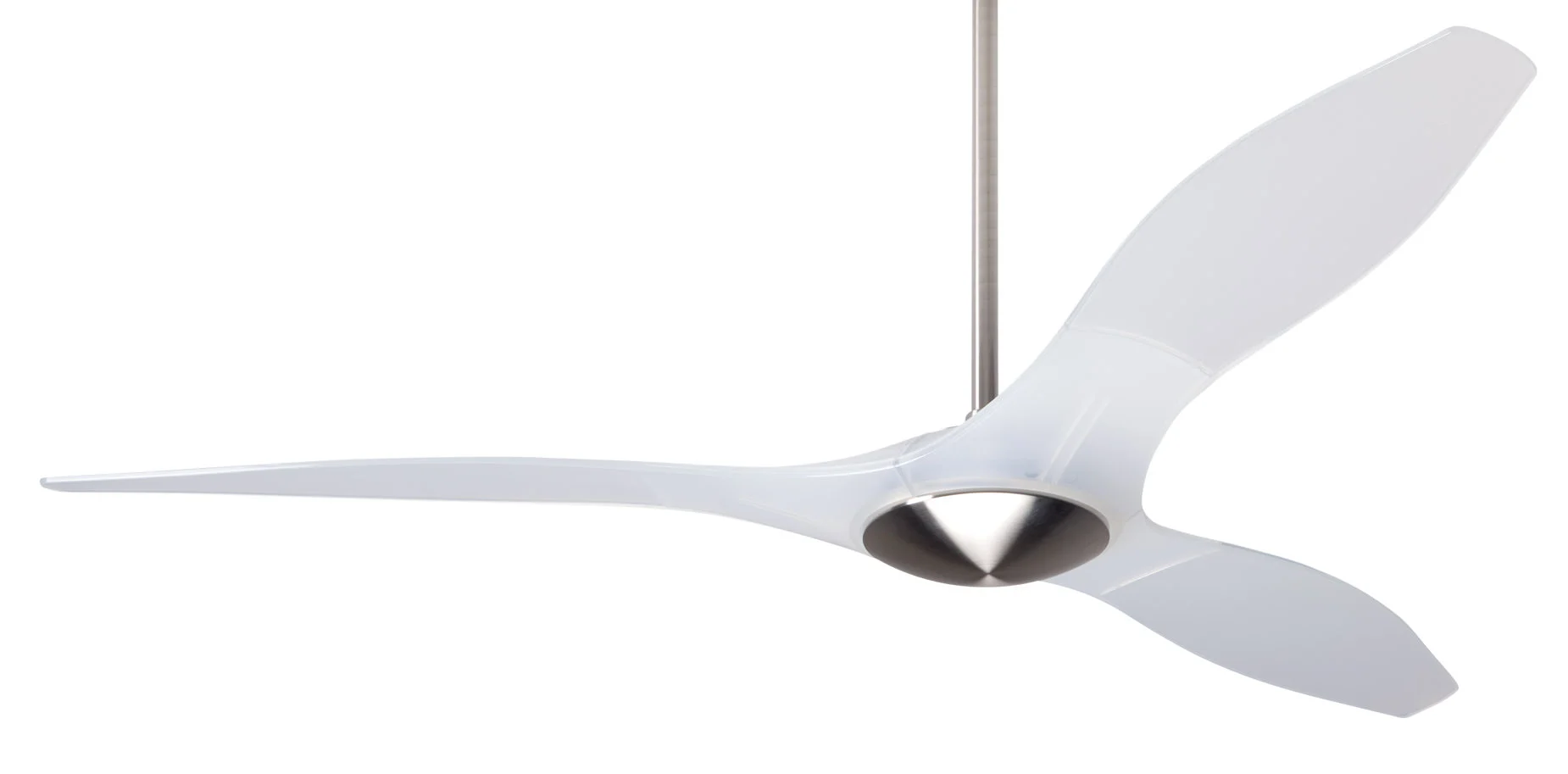

Bright Nickel/Translucent
Modern Fan IC/Brisa DC | 56″ Fan
Satin Brass/Matte White
Modern Fan IC/Brisa DC | 56″ Fan
Satin Brass/Matte Black

CONTROL OPTIONS

Modern Fan IC/Brisa DC | 56″ Fan

WALL CONTROL (WC)

For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), battery and and RF canopy receiver.

Modern Fan IC/Brisa DC | 56″ Fan

REMOTE CONTROL (RC)

For radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes handset, wall mount holder, battery and and RF canopy receiver. For use with on/off toggle switch providing power supply to fan.

Modern Fan IC/Brisa DC | 56″ Fan

WALL/REMOTE COMBO (CC)

A combination control set for radio frequency operation of a fan or fan with light. Uses only one circuit (two wires). Provides six speeds, full range dimming and reverse function. Includes wall control (with master power switch), decora style wall plate (white only), handset, batteries and RF canopy receiver.
