Woodway Lokostation Treadmill
LOKOSTATION TREADMILL
LOKOSTATION TREADMILL
Static / Dynamic gantry for patient security.

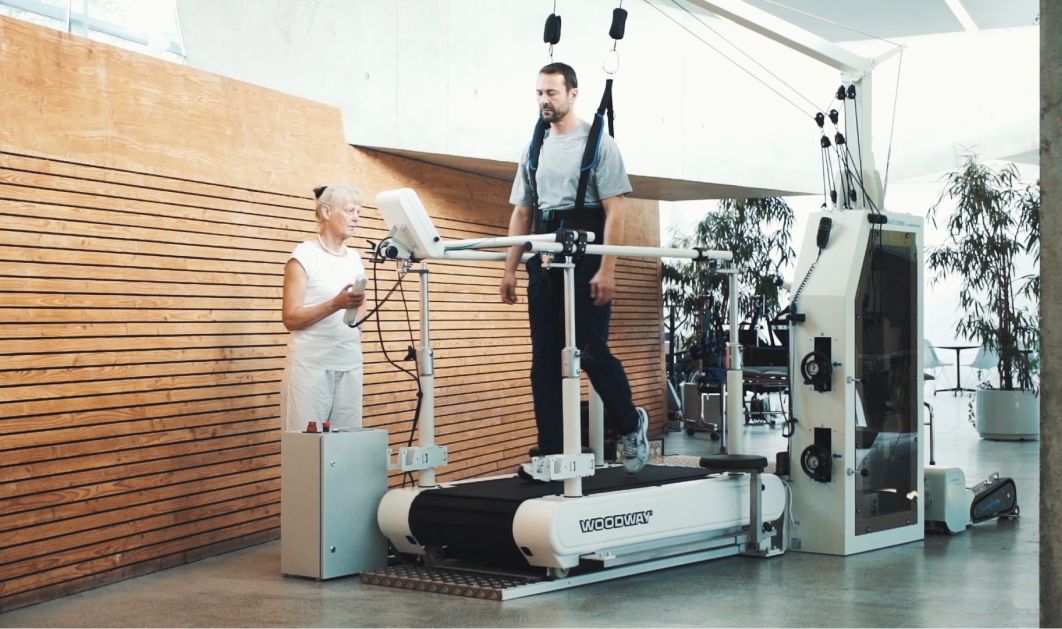

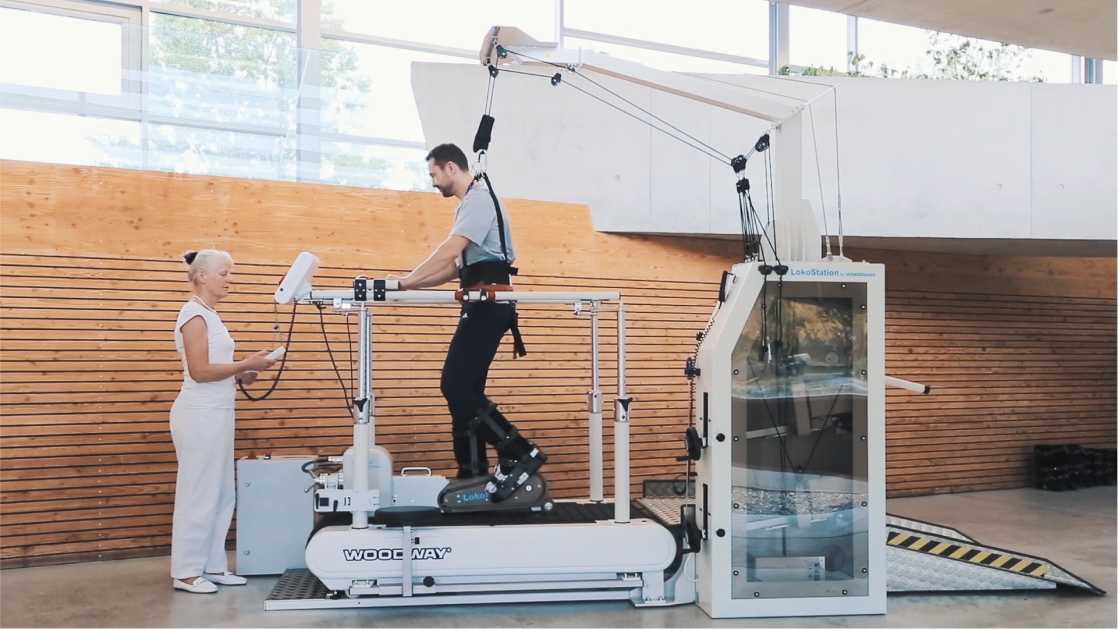

The LokoStation is specially designed for training and rehabilitating gait-impaired patients. With the Loko, therapists have the ability to quickly and conveniently redistribute the weight thanks to the off-loading system, enabling the patient to focus on coordination without the risk of falling.
Paired with the Woodway PPS, the walking surface absorbs impact to prevent further deterioration of bones, tendons, ligaments and muscles of the lower extremity, pelvis and lower back.
INFORMATION
BRAND
Woodway
PRODUCT TYPE
Treadmill
DYNAMIC SUPPORT
With dynamic weight relief, the preset support weight provides uniform support throughout the entire gait cycle because the support weight always follows the vertical movement of the body’s center of gravity.
WHEELCHAIR RAMP
- Length : 70” (177 cm)
- Incline : 13° (approx. 23%)
- Platform : 20” (50 cm)
WARRANTY
7 Year Wear 5 Year Drive, Motor, & Belt 4 Year All Components (Excludes Ropes) 1 Year Labor
MIN. CEILING HEIGHT
9.5 ft. (2.85 m)
POINTS
1 or 2 point suspension
USER WEIGHT CAPACITY
4.5 x 84 lb. (2 x 38 kg)
USER WEIGHT CAPACITY
350 lb. (160 kg)
STAY SECURE
The LokoStation takes rehabilitation and training seriously. The ingenuity of the Loko is matched only by the commitment to help patients recover muscle and gain confidence in the use of their legs with this dynamic system.
PACKAGING DIMENSIONS
- Length : 149" (379 cm)
- Width : 61" (155 cm)
- Height ; 107" (272 cm)
SPEED
0-12.5 mph (0-20 km/h)
UNIT WEIGHT
1234 lbs. (560 kg)
HANDRAIL HEIGHT
29"- 41" (74 - 104 cm)
LOAD
Symmetric or asymmetric unloading
THERAPY SEATING
Therapists can conveniently perform neuromuscular re-education in the form of assisted placement of feet and legs while a user walks, all from the comfort of the LokoStation’s adjustable seats.
STATIC SUPPORT
With static body weight support, the height of the support ropes is fixed. Due to the lowering of the center of gravity during the gait cycle, the patient carries more of his own body weight in the standing phase than in the swing phase.
FEATURES
-Static or dynamic guidance -Relief continuously adjustable by cranks -Direct metering of the weight relief -Variable deviating points Central winch with security self-lock
