Sole Forced Circulation Systems - Solar Water Heater Kits
FORCED CIRCULATION SYSTEMS - SOLAR WATER HEATER KITS
FORCED CIRCULATION SYSTEMS - SOLAR WATER HEATER KITS
The SOLE Forced Circulation Kits ensure supreme quality and incomparable advantages.
On this page you may take a look at the specific characteristics of the SOLE Forced Circulation kits and find out more about their top quality and advantages.
INFORMATION
BRAND
Sole
PRODUCT TYPE
Solar System
COMMITMENT TO THE ENVIRONMENT
Since its foundation in 1974 SOLE S.A. has been committed to the protection of the environment and the reduction of CO2 emission
EFFICIENCY
QUALITY
-Only top quality certified raw materials are used in SOLE’s production plant -SOLE products are produced under rigorous quality management system ISO 9001:2015, Certified by TUV Germany -SOLE solar collectors have been certified according to ISO 9806:2013 EN 12975-1 & EN 12975-2 and are granted the Solar Key - mark.
EFFICIENCY
Maximizes efficiency
AESTHETIC
Best aesthetic results
PACKAGE
Supplied in one package
ECOCOLLECTOR
-The EUROSTAR ECO collector casing is made of specially designed extruded aluminum profile, without any external connections, screws, nuts or rivets. The high density rockwool insulation will maintain very high temperatures achieving an incredibly high efficiency -The absorber is composed of Blue Selective Aluminum fins of 0,50mm thickness, welded to copper pipes with laser welding. -The thermal liquid achieves maximum transfer of heat to the water while protecting the system against scaling, rusting, freezing and overheating.
SYSTEM COMPONENTS
INSTALL
Easy to install (tile or flat roof)
DOWNLOAD
↓ Data Sheet
COLLECTION
Forced Circulation
COMPATIBLE
Compatible with most types of auxiliary heat
CERTIFICATES
EUROSTAR FLOOR STANDING TANK
-The EUROSTAR Floor Standing tank is made of low carbon steel with a double “enamelling” coating (glass), oven treated at 860°C -The FREON FREE high density polyurethane insulation maintains hot water for many days. -The magnesium anode effective -SOLE’s Solar Systems are manufactured in compliance with the International Standards for Quality Assurance ISO 9001:2015. The collector’s performance and reliability is tested according to EN 12975-2 and has been granted with the Solar Keymark Certificate and TUV Certificate for max pressure of 22,5 ba

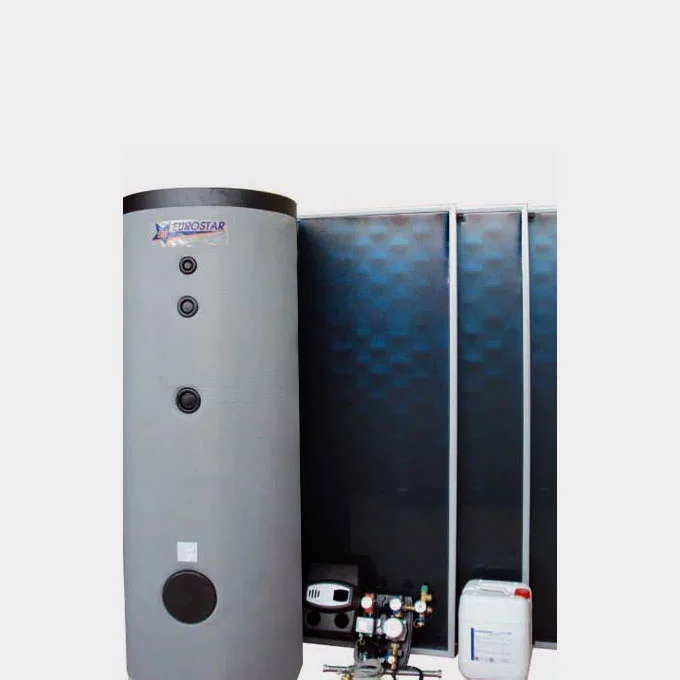

FORCED CIRCULATION KITS
- BL1 = Storage tank with 1 heat exchanger
- BL2 = Storage tank with 2 heat exchangers / Optional electric element 2-4kW
| MODEL | FCK-150 | FCK-200 | FCK-300 | FCK-420 | FCK-500 |
|---|---|---|---|---|---|
| Storage Tank | BL1-150ltr | BL2-200ltr | BL2-300ltr | BL2-420ltr | BL2-500ltr |
| Climasol Collector | 1 x 2.70 m² | 2 x 2.00 m² | 3 x 2.50 m² | 3 x 2.70 m² | 4 x 2.00 m² |
| Pressure Regulator | 1 | 1 | 1 | 1 | 1 |
| Solar Station (pump control unit) | 1 | 1 | 1 | 1 | 1 |
| Expansion tank 25 ltr | 1 | 1 | 1 | 1 | 1 |
| Support Frame | 1x1 | 1x2 | 1x1 + 1x2 | 1x1 + 1x2 | 2x2 |
| Set of Fitting Accessories | 1 | 1 | 1 | 1 | 1 |
| Antifreeze “glycol” 18 kg | 1 | 2 | 2 | 2 | 2 |
