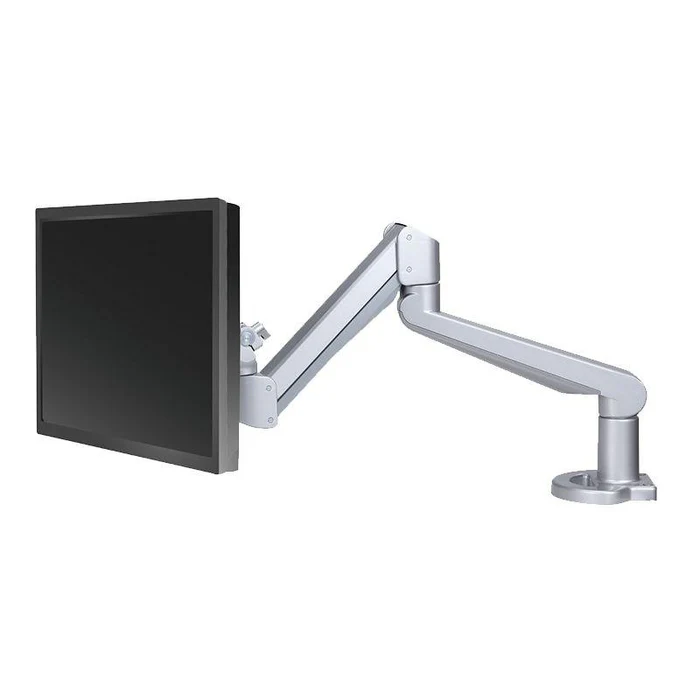

Imovr Topview Max Single Monitor Arm

TOPVIEW MAX SINGLE MONITOR ARM

Imovr Topview Max Single Monitor Arm

TOPVIEW MAX SINGLE MONITOR ARM

When it comes to weight capacity, the TopView Max begins where other monitor arms end. Our heaviest-duty single monitor arm, the TopView Max has an impressive maximum holding capacity of 42 lbs.

Ideal for heavier, large-format monitors, all-in-one PCs and iMacs*.† Features the same reliable and smooth gas spring adjustment control as the lighter-duty TopView models, but with an increased dynamic height adjustment range of 13.8? to accommodate larger monitors.

Imovr Topview Max Single Monitor Arm

INFORMATION

COLLECTION

Topview

BRAND

Imovr

PRODUCT TYPE

Stand

PRODUCTION

Made in Denmark

MONITOR TILT

+85°/-35°

MONITOR ROTATION

360°

Imovr Topview Max Single Monitor Arm

ATTACH

Integrated cable management

MOUNTING

Edge clamp and grommet mount

CERTIFICATIONS

Meets or exceeds BIFMA x5.5 and CSA CAN/CGSB44.227 guidelines

COLOR

Silver

SKU

EDGE-MAX-SLV

WEIGHT CAPACITY

17.6–42.0 lbs

VESA MOUNTING

- 75 mm
- 100 mm Quick Release

DIMENSIONS

- Height Range : 11.25″
- Minimum Height : 11.5″
- Maximum Height : 22.75″

Imovr Topview Max Single Monitor Arm

ROTATING MOUNT

Rotating mount allows for portrait and landscape orientation

PRODUCT WEIGHT

18 lbs

COUNTRY OF ORIGIN

Taiwan (TAA-compliant)

QUIET GAS-PISTON

Quiet gas-piston mechanism for ultra-smooth, finger-touch movement

Imovr Topview Max Single Monitor Arm

SHIPPING DIMENSIONS

31″ × 8″ × 16″

WARRANTY

15 Year

ARM EXTENSION

25″–27.5″

ARM RETRACTION

5.5″

EASY TO INSTALL

Easy to install, easy to use, and exceptionally reliable, like all our commercial-grade TopView monitor arms, this one comes with a 15 year warranty, meets BIFMA standards and is TAA-compliant.

HEIGHT ADJUSTMENT

Height adjustment from 9.5″ to 23.3″ (low/high) for a total of 13.8″ dynamic range, needed for those larger monitors

Imovr Topview Max Single Monitor Arm

DETAIL

-Includes both edge-clamp and grommet mounting hardware
-Exceeds industry guidelines ANSI/BIFMA x5.5 and CSA CAN/CGSB44.227

HEIGHT ADJUSTMENT

180° lock-out feature prevents the arm from retracting past the back edge of your workstation when engaged (prevents damage to walls and encroachment into co-worker's space)

VESA QUICK-MOUNT

Vesa quick-mount makes attaching your monitor a breeze (compatible with 99% of lcd monitors). Not sure your monitor will fit?

FEATURE

Features the same reliable and smooth gas spring adjustment control as the lighter-duty.

MONITOR SWIVEL ADJUSTMENT

Use the 2.5mm Allen key to adjust the set screw for the desired ease of motion rotation.

STYLE

Supported Desk Thickness: 0.6?ñ3? (15ñ76 mm)

BASE

Recommended Worksurface Depth: 36.0? deep or less

PRODUCT DIAGRAM
