Elica Salice Hood
Salice Hood
SALICE HOOD
Elica Design Center
Modernity and technology for top performance.
INFORMATION
BRAND
Elica
COLLECTION
Salice
PRODUCT TYPE
Hood
PRODUCTION
Made in Italy

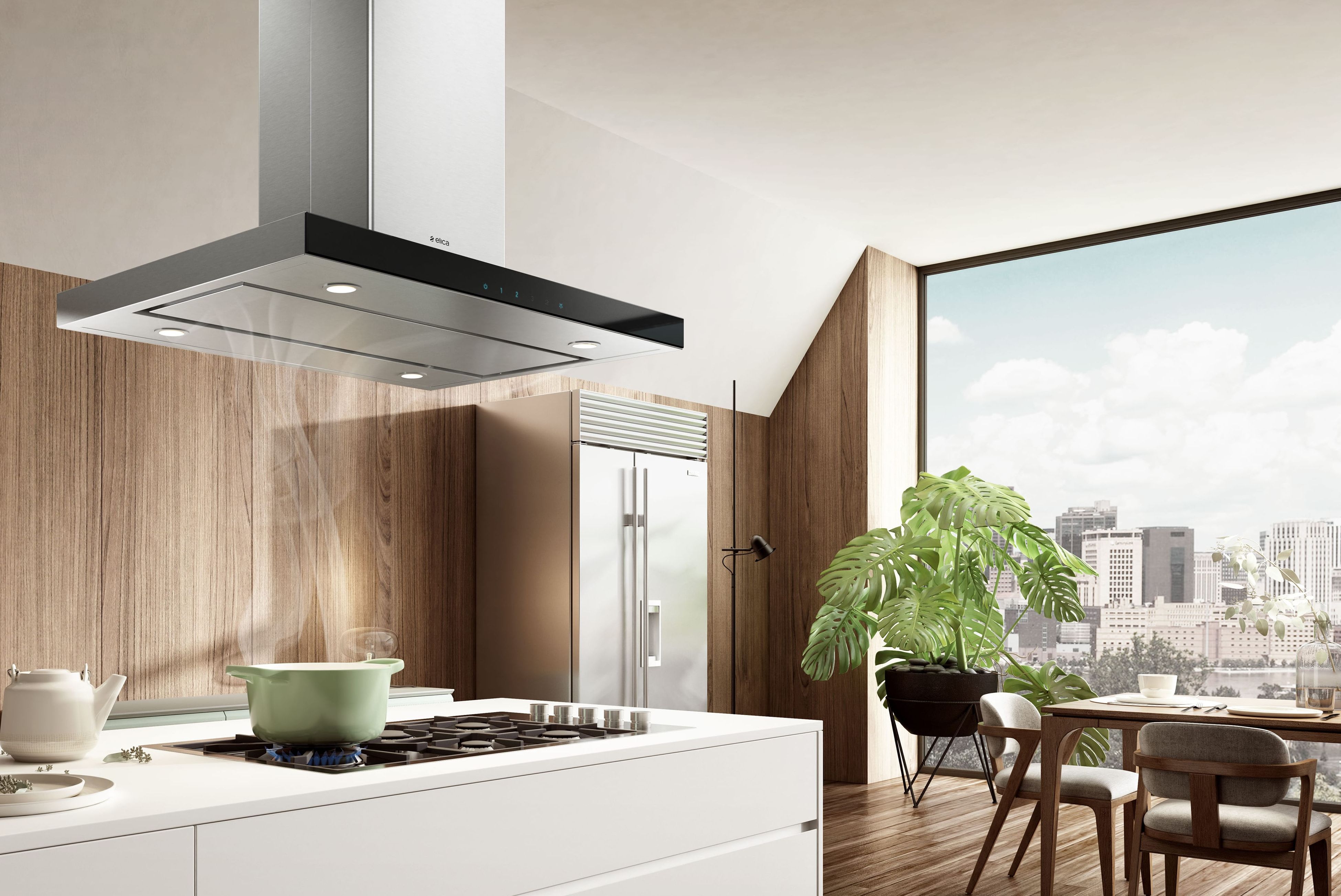

UNDERSTATED ELEGANCE
Salice conveys understated elegance with a gently tapered canopy that measures only 5” tall, which opens up the kitchen for entertainment and conversation.
LED LIGHT
Illuminate your culinary journey with LED brilliance
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
WIDTH
- ESL636S3 : 36"
- ESL642S3 : 42"
MODEL
- ESL636S3
- ESL642S3
DIMENSIONS
36" x 27 13/16” x 32 13/16" x 36" in
DOWNLOADS
↓ Spec sheet
↓ instrcution Manual
HUSH SYSTEM
Silent innovation, redefine tranquility
An exclusive sound-deadening technology that effectively reduces sound levels by over 35%
SERIES
Techne
VENTING TYPE
Convertible with Kit
LIGHTING
Premium Dimmable LED 4 x 2.5 ww 4000 KK
FINISHING
Stainless Steel + Black Glass
SONES
1.3 - 6.8
AIRFLOW
600CFM
DUCT TRANSITION
Round 6"
SYSTEM
CFM reduction system
FILTERS
-Dishwasher-Safe -Aluminum Mesh Filter +Perimeter Aspiration
CONTROLS
Multi-function Electronic with black glass touch display
TOP PERFORMANCE
High fume capture, low noise – the perfect balance.
Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM’s with low noise levels, 1.2 - 1.7 sones at working speed.
PERIMETER ASPIRATION
The extraction surface is now tucked away.
Distributed over the entire perimeter of the hood, the extraction system offers top efficiency. The extraction area is concealed by a panel rendering pure elegance to your hood.
BLOWER
Interior Unit
VOLTAGE
120 V/60 Hz
CONTROLS
Touch controls
WEIGHT
- ESL636S3 : 81 (13lb)
- ESL642S3 : 84 (22lb)
DETAIL
Available in 36” and 42” widths, Salice features a powerful 600 CFM blower, LED Dimmable lighting, and perimeter aspiration technology that helps to achieve Top Performance by delivering more powerful and efficient fume extraction and high-tech glass touch controls that deliver convenience and safety. Designed for ducted installation, Salice can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
FEATURES
- Dim light
- Led light
- Hush system
- Top performance
- Perimeter aspiration
TECHNICAL DRAWING
- A : 36” (91.4 cm), ) 42” (106.7 cm)
- B : 27 7/₁₆”(69.6 cm)
- C : Min:32 7/₁₆”(82.3 cm), Max:52 7/₁₆”(133.1 cm)
- D : Min:32 7/₁₆”(82.3 cm), Max:46 1/₂”(118.1 cm)
- E : 6” (15.24 cm)
- F : 12 1/₈” (30.8 cm)
- G : 13 3/₁₆” (33.5 cm)
- H : 4 15/₁₆” (12.6 cm)
- I : 2 3/₈” (6 cm)
- J : 18 5/₈” (47.2 cm)
