Franke Hood Ftu Plus 3707 I Bk/2 Franke
HOOD FTU PLUS 3707 I BK/2 FRANKE
HOOD FTU PLUS 3707 I BK/2 FRANKE
Article Number - 335.0588.180
INFORMATION
ARTICLE NUMBER
335.0588.180
BRAND
Broan Nutone
PRODUCT TYPE
Hood
EAN/UPC
7612985721943
HOOD CATEGORY
Design
NUMBER OF LAMP
2
EFFICIENCY CLASS
- Light Efficiency Class : A
- F. dynamic efficiency class : A
- Grease filtering efficiency cl : B
UI TYPE
Push button
REMOTE CONTROL
No
WATERPROOF
No
SPEED NUMBER
4
FINISH
Black Extra Matt
SPEED SETTING
3+i
24h
No
DELAY
No
SENSOR SELF START
No
WI-FI
No
FILTER TYPOLOGY
Cassette
TYPE OF FILTER
Aluminium
DIMENSIONS
- Width : 370 mm
- Diam. air outlet : 150
ANNUAL ENERGY CONSUMPTION AEC
54.2
CHARCOAL FILTER
Yes
LAMP TYPE
Led S1001 4000K
NUMBER OF MOTOR
1
PRODUCT FAMILY
Maris
MODEL RANGE
Tube

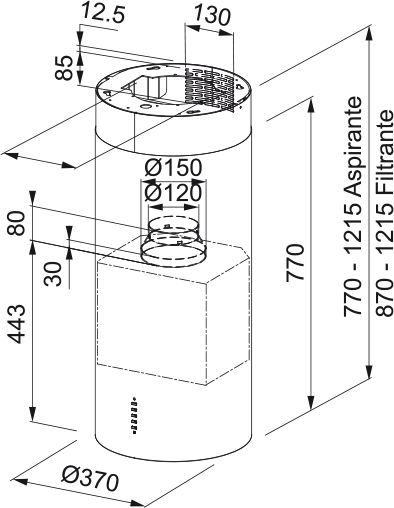

TECHNICAL DRAWING
MOTOR VOLTAGE
220-240V 50-60Hz
INSTALLATION
Island
PLUG TYPE
No plug
MOTOR GR COMM.NAME
SP A+
DOWNLOADS
ENERGY EFFICIENCY CLASS
A
AIR QUALITY SENSOR
No
PERFORMANCE
| SPEED | 1 | 2 | 3 | BOOST |
|---|---|---|---|---|
| Flow (m³h) | 280 | 400 | 570 | 700 |
| Press. max | 450 | 540 | 580 | 590 |
| Power (Watt) | 150 | 200 | 240 | 250 |
| Noise level (db) | 48 | 56 | 65 | 69 |
