36 INCH GAS RANGE

Dacor 36 Inch Gas Range

36 INCH GAS RANGE

Contemporary Style / Silver Stainless / Natural Gas & Liquid Propane

Showcasing a leading powerhouse of gas ranges with a more contemporary design, the 36” Gas Pro Range features 116K total BTU cooktop, 18K BTU dual infrared broilers, Wi-Fi capabilities, and a dual 3-Part convection system

FEATURES

LUXURIOUS FINISHES

Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.

Dacor 36 Inch Gas Range

HEALTHY COOK

Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.

Dacor 36 Inch Gas Range

SIMMERSEAR BURNERS

Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.

Dacor 36 Inch Gas Range

DUAL THREE-PART PURE CONVECTION

Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.

Dacor 36 Inch Gas Range

ILLUMINA KNOBS

Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.

Dacor 36 Inch Gas Range

SMARTTHINGS INTEGRATION

Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.

Dacor 36 Inch Gas Range

WI-FI-ENABLED 7 INCH LCD CONTROL PANEL

Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.

Dacor 36 Inch Gas Range

INFORMATION

PRODUCT TYPE

Burner  & Oven

MODEL NO.

DOP36M96GLS/DA

AVAILABLE FUEL TYPES

- Natural Gas
- Liquid Propane

FINISHES

- Silver Stainless
- Graphite Stainless

Dacor 36 Inch Gas Range

TEMPERATURE PROBE

Yes

LIGHTING

BrightVue™ - LED & Halogen

SOFTSHUT™

Yes

DOWNLOAD

↓ Data Sheet

STYLE

Contemporary

GRIDDLE

Sold Separately

REQUIREMENTS

Electrical: 120V, 60Hz, 20A

FUEL TYPE

Natural Gas & Liquid Propane

DETAIL

With an intuitive and innovative 7” LCD touch screen that regulates all the oven functions, the range is fully digitally controlled, with accurate oven settings down to 5°F increments. Bluetooth ConnectOn technology provides automatic ventilation operation and IQ Connect WIFI system ensures smart, app enabled features that evolves with the SmartThings platform.

BRASS BURNER CAPS

Yes

NUMBER OF BURNERS

6

BURNER CONFIGURATION

- Left Front : 22,000 BTU
- Left Rear : 18,000 BTU
- Center Front : 18,000 BTU
- Center Rear : 18.000 BTU
- Right Front : 22,000 BTU
- Right Rear : 18,000 BTU
- Griddle : 1,400W

INTERIOR CAPACITY

Oven : 5.4 ft.³

WOK RING

Yes

Dacor 36 Inch Gas Range

WARRANTY

2 Years

SELF- CLEAN

Self-Clean, GreenClean™

DIMENSIONS

- Width : 35-7/8"
- Height : 36"
- Depth : 29"

ELECTRICAL REQUIREMENT

- 120V
- 60 Hz
- 20A

CONTROLS

- Clock : Yes
- Ventilation Yes
- Child Lock Yes
- Delay Start Yes
- Kitchen Timer Yes
- Sabbath Mode Yes
- Control Shower Lighting Yes
- Illumina™ Knobs White Yes
- Chef Mode Guided Cooking Yes
- Bluetooth Auto Connect Ventilation Yes
- Control Type 7" Motorized Lcd Touchscreen & Knobs

BAKE BURNER

25,000 BTU

CONVECTION

Dual Three-Part

BROIL BURNER

18,000 BTU

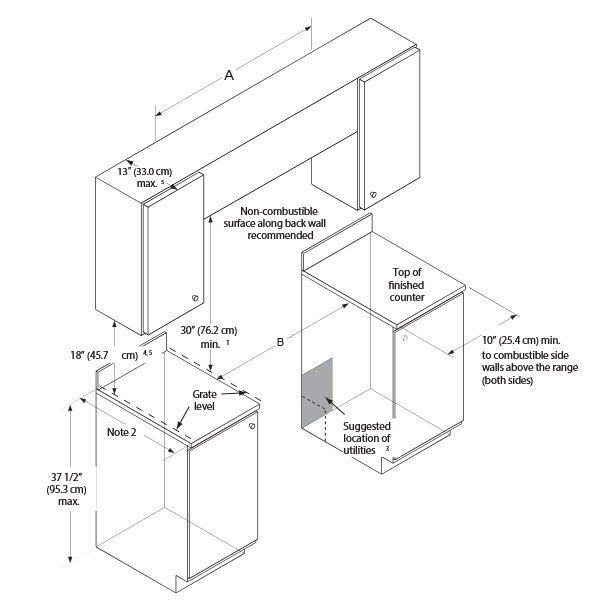

TECHNICAL DRAWINGS

Dacor 36 Inch Gas Range

TECHNICAL DRAWINGS

Dacor 36 Inch Gas Range
