Elica Toblino Hood
TOBLINO HOOD
TOBLINO HOOD
Designed by Elica Design Center
Compact and efficient range hood.
INFORMATION
MODEL
- ETB430S3
- ETB430S3
BRAND
Elica
PRODUCT TYPE
Hood
COLLECTION
Toblino
PRODUCTION
Made in Italy
DUCT TRANSITION
Round 6"
ELICA.VOLTAGE_USA
120 V/60 Hz
VENTING TYPE
Convertible with Kit

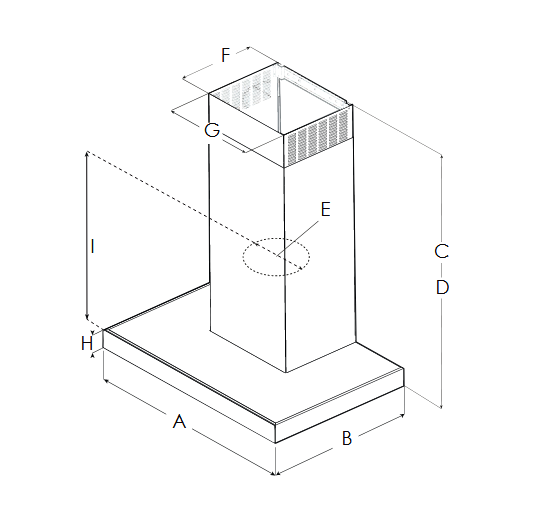

DIMENSIONS
- A : 30” (76.2 cm) / ) 36” (91.4 cm)
- B : 19 11/₁₆” (50 cm)
- C : Min - 20 3/₄” (52.7 cm)
- Max : 35” (89 cm) / 31 3/₁₆” (79.2 cm)
- E : 6” (15.24 cm)
- F : 10 3/₄” (27 cm)
- G : 13” (33 cm)
- H : 1 5/₈” (4 cm)
- I : 15 5/₁₆” (38.9 cm)
LED LIGHT
Illuminate your culinary journey with LED brilliance
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
WIDTH
- ETB430S3 : 30" in
- ETB436S3 : 36"
WEIGHT
- ETB430S3 : 37(52lb)
- ETB436S3 : 40 (57lb)
DETAIL
Toblino, with a super sleek design that's only 2" high is the perfect complement for modern kitchen designs that feature futuristic sharp architectural lines.
SYSTEM
CFM reduction system
ELICA.SERIES_AMERICA_USA
COMFORT
DOWNLOADS
↓ Spec sheet
↓ installation Manual
ELICA.LIGHTING_AMERICA_USA
LED 2 x 2.1 ww 3000 KK
FINISHING
Stainless Steel
AIRFLOW
400CFM
SONES
0.4 - 5.0
FILTERS
-Dishwasher-Safe -Aluminum Mesh Filter +Perimeter Aspiration
BLOWER TYPE
Interior Unit
BLOWER TYPE
400 CFM (4-speed)
LED LIGHT
- DishwasherSafe
- Anodized Aluminum Mesh
COMPACT AND EFFICIENT RANGE HOOD
Available in 30” or 36” widths, Toblino features multiple backlight color touch controls that illuminate in elegant white, green, blue, or red and operate the LED lights and 4-speed blower. Multiple clicking sound options are also available. Designed for standard ducted installation, Toblino can also be installed as a recirculating system using the kit available as an accessory.
LIGHT
Led light
LAYER
3x layer mesh
