ALEA STOVE

MCZ Alea Stove

ALEA STOVE

Economical, airtight slim pellet stove with a depth of 28 cm

FEATURES

TOTAL SILENCE, WHEN YOU WANT

The No-Air function allows you to completely exclude the forced ventilation in this stove, ensuring maximum silence and all of the advantages of heat diffused throughout the room by natural convection.

MCZ Alea Stove

SEALED STRUCTURE AS STANDARD

Thanks to a perfectly sealed combustion chamber, this product uses up the oxygen taken exclusively from the outside, ensuring reduced consumption and perfect thermal comfort in modern homes, even those with class A energy rating, with no risk of smoke emissions in the room.

MCZ Alea Stove

EASY-TO-USE

This stove can be managed with a control panel, assembled on the side of the stove, with easy and intuitive functions, suited to those preferring a truly simple solution. A remote control is available as an optional. Thanks to the Easy Connect system, this stove can be remotely controlled via a smartphone with a specific application and a Wi-Fi kit, which is sold as optional.

MCZ Alea Stove

IDEAL SPACE-SAVING SOLUTION

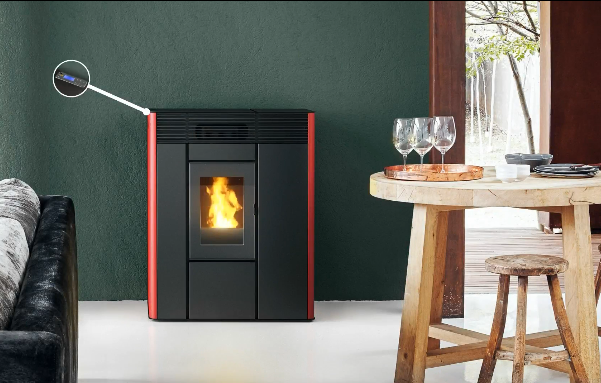

The reduced depth (40.7 cm) is ideal to save space. The smoke outlet may be positioned in the back (as in the photo) or on the top, to reduce the total volume even further. The top smoke outlet allows for installation flush with the wall, which reduces the depth of the stove and, consequently, optimises space in the home.

MCZ Alea Stove

INFORMATION

BRAND

MCZ

PRODUCT TYPE

Stove

COLLECTION

Alea

PRODUCTION

Made in Italy

ENERGY EFFICIENCY CLASS

A+

ECONOMICAL, AIRTIGHT SLIM PELLET STOVE WITH A DEPTH OF 28 CM

Slim format pellet stove, which is part of MCZ new “Easy” line, a full range of pellet stoves offering basic finishes and electronics at a fair price. Alea is a ventilated sealed stove with a reduced depth (less than 28 cm), ideal for corridors and confined spaces. It is made with cast iron door, White, Silver, Black or Bordeaux steel cladding. Cast iron brazier and firebox back panel.

USE

Heating

SMOKE OUTLET

80 mm

MCZ Alea Stove

MATERIAL

Steel

HOPPER CAPACITY

18.50 lt

MODEL

ALEA AIR 7 S1 (7121060)

HOURLY CONSUMPTION

- Max : 1.70 kg/h
- Min : 0.61 kg/h

HEAT OUTPUT

- Nominal heat output : 7.00 kW
- Minimum heat output : 2.70 kW

NET WEIGHT

80.00 kg

MASS OF SMOKE

4.90 g/s

AUTONOMY

- Max : 1.70 kg/h
- Min : 20.00 h

EFFICIENCY

- Max : 89.60 %
- Min : 93.10 %

TEMPERATURE OF EXHAUST SMOKE

184.00 °C

SEASONAL SPACE HEATING ENERGY EFFICIENCY (ΗS)

85.00 %

HEATABLE VOLUME

- 20W/m³ : 350.00 m3
- 35W/m³ : 200.00 m3
- 55W/m³ : 127.00 m3

THE RIGHT LEVEL OF COMFORT FOR A ROOM OR OPEN SPACE

This is an air stove, the most classic model of pellet stove. A single fan, powerful yet quiet, efficiently distributes the warm air in the room where the stove is installed, making it warm and cosy within minutes. Depending on how well insulated your home is and how it is laid out, this stove can also heat very large rooms. You can choose the fan power according to your needs. A warm, powerful breeze to heat up your home quickly or a barely perceptible whispering sound if you just need to keep the same temperature.

MCZ Alea Stove

COLORS

MCZ Alea Stove
Metal Bordeaux

COLORS

-Stone Serpentino -Metal Dark -Metal White -Metal Bordeaux

MCZ Alea Stove
Metal White
MCZ Alea Stove
Metal Silver
MCZ Alea Stove
Metal Dark

CERTIFICATIONS

MCZ Alea Stove

CERTIFIED

This stove has been certified 7 stars Flamme Verte.

MCZ Alea Stove

ENERGY EFFICIENCY

This stove is in the A+ energy efficiency class.

MCZ Alea Stove

CONTO TERMICO

This product is eligible for a contribution from the Conto Termico, if installed to replace certain types of existing heating systems.

MCZ Alea Stove

ECODESIGN

This product is already compatible with EU Regulation Ecodesign 2022.

MCZ Alea Stove

TEST STANDARDS

Test standards: EN 14785, BimSchV 2nd stage, Regensburger/ Aachener/ Münchener BStV (Germany), Art 15a B-VG (Austria), LRV (Switzerland)..

MCZ Alea Stove

PULITA SCHEME

This product guarantees high environmental performance, certified 4-star according to the emission and efficiency parameters of the Aria Pulita scheme.
