Elica Rise Hood
RISE HOOD
RISE HOOD
Designed by Elica Design Center

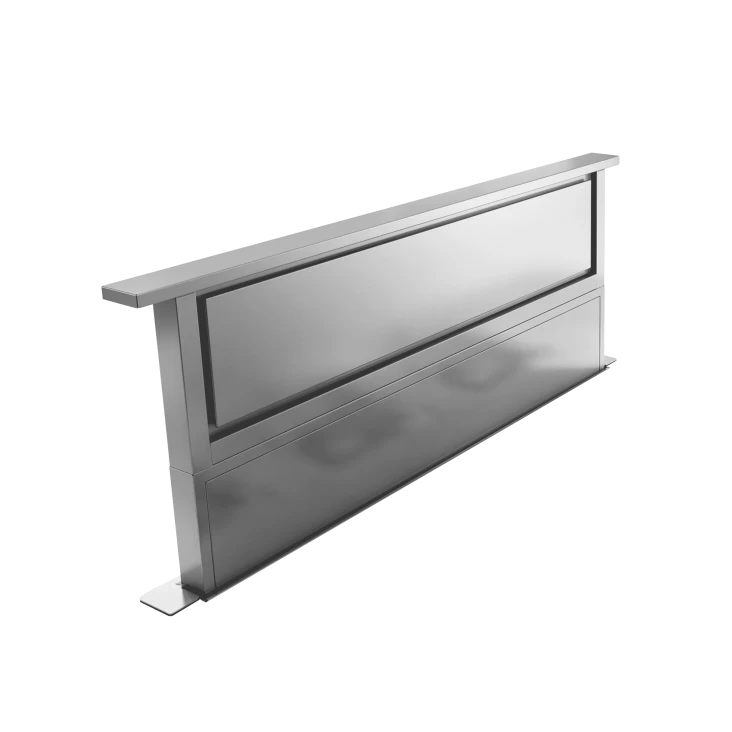

Rise downdraft range hood can be hidden inside the surface of the cooktop when not in use, leaving an open view of your kitchen.
INFORMATION
PRODUCT TYPE
Hood
BRAND
Elica
COLLECTION
Rise
VENTING TYPE
Ducted Only
TOP PERFORMANCE
High fume capture, low noise – the perfect balance. Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM’s with low noise levels, 1.2 - 1.7 sones at working speed.
SERIES
Techne
DUCT TRANSITION
Round 6"
WEIGHT
- 30 : 85.98lb
- 36 : 94.8lb
MODELS
- 30 : ERS630S1
- 36 : ERS636S1
FINISHING
Stainless Steel
VOLTAGE
120 V
WATTAGE
50W
PRODUCTION
Made in Italy
AIRFLOW
600CFM
SONES
1.7 - 6.8
DIMENSIONS (30)
- Width : 30"
- Depth : 12 1/2”
- Height : 14" x 30"
DIMENSIONS (36)
- Width : 36"
- Depth : 12 1/2”
- Height : 14" x 36"
PERIMETER ASPIRATION
The extraction surface is now tucked away. Distributed over the entire perimeter of the hood, the extraction system offers top efficiency. The extraction area is concealed by a panel rendering pure elegance to your hood.
FILTERS
- Dishwasher-safe
- Anodized Aluminum Mesh Filter + Perimeter Aspiration
WARRANTY
2 Years
FREQUENCY
60 Hz
DUCT TRANSITION
3 /₄” x 10“ rectangular or round 6” discharge (3 way directional)
MATERIAL
Steel & Aluminium
CONTROL
External electronic rotating disk
MAXIMUM FREEDOM FOR YOUR KITCHEN DESIGN
When the view out your kitchen window is too spectacular to disrupt with a range hood, Elica’s Rise is the perfect solution. Rise recesses completely out-of-sight into the countertop when not in use, but when it’s time to cook, Rise elevates a full 14” above the countertop (almost twice the height of competitors), for added ventilating efficiency.
On top of that, Elica added Perimeter Aspiration Technology, which increases suction by 35% and actually draws air from the front burner effectively, to create the best functioning downdraft on the market. Rise comes equipped with a powerful 600 CFM internal blower, which is operated by an electronic rotating control that is mounted into the countertop or cabinet face. For maximum flexibility, the blower can be rotated to the opposite side to make room for a floor-mounted range. Ducted installation only.
