Novy Wall Mounted Vision 7850 Cooker Hoods
NOVY WALL MOUNTED VISION 7850 COOKER HOODS
NOVY WALL MOUNTED VISION 7850 COOKER HOODS
Just That Little Bit More In Terms Of Design
FEATURES
ECOSMART
Ecosmart : extra quiet, super-efficient, sustainable, energy-friendly products.
COOKER HOODS WITH A MOTOR (DIRECT OUTLET)
The arrangement in which is a cooker hood has an outlet to the outside.
INSTALLATION HEIGHT 75CM
The installation height is the distance between the hob and the cooker hood. The installation height is very important for optimal functioning of the cooker hood. Maximum installation heights are indicated for each model
PERIPHERAL EXTRACTION
By placing a bottom plate at the bottom of the cooker hood, extraction is concentrated at the edges. In this narrowed opening there is also an acceleration in the extraction rate. The smaller the area, the faster the air moves. This acceleration improves the efficiency of the extraction system.
INFORMATION
BRAND
Novy
PRODUCT TYPE
Cooker Hoods
TYPE NUMBER
7850
MATERIAL
Stainless Steel & Black Glass
OPTION
Option to install without a chimney with an outlet at the back
LIGHTING
- Soft-ON/OFF : No
- Functional Light Dimmable : No
- Number Of Functional Lights : 2
- Color Functional Light (K) : 2700
- Total Energy Consumption Functional Light (W) : 7
ENERGY LABEL
- Energy Efficiency class (EEIhood) : A+
- Lighting Efficiency class (LEhood) : A
- Fluid Dynamic Efficiency class (FDEhood) : A
- Grease Filtering Efficiency class (GFEhood) : C
- Annual Energy Consumption (kWh/year) (AEChood) : 46.2
CLEAN
Modern, Clean Look
POSITION EXHAUST
Top / Back

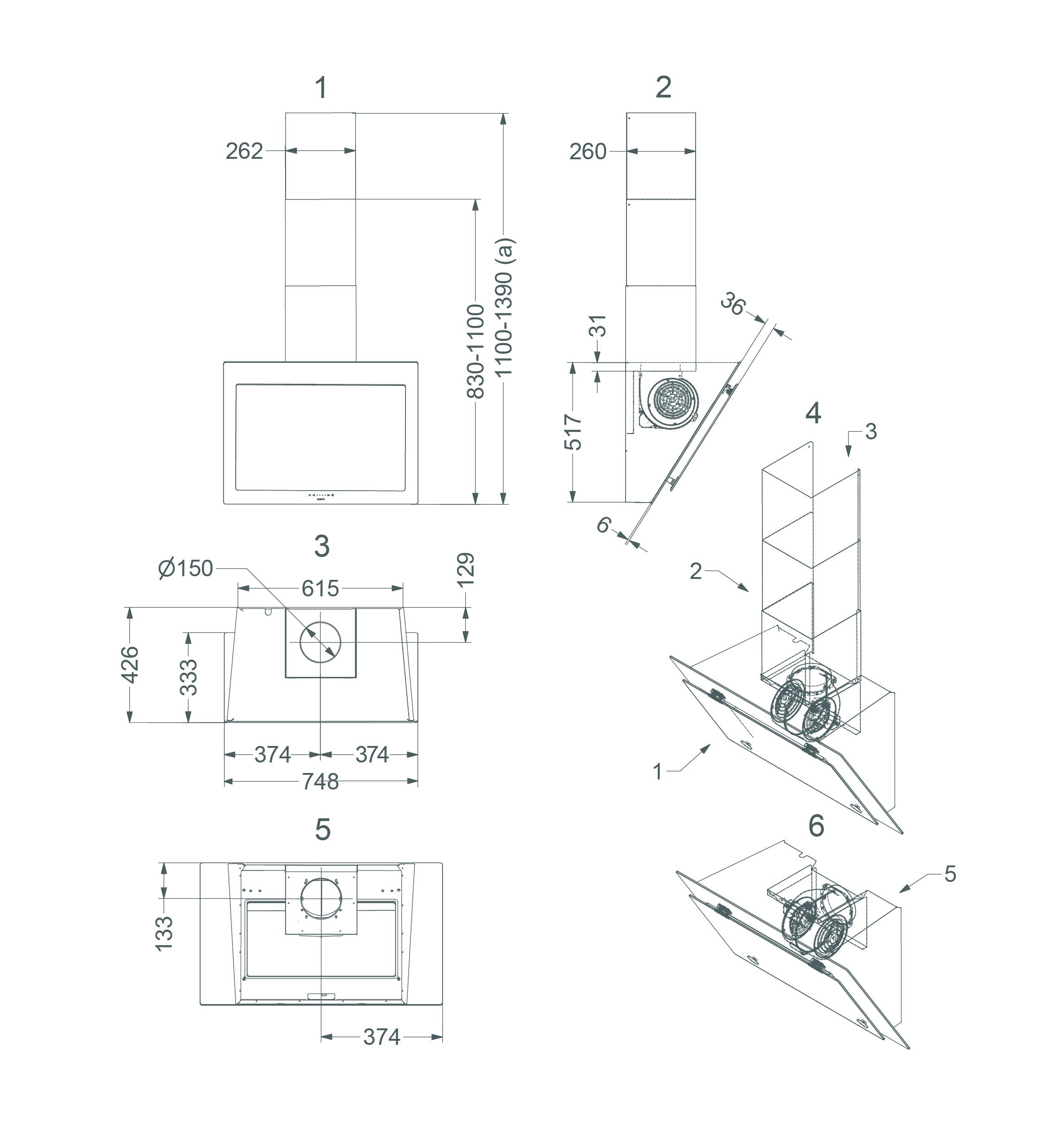

DIMENSIONS
- Diameter Outlet : 150 mm
- Advised Mounting Height Induction Hobs (Hmin-hmax) : 500 - 750 mm
- Product Dimensions Exhaust (Wxdxhmin-hmax) : 748 x 426 x 830 - 1100 mm
- Product Dimensions Recirculation (Wxdxhmin-hmax) : 748 x 426 x - mm
- Max Height Optional Chimney Exhaust : 1390 mm
- Advised Mounting Height Ceramic Hobs (Hmin-hmax) : 500 - 750 mm
- Advised Mounting Height Gas Hobs (Hmin-hmax) : 650 - 750 mm
AIRFLOW AND NOISE LEVEL
- Airflow Duct Out Speed 1 (M³/h) : 248
- Airflow duct out speed 2 (m³/h) : 333
- Airflow duct out speed 3 (m³/h) ; 495
- Airflow duct out max powerspeed (m³/h) (Qboost) : 788
- Sound pressure duct out speed 1 (dB(A)) : 25
- Sound pressure duct out speed 2 (dB(A)) : 33
- Sound pressure duct out speed 3 (dB(A)) ; 40
- Sound pressure duct out at max powerspeed (dB(A)) : 51
MAXIMUM POWER
325 w
VOLTAGE APPLIANCE
230 v
POWER CONSUMPTION IN STAND-BY-MODE (PS) (W)
0.29
POWER CONSUMPTION IN OFF-MODE (PO) (W)
No
FUNCTIONS AND FEATURES
- Motor : Integrated
- Auto Stop : Yes
- Grease Filter : 7830020
- Number of Grease Filters : 2
- Sound Absorber : Integrated
- Recirculation : Not Applicable
- InTouch Function : Optional
- Number Of Speeds : 3 + Power
- Delayed Switch Off (minutes) : 10
- Automatic Power Revert (minutes) : 6
- Grease Filter Cleaning Indication : Yes
- Recirculation Flter Cleaning Indication : No
FREQUENCY (HZ)
50 hz
NET WEIGHT
31 kg
