Novy Canopy Crystal 26050 Cooker Hood
CANOPY CRYSTAL COOKER HOOD
CANOPY CRYSTAL COOKER HOOD
Crystal 60 cm White
Integrated in a decorative chimney or alcove.
FEATURES
COOKER HOODS WITH A MOTOR (DIRECT OUTLET)
The arrangement in which is a cooker hood has an outlet to the outside.
INTOUCH
InTouch offers the option to control your Novy cooker hood from your Novy induction hob.
INSTALLATION HEIGHT 75CM
The installation height is the distance between the hob and the cooker hood. The installation height is very important for optimal functioning of the cooker hood. Maximum installation heights are
indicated for each model.
CLICK-AND-FIX
Simple assembly with a click system so the Pure’line clicks into the lowered ceiling, leaving only four locking screws to be tightened.

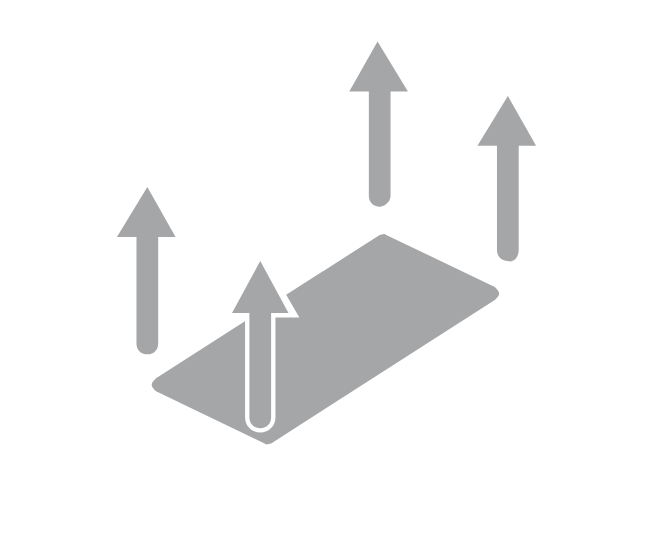

PERIPHERAL EXTRACTION
By placing a bottom plate at the bottom of the cooker hood, extraction is concentrated at the edges. In this narrowed opening there is also an acceleration in the extraction rate. The smaller the area, the faster the air moves. This acceleration improves the efficiency of the extraction system.
INFORMATION
BRAND
Novy
PRODUCT TYPE
Cooker Hood
PRODUCTION
Made in Belgium
COLLECTION
Canopy
CONTROL METHOD
Push Buttons
ENVIRONMENT
Indoor
PRODUCT NO.
26050
ENERGY LABEL
- Energy Efficiency class (EEIhood) : B
- Lighting Efficiency class (LEhood) : A
- Fluid Dynamic Efficiency class (FDEhood) : A
- Grease Filtering Efficiency class (GFEhood) : D
- Annual Energy Consumption (kWh/year) (AEChood) : 54.8
MOTOR
Integrated
GREASE FILTER
26050020
SOUND ABSORBER
Integrated
RECIRCULATION
Optional
AUTOMATIC POWER REVERT (MINUTES)
6
DELAYED SWITCH OFF (MINUTES)
10/30
AUTO STOP
Yes
INTOUCH FUNCTION
Standard
NUMBER OF SPEEDS
4
DIMENSIONS
- Width flange (mm) : 10
- Diameter outlet (mm) : 150
- Position exhaust : Right / Top / Left / Back / Front
- Min dimensions cabinet (WxDxH) (mm) : x 600 x
- Product dimensions (WxDxH) (mm) : 560 x 301 x 330
- Dimensions cut-out opening (WxD) (mm) : 545 x 286
- Advised mounting height gas hobs (Hmin-Hmax) (mm) : 650 - 750
- Advised mounting height ceramic hobs (Hmin-Hmax) (mm) : 600 - 750
- Advised mounting height induction hobs (Hmin-Hmax) (mm) : 650 - 750
RECIRCULATION FILTER CLEANING INDICATION
Yes
GREASE FILTER CLEANING INDICATION
Yes
NUMBER OF GREASE FILTERS
1
MAXIMUM POWER (W)
231
FREQUENCY (HZ)
50
NET WEIGHT
12.5 kg
LENGTH POWER SUPPLY CABLE (M)
1
SOFT-ON/OFF
No
VOLTAGE APPLIANCE
230 v
AIRFLOW AND NOISE LEVEL
- Airflow duct out speed 1 (m³/h) : 207
- Airflow duct out speed 2 (m³/h) : 282
- Airflow duct out speed 3 (m³/h) : 386
- Sound pressure duct out speed 1 (dB(A)) : 27
- Sound pressure duct out speed 2 (dB(A)) : 33
- Sound pressure duct out speed 3 (dB(A)) : 40
- Airflow duct out max powerspeed (m³/h) (Qboost) : 600
- Sound pressure duct out at max powerspeed (dB(A)) : 49
POWER CONSUMPTION IN STAND-BY-MODE (PS) (W)
0.23
TOTAL ENERGY CONSUMPTION FUNCTIONAL LIGHT (W)
7
NUMBER OF FUNCTIONAL LIGHTS
2
COLOR FUNCTIONAL LIGHT (K)
3000
COLOR AMBIENT LIGHT (K)
Not Applicable
FUNCTIONAL LIGHT DIMMABLE
Yes
DOWNLOADS
AMBIENT LIGHTING TYPE
Not Applicable
FUNCTIONAL LIGHTING TYPE
Led Strip
