Jolly Mec Caminetti, S.p.a.

Jolly Mec Paddy Stove

PADDY 8 KW 10 KW STOVE

Jolly Mec Paddy Stove

PADDY 8 KW 10 KW STOVE

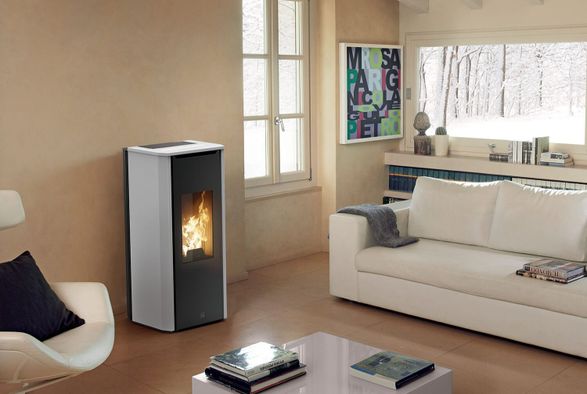

Paddy is a modern, characterful pellet stove without the traditional visible front grills.

INFORMATION

BRAND

Jolly Mec

PRODUCT TYPE

Stove

SILENT FUNCTION

Minimizes ventilation for quieter operation.

MODEL NAME

Paddy 8 Kw

HERMETICITY

Yes

FEATURES

- Air
- Pellet
- Stoves

PV CLASSIFICATION - FR STARS

7

PERFORMANCE (%)

92,8 - 90.6 %

DIMENSIONS

- Height : 118.1 cm
- Length : 48.9 cm
- Width : 50.3 cm

BURNED POWER

9 kw

SEASONAL ENERGY YIELD

80 %

SMOKE OUTLET DIAMETER

80 mm

AIR INLET DIAMETER

50 mm

TANK CONTENT

15 kg

MINIMUM DRAUGHT

10 Pa

NOMINAL POWER

8.2  kw

Jolly Mec Paddy Stove

DM CLASSIFICATION NO. 186 - STARS (ITA)

4

AVERAGE FLUE GAS TEMPERATURE (°C)

167.8 °C

CONTO TERMICO (ITA)

Yes

ECODESIGN (EU)

Yes

DTA (FR)

Yes

OIAT (CH)

Yes

FIREFLECTOR COMBUSTION CHAMBER

Optimizes combustion, reduces emissions and improves the vision of the flame.

DUCTABLE

To efficiently heat several rooms in your house while making the most of the power of just one product.

DETAIL

It is offered in 2 powers, 8 and 10 kW and in 3 finishes: black, white or burgundy steel, with a majolica top. PADDY is ideal for heating medium-sized homes by fitting perfectly in all rooms of the house with the possibility of diffusing hot air to other rooms (optional). PADDY can be installed with rear or simple top flue outlet.

BLMSCHV II (DE)

Yes

BAFA (DE)

Yes

MULTILINGUAL RADIO CONTROL

The multilingual touch control unit controls all the functions of the stove.

WEIGHT

105 kg

IIE - ENERGY EFFICIENCY INDEX

121

SAFETY VALVE

Safety valve for venting excess gas pressure.

COLORS

Jolly Mec Paddy Stove
Bordeaux
Jolly Mec Paddy Stove
Black
Jolly Mec Paddy Stove
White

OUTLET

SMOKE OUTLET

All Jolly Mec products are supplied with a smoke outlet kit already fitted for simplified installation. Depending on the chosen product and the different living solutions, the most suitable smoke outlet can be used.

UPPER SMOKE OUTLET

The upper flue outlet is located on the top of the product rather than at the back. It connects to an upper flue which reduces the depth of the product and consequently maximizes living space.

Jolly Mec Paddy Stove

REAR FLUE OUTLET

Installation with rear flue outlet is done from the back of the product and allows installation without the view of the flue pipe inside the room.

Jolly Mec Paddy Stove

COAXIAL SMOKE OUTLET

Installation with coaxial flue is ideal for passive and low-energy buildings. Combustion air and flue gases are introduced separately in a single duct, avoiding an air inlet in the wall.

Jolly Mec Paddy Stove
