Novy Panorama Pro 90 cmBlack
FEATURES
COOKER HOODS WITH A MOTOR (DIRECT OUTLET)
The arrangement in which is a cooker hood has an outlet to the outside.
POWER FUNCTION
Each zone has a Power function significantly increasing the power. For example, this is ideal to bring a large amount of water to the boil.
BRIDGE FUNCTION
The bridge function allows you to link two adjoining zones so that you can control them in one movement. Very handy for large pots and pans. The linking goes automatically in the Pro and Power range.
GRILL FUNCTION
When using this function the Bridge function is automatically activated to create a larger cooking area. This function is perfect for grilling, with a specially adapted power distribution which is ideal for use with cast-iron cookware.
KEEP-WARM FUNCTION
The keep-warm function makes it very easy to maintain a constant temperature. All devices have a keep-warm function at 70°C. Appliances in the Power and Pro ranges also have a melting setting at 42°C and a keep-warm function at 94°C.
INFORMATION
BRAND
Novy
PRODUCT TYPE
Hob
PRODUCTION
Made in Belgium
EAN
5414425133949
NUMBER OF COOKING ZONES
4 Zones
ENVIRONMENT
Indoor
PRODUCT NO.
1821
ENERGY LABEL
- Energy Efficiency class (EEIhood) : B
- Fluid Dynamic Efficiency class (FDEhood) : B
- Grease Filtering Efficiency class (GFEhood) : C
- Annual Energy Consumption (kWh/year) (AEChood) : 50.5
MOTOR/SOUND ABSORBER
Integrated
NUMBER OF MOTORS
2

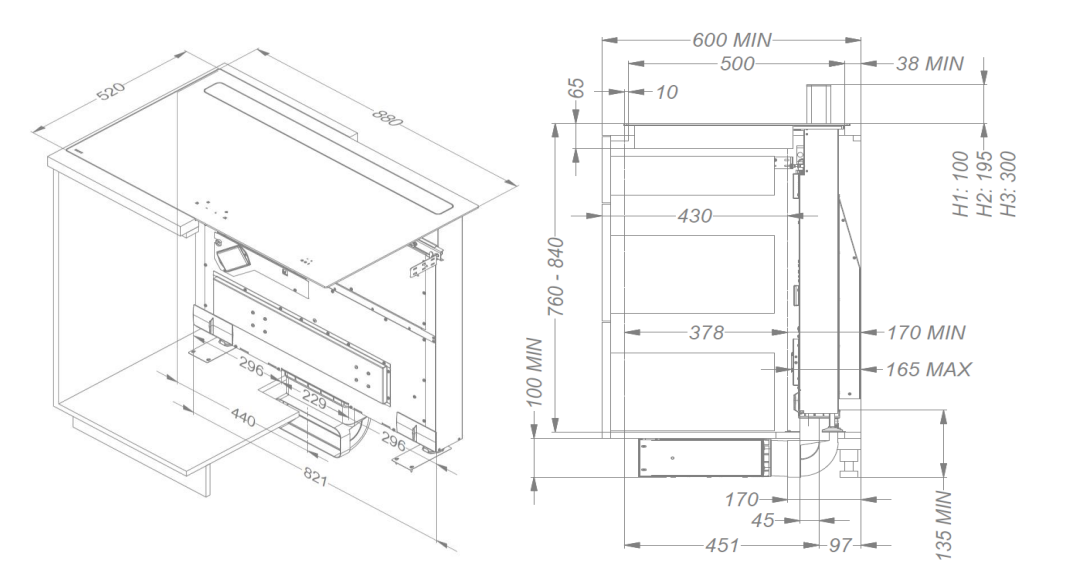

DIMENSIONS
- Width : 880 mm
- Depth : 520 mm
- Height : 57 mm
DIAMETER OUTLET
222x89 mm
POSITION EXHAUST
Under
CUT-OUT WORKTOP
- Width : 860 mm
- Depth : 500 mm
RECIRCULATION FILTER CLEANING INDICATION
Yes
DIMENSIONS CUT-OUT WITH INSET
- Width : 884 mm
- Depth : 524 mm
- Height : 6 mm
AUTO STOP
Delayed Switch Off
DELAYED SWITCH OFF
Yes
AIRFLOW AND NOISE LEVEL
- Free airflow (m³/h) : 1160
- Airflow duct out max powerspeed (m³/h) (Qboost) : 691
- Sound power duct out at minimum speed (dB(A)) (LWAmin) : 65
- Sound power duct out at max powerspeed (dB(A)) (LWAboost) : 65
RECIRCULATION
Optional
INTOUCH FUNCTION
Not Applicable
NET WEIGHT
50 kg
FREQUENCY (HZ)
50-60
POWER CONSUMPTION
- Power consumption in off-mode (Po) (W) : 0
-Power consumption in stand-by-mode (Ps) (W) : 0,70
LENGTH POWER SUPPLY CABLE (M)
1.2
POWER PER ZONE (MIN. - MAX. / SUPER POWER) (W)
111 - 2100/3700
MAXIMUM POWER (W)
250+7400
VOLTAGE APPLIANCE
230/400
DELAYED SWITCH OFF (MINUTES)
30/10
GREASE FILTER CLEANING INDICATION
Yes
TOWER HEIGHT
- 10 cm
- 20 cm
- 30 cm
DETAIL
- Preset auto-function
- Discrete and elegant design
- Surface and flush installation possible
- 4 cooking zones + practical functions
- Semi-transparent extraction tower disappears invisibly into the hob
- Direct extraction at source, thanks to the adjustable height: 10 cm, 20 cm, 30 cm
NUMBER OF GREASE FILTERS
2
MAINTAIN
Easy To Maintain
