QUADRO + CERAMIC STOVES
QUADRO + CERAMIC STOVES

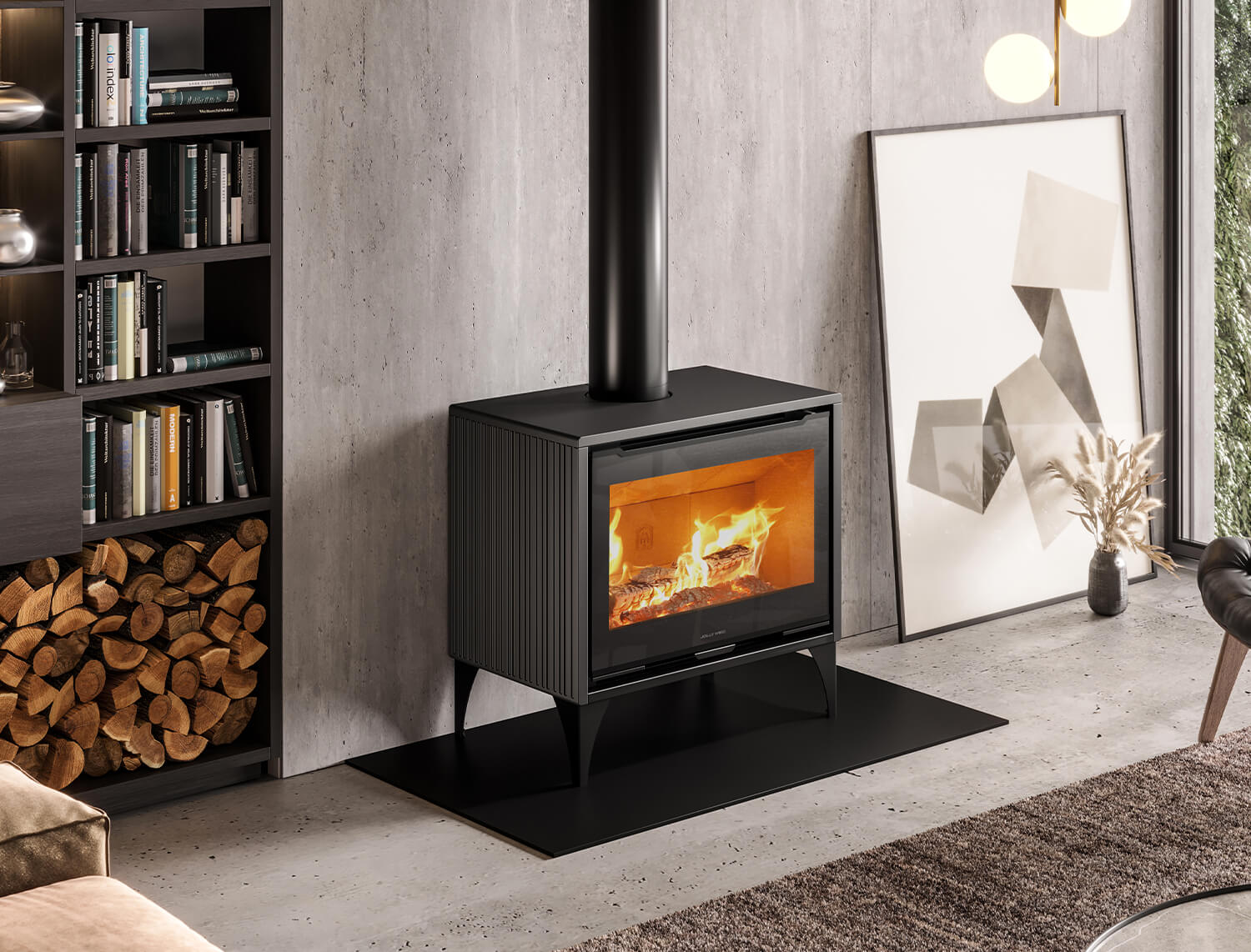

When design meets versatility: the QUADRO+ modular wood stove is designed to adapt perfectly to any heating and space requirements. QUADRO+ ceramic wears the exclusive handcrafted Stone Grey ceramic finish with great elegance: the ideal solution to lend an aura of class to any room while enjoying all the charm of wood.
Available in 80-cm size, QUADRO+ ceramic can be installed as a floor-standing stove via adjustable feet or with a 140-cm premium stoneware bench, equipped with a convenient integrated wood holder.Whatever composition you choose, QUADRO+ ceramic is able to design a cozy space created to measure, where you can feel truly at home.
INFORMATION
BRAND
Jolly Mec
PRODUCT TYPE
Stove
PRODUCTION
Made in Italy
COLLECTION
Quadro
MODEL NAME
Quadro+ Ceramic 80
WEIGHT (KG)
186 - 214
CONTO TERMICO (ITA)
No
NOMINAL POWER (KW)
11
MEASURES
- Height : 62.5 cm
- Length : 85.6 cm
- Width : 50.8 cm
OIAT (CH)
Yes
DTA (FR)
No
BURNED POWER (KW)
14
HERMETICITY
No
DETAIL
All QUADRO+ models are designed to ensure maximum use of heat: natural convection, or forced ventilation. Combustion control via the central lever allows you to feed the flame according to your needs. Particularly high-performing and efficient, it complies with the strictest regulations on emissions. To optimize comfort and consumption, it is possible to take combustion air directly from the outside through special fittings. Suitable for passive houses.
SEASONAL ENERGY YIELD (%)
69
USE
Heating
ECODESIGN (EU)
Yes
DM CLASSIFICATION NO. 186 - STARS (ITA)
4
IIE - ENERGY EFFICIENCY INDEX
104
SMOKE OUTLET DIAMETER
200 mm
COLOR
Stone Grey
AVERAGE FLUE GAS TEMPERATURE (°C)
276.6
MINIMUM DRAUGHT (PA)
10
AIR INLET DIAMETER
100 mm
TANK CONTENT (KG)
No
ENERGY CLASS(SCALE FROM G TO A++)
A
FEATURES
- Stoves
- Pellet
- Water
BAFA (DE)
No
BLMSCHV II (DE)
Yes
TECHNICAL FEATURES
ELECTRONIC CONTROL UNIT
Controls air ventilation.
FOR PASSIVE HOUSES
The combustion air is taken from the outside through the direct connection with the air intake
HEAT EVEN WITHOUT ELECTRICITY
Heat even in the event of a power outage. The innovative heat exchanger absorbs the energy of combustion to continue heating the house naturally.
FORCED AIR OR NATURAL AIR CIRCULATION
At the upper part of the top, heat is directed to the front for better distribution. Two solutions: a rapid forced-air heating system with fan or a natural radiant heating system.
AIRSCREW SYSTEM
Increases heat exchange efficiency and balances flue gas extraction. The patented double spiral propeller system (Airscrew System) allows additional heat to be recovered at the outlet of the fireplace.
FIREFLECTOR COMBUSTION CHAMBER
Optimizes combustion, reduces emissions and improves the vision of the flame.
OUTLET
SMOKE OUTLET
All Jolly Mec products are supplied with a smoke outlet kit already fitted for simplified installation. Depending on the chosen product and the different living solutions, the most suitable smoke outlet can be used.
UPPER SMOKE OUTLET
The upper flue outlet is located on the top of the product rather than at the back. It connects to an upper flue which reduces the depth of the product and consequently maximizes living space.
REAR FLUE OUTLET
Installation with rear flue outlet is done from the back of the product and allows installation without the view of the flue pipe inside the room.
COAXIAL SMOKE OUTLET
Installation with coaxial flue is ideal for passive and low-energy buildings. Combustion air and flue gases are introduced separately in a single duct, avoiding an air inlet in the wall.
CERTIFICATION
4 STARS
Decree issued by the Italian Ministry for the Environment for the certification in quality classes of biomass heat generators. Environmental certification of generators fuelled by solid biomass fuels; Decree issued by the Italian Ministry of the Environment 7 November 2017, no. 186.
EN 13240
The Standard Specifies Design, Manufacturing, Construction, Safety And Performance (Efficiency And Emissions), Instruction And Marking Requirements, Together With Associated Test Methods For Type Testing Of Solid Fuel Fired Stoves. The Standard Applies To Non-mechanically Fuelled Appliances And Does Not Apply To Appliances With Fan-assisted Combustion Air Supply.
CONTO TERMICO 2.0
Incentive Granted By The Gse For The Promotion Of Thermal Energy From Renewable Sources, Following The Replacement Of Certain Types Of Existing Plants. (Italy)
ECODESIGN 22
All Jolly Mec Pellet And Wood-burning Stoves, Fireplaces And Inserts Are Compliant With Regulation 2015/1185 (Ecodesign). Regulation 2015/1185 Introduces Specific Design Criteria And Will Come In Force Since 1 January 2022.
ENERGY CLASS A+
Energy Efficiency Class. * On A Scale Of G To A++.
OIAT
Swiss anti-pollution certification.
BIMSCHV
Jolly Mec Products Meet The Requirements Of The German Bimschv2 Standard
