Novy Novy Canopy Crystal 26080 Hood

NOVY CANOPY CRYSTAL 26080 HOOD

Novy Novy Canopy Crystal 26080 Hood

NOVY CANOPY CRYSTAL 26080 HOOD

Type number: 26080

Integrated in a decorative chimney or alcove

FEATURES

CLICK-AND-FIX

Simple assembly with a click system so the Pure’line clicks into the lowered ceiling, leaving only four locking screws to be tightened.

Novy Novy Canopy Crystal 26080 Hood

INTOUCH

InTouch offers the option to control your Novy cooker hood from your Novy induction hob.

Novy Novy Canopy Crystal 26080 Hood

COOKER HOODS WITH A MOTOR (DIRECT OUTLET)

The arrangement in which is a cooker hood has an outlet to the outside.

Novy Novy Canopy Crystal 26080 Hood

INSTALLATION HEIGHT 75CM

The installation height is the distance between the hob and the cooker hood. The installation height is very important for optimal functioning of the cooker hood. Maximum installation heights are
indicated for each model.

Novy Novy Canopy Crystal 26080 Hood

PERIPHERAL EXTRACTION

By placing a bottom plate at the bottom of the cooker hood, extraction is concentrated at the edges. In this narrowed opening there is also an acceleration in the extraction rate. The smaller the area, the faster the air moves. This acceleration improves the efficiency of the extraction system.

Novy Novy Canopy Crystal 26080 Hood

INFORMATION

PRODUCT TYPE

Hood

DELAYED SWITCH OFF (MINUTES)

10/30

PRODUCTION

Made in Belgium

EAN

5414425218875

LIGHTING

- Soft-ON/OFF : On
- Functional lighting type : Led Strip
- Number of functional lights : 2
- Functional light dimmable : Yes
- Color functional light (K) : 3000
- Ambient lighting type : Not Applicable
- Color ambient light (K) : Not Applicable
- Total energy consumption functional light (W) : 14

NUMBER OF SPEEDS

4

DELAYED SWITCH OFF (MINUTES)

10/30

Novy Novy Canopy Crystal 26080 Hood

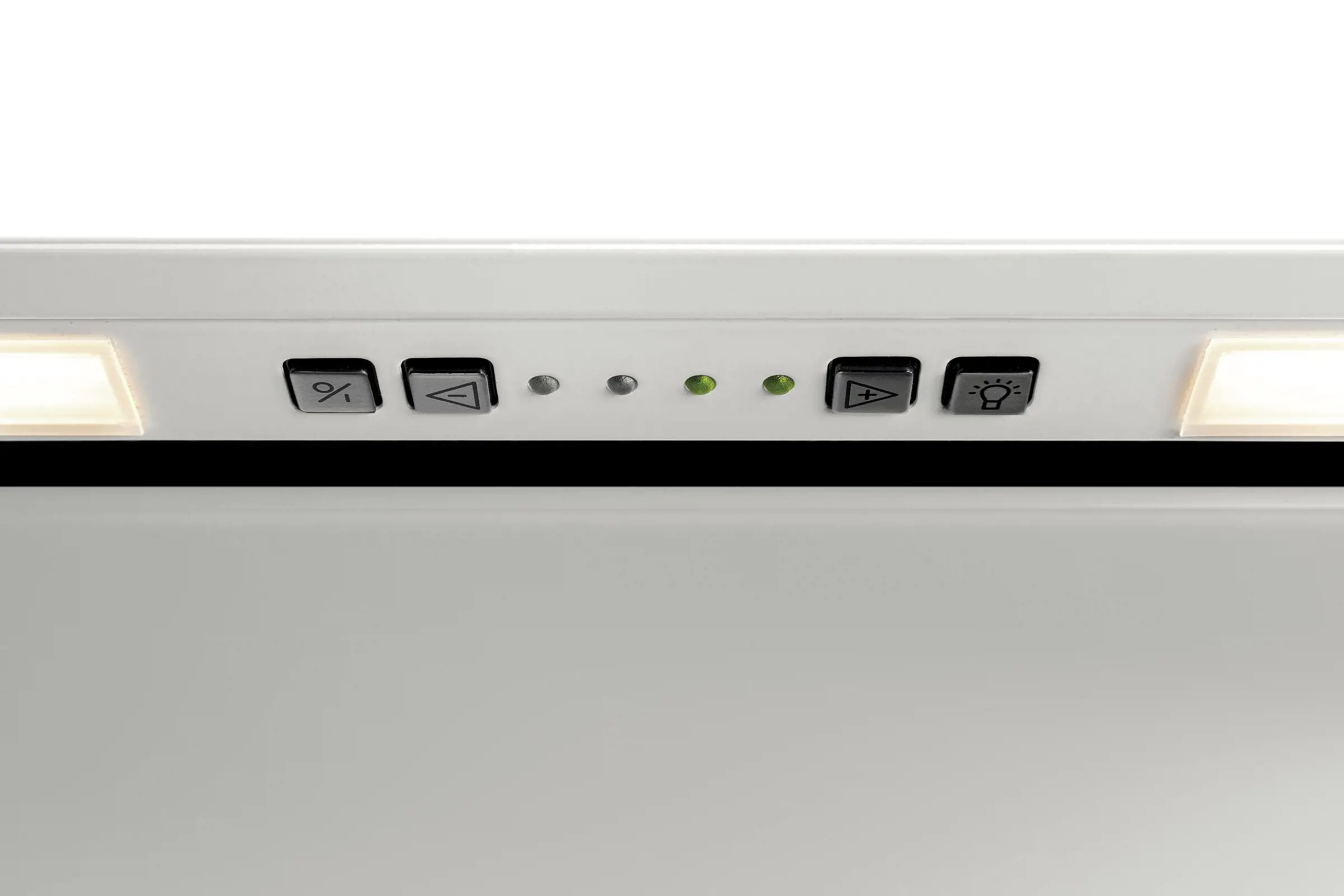

CONTROL METHOD

Push Buttons

PRODUCT NO.

26080

MIN DIMENSIONS CABINET (WXDXH) (MM)

x 600 x

DIMENSIONS CUT-OUT OPENING (WXD) (MM)

810 x 290

PRODUCT DIMENSIONS (WXDXH) (MM)

833 x 313 x 308

WIDTH FLANGE (MM)

14

DIAMETER OUTLET (MM)

150

ADVISED MOUNTING HEIGHT CERAMIC HOBS (HMIN-HMAX) (MM)

600 - 750

MOTOR

Integrated

POSITION EXHAUST

Top

ADVISED MOUNTING HEIGHT INDUCTION HOBS (HMIN-HMAX) (MM)

650 - 750 mm

ENERGY LABEL

- Energy Efficiency class (EEIhood) : B
- Lighting Efficiency class (LEhood) : A
- Fluid Dynamic Efficiency class (FDEhood) : A
- Grease Filtering Efficiency class (GFEhood): D
- Annual Energy Consumption (kWh/year) (AEChood) : 59.3

CONTROL METHOD

Push Buttons

NUMBER OF SPEEDS

4

NET WEIGHT

15 kg

FREQUENCY (HZ)

50

Novy Novy Canopy Crystal 26080 Hood

POWER CONSUMPTION IN STAND-BY-MODE (PS) (W)

0.23

LENGTH POWER SUPPLY CABLE (M)

1

GREASE FILTER CLEANING INDICATION

Yes

MAXIMUM POWER (W)

238

VOLTAGE APPLIANCE

230

AUTO STOP

Yes

GREASE FILTER

26050020

RECIRCULATION

Optional

INTOUCH FUNCTION

Standard

RECIRCULATION FILTER CLEANING INDICATION

Yes

AIRFLOW AND NOISE LEVEL

- Airflow duct out speed 1 (m³/h) : 207
- Airflow duct out speed 2 (m³/h) : 276
- Airflow duct out speed 3 (m³/h) : 371
- Sound pressure duct out speed 1 (dB(A)) : 28
- Sound pressure duct out speed 2 (dB(A)) : 33
- Sound pressure duct out speed 3 (dB(A)) : 39
- Airflow duct out max powerspeed (m³/h) (Qboost) : 592
- Sound pressure duct out at max powerspeed (dB(A)) : 49

AUTOMATIC POWER REVERT (MINUTES)

6

SOUND ABSORBER

Integrated

NUMBER OF GREASE FILTERS

1

Novy Novy Canopy Crystal 26080 Hood
