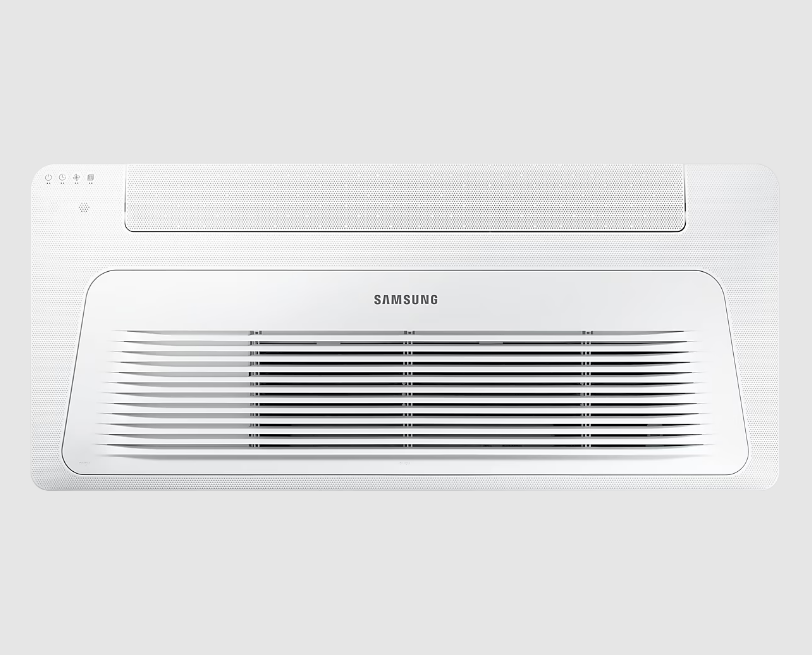

Samsung 3.5 Indoor Air Conditioner Windfree™ AJ035TN1DKH/EA
3.5 Indoor Air Conditioner Windfree™ Aj035tn1dkh/ea
3.5 INDOOR AIR CONDITIONER WINDFREE™ AJ035TN1DKH/EA
Samsung Free Joint Multi (FJM) Air Conditioning systems are designed to be flexible – allowing you to heat or cool multiple areas in your home from the one air conditioning system.
FEATURES
THOUGHTFUL DESIGN
MEPS Compliant - Air Conditioners sold in Australia are required to meet Minimum Energy Performance Standards (MEPS) set by the Government..
ALL ROUND SIMPLER & INTUITIVE CONTROL
Controller (model MWR-WG00JN), sold separately
Intuitively control performance with our controller and know where the air is flowing at all times. The MWR-WG00JN Controller* offers functionality control - the display allows you to set an on/off countdown timer, turn on/off, and view the filter cleaning alert indicator. Other controller options available.
COOL DOWN FAST, WITHOUT THE COLD BLAST
Stay comfortably cool with WindFree™ Cooling
WindFree™ is designed to gently and quietly disperse are through 10,000 micro air holes, creating a “still air” environment and preventing the unpleasant feeling of cold wind on your skin. The advanced airflow structure also means it cools a wider and larger area more evenly.
AUTOMATIC TEMPERATURE CONTROL
Smart Comfort Operation
The 1 Way WindFree™ Cassette continually monitors the temperature and relative humidity while considering the room conditions.
It then automatically switches between operating modes to keep everyone feeling comfortable without needing to take manual control*.
REST ASSURED WITH SAMSUNG QUALITY
5 Year Parts and Labour Warranty
Peace of mind knowing we have you covered with Samsung's 5 year parts and labour warranty for residential applications. For full terms and conditions visitSamsung Warranty
ECOOLS EVERY CORNER EVENLY
Long Wind and Auto Swing Functions
Create a comfortable environment with an even temperature in every corner of the room. The 1 Way WindFree™ Cassette has a 100mm big blade than can deliver cool air over a long distance, reaching up to 8 meters.*
The blade has a wide operating angle, so it helps to cool the space rapidly and evenly with minimal hot spots or cold spots. Combined with the Auto Swing Function automatically directs cool air with both left-right and up-down functionality.
EXPERIENCE ULTIMATE COMFORT
Powerful, Reliable Performance
The FJM NASA air conditioning system delivers a balanced, reliable performance.
The outdoor unit provides greater efficiency and low levels of vibration for a smoother and quieter all-round performance with a twin rotary BLDC compressor. The smart compressor design and premium moving parts of the Samsung FJM air conditioning system delivers a balanced, reliable performance.
COOL YOUR HOME FROM ANYWHERE
Wi-Fi and the SmartThings app
Connect your Samsung AC to your WiFi network using Wi-Fi kit MIM-H04AN, (sold separately). Control your home air conditioner from anywhere, at any time using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch.
The Wi-Fi kit helps you to centrally control your Samsung TV, appliances and other compatible smart devices. All you need to do is download the Samsung SmartThings App* to easily check the list of connected compatible devices, name and status.
INFORMATION
BRAND
Samsung
PRODUCT TYPE
Air Conditioner
TYPE
Wind-Free Slim 1-way
MODEL NAME
Indoor Unit : AJ035TN1DKH/EA
DRAIN CONNECTION SIZE
VP20 (OD 25,ID 20)
POWER SUPPLY
- Indoor (V) : 1.5 ~ 2.5
- Outdoor (V) : 0.75 ~ 1.50
PRODUCTION
Made in India
CURRENT INPUT (NOMINAL)
0.3 A
NET WEIGHT
9.5 kg
SHIPPING WEIGHT
12.5 kg
DIMENSIONS (INDOOR UNIT)
- Height : 135 mm
- Width : 970 mm
- Depth : 410 mm
SHIPPING DIMENSIONS
- Height : 231 mm
- Width : 1198 mm
- Depth : 500 mm
AIRFLOW
Mode : HP
CONVENIENCE
1,2,220-240,50/60
REFRIGERANT
- Type : R410A
- Required Circuit Size, A : EEV NOT INCLUDED
PANEL UNIT DIMENSION
- Height : 122 mm
- Width : 1262 mm
- Depth : 5660 mm
PANEL SHIPPING DIMENSION
- Height : 231 mm
- Width : 1198 mm
- Depth : 500 mm
PANEL NET WEIGHT
4.3 kg
PANEL SHIPPING WEIGHT
4.3 kg
NOISE LEVEL
- Sound Power : 55 dBA
- Sound Pressure : 37 / 35 / 30 dBA
PANEL MODEL
PC1NWFMAN
POWER INPUT (NOMINAL)
30 W
SMART WIFI KIT
Yes
GAS PIPE (Φ)
9.52 mm (3/ in.)
NOISE LEVEL (INDOOR)
- Drain Pump : Built in
- Sound Pressure Level (Indoor, Low), dBA : 750/24
- Sound Pressure Level (Indoor, Quiet Mode), dBA : Option
RATED CAPACITY
- Cooling [Btu/h] : 11,900 Btu/h
- Heating [Btu/h] : 13,000 Btu/h
- Cooling (Min / Std / Max) : 3.5 kW
- Heating (Min / Std / Max) : 3.8 kW
SMART WIFI KIT
Yes
SMARTTHINGS APP SUPPORT
Yes
INDOOR UNIT FAN
- Type : Crossflow Fan
- Motor (Output) [W] : 27 x 1 W
- Air Flow Rate (High / Mid / Low) [CMM] : 9.0/8.2/7.2 CMM
-Air Flow Rate (High / Mid / Low) [L/S] :150/137/120
DETAIL

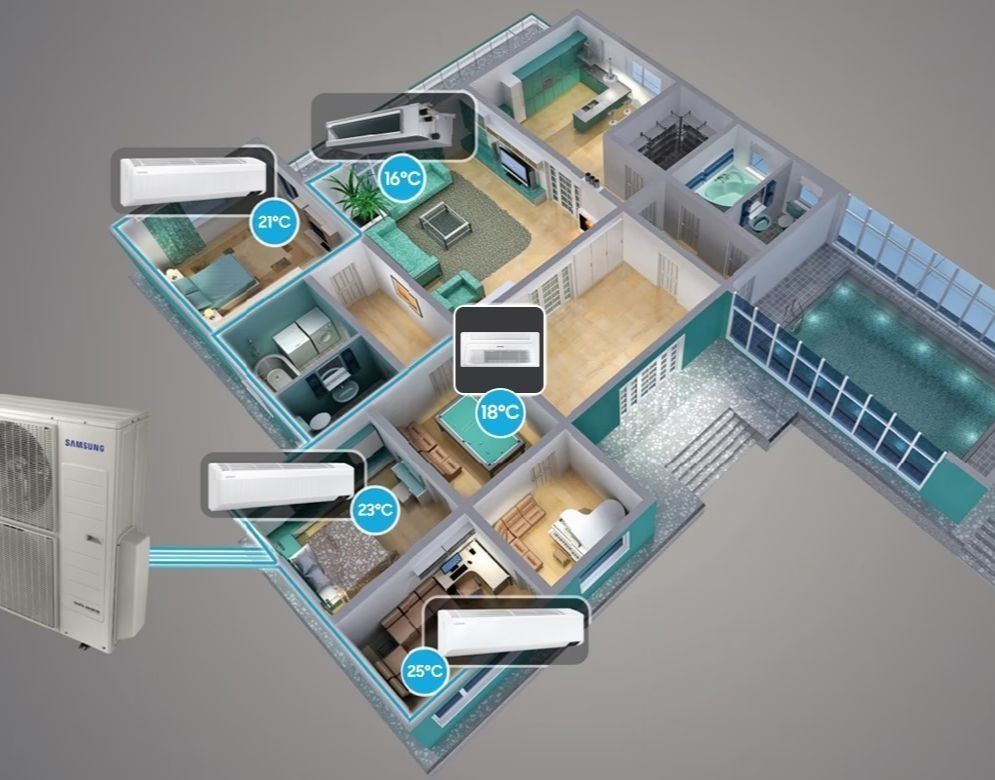

The space-saving FJM System consists of three main components; an outdoor unit; a number of compatible indoor unit(s); and controllers.*
The flexibility of our FJM systems means that you can have up to 5 indoor units connected to a singular outdoor unit. They are compatible with a variety of indoor types, so you can choose the combination that is optimal for you. You can also set different temperatures on each indoor unit, giving you ultimate control.**
LIQUID PIPE (Φ)
6.35 mm (1/4 in.)
DOWNLOADS
↓ User Manual
↓ Installation Guide
