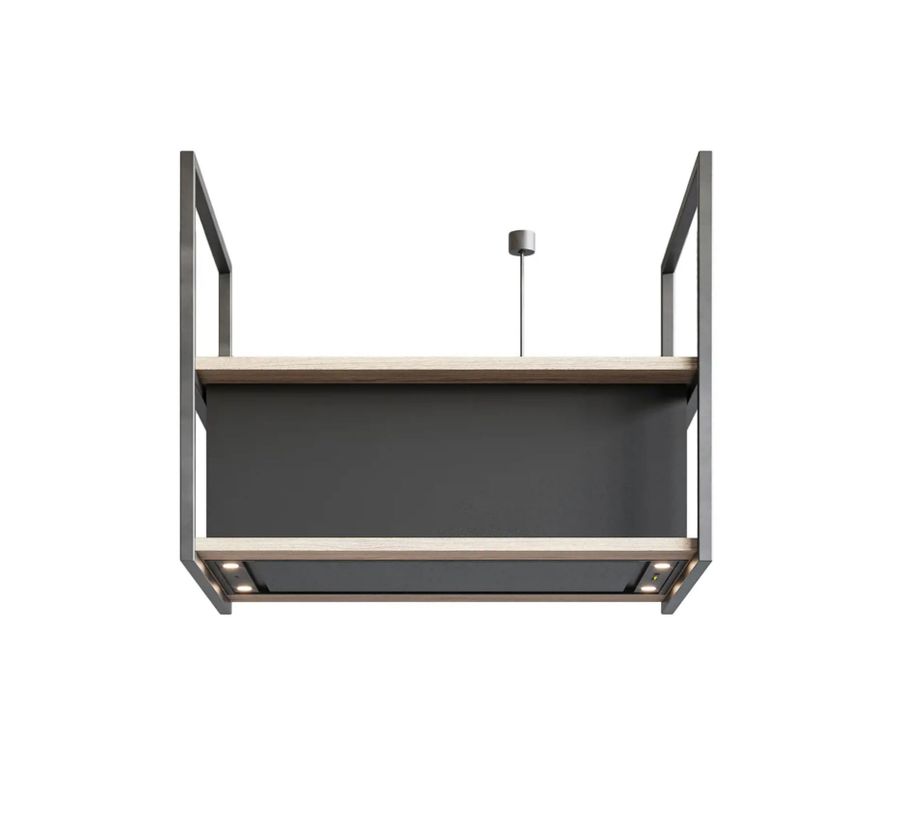

Novy Novy Island Mounted Pureline Frame 15002

NOVY ISLAND MOUNTED PURELINE FRAME 15002

Novy Novy Island Mounted Pureline Frame 15002

NOVY ISLAND MOUNTED PURELINE FRAME 15002

Pureline Frame 120 cm Black

INFORMATION

BRAND

Novy

PRODUCT TYPE

Hood

CONTROL METHOD

- Push Buttons
- Remote Control

PRODUCTION

Made in Belgium

NUMBER OF SPEEDS

3 + power

AIRFLOW

- Airflow duct out speed 1 (m³/h) : 252
- Airflow duct out speed 2 (m³/h) : 379
- Airflow duct out speed 3 (m³/h) : 445
- Airflow duct out max powerspeed (m³/h) (Qboost) : 508

PRODUCT NO.

15003

EAN

5414425230648

INTOUCH FUNCTION

Standard

Novy Novy Island Mounted Pureline Frame 15002

AUTO STOP

Yes

DELAYED SWITCH OFF (MINUTES)

30

RECIRCULATION

- Standard
- Monoblock

MOTOR

Integrated

SOUND ABSORBER

Integrated

Novy Novy Island Mounted Pureline Frame 15002

NUMBER OF GREASE FILTERS

2

GREASE FILTER

6830020

GREASE FILTER CLEANING INDICATION

Yes

LIGHTING

-Soft-on/off : No
-Functional Lighting Type : LED
-Number of functional lights : 4
-Functional Light Dimmable : Yes
-Color Functional Light (K) : 2700/4000
-Total Energy Consumption Functional Light (W) : 8

DIMENSIONS

- Diameter Outlet  : Not Applicable
- Advised mounting height gas hobs (Hmin-Hmax) : 650 - 850 mm
- Advised mounting height ceramic hobs (Hmin-Hmax) : 650 - 850 mm
- Advised mounting height induction hobs (Hmin-Hmax) : 650 - 850 mm
- Product dimensions recirculation (WxDxHmin-Hmax) : 1172 x 556 x 700 - 700 mm

NOVY CONNECT

Not Applicable

POSITION EXHAUST

Top

VOLTAGE APPLIANCE (V)

220-240

MAXIMUM POWER (W)

117

FREQUENCY (HZ)

50-60

NET WEIGHT

55 kg

Novy Novy Island Mounted Pureline Frame 15002

NOISE LEVEL

- Sound Pressure Duct Out Speed 1 (Db(A)) : 35
- Sound Pressure Duct Out Speed 2 (Db(A)) : 43
- Sound Pressure Duct Out Speed 3 (Db(A)) : 46
- Sound Pressure Duct Out At Max Powerspeed (Db(A)) : 49

LENGTH POWER SUPPLY CABLE (M)

1.8 m

AUTOMATIC POWER REVERT (MINUTES)

6

RECIRCULATION FILTER CLEANING INDICATION

Yes

GREASE FILTER CLEANING INDICATION

Yes

FEATURES

- Model with 3 Frames and 70cm Heigh
- Carbon filter with a lifespan up to 900 cooking hours.
- Integrated recirculation solution for optimal energy efficiency.
- Dimmable LED lighting warm white (2,700 K), adaptable to neutral white (4,000 K).
- Width and layout adjustable to individual needs thanks to to its modular structure.
- Panelling material NOT included but to be provided by your professional kitchen builder.

FEATURES

INTOUCH

InTouch offers the option to control your Novy cooker hood from your Novy induction hob.

CLICK-AND-FIX

Simple assembly with a click system so the Pure’line clicks into the lowered ceiling, leaving only four locking screws to be tightened.

Novy Novy Island Mounted Pureline Frame 15002

REMOTE CONTROL

Remote control: Cooker hoods with this icon comes with a remote control, other cooker hoods can also be fitted with them, by ordering an extra kit.

Novy Novy Island Mounted Pureline Frame 15002

INSTALLATION HEIGHT 85CM

The installation height is the distance between the hob and the cooker hood. The installation height is very important for optimal functioning of the cooker hood. Maximum installation heights are
indicated for each model.

Novy Novy Island Mounted Pureline Frame 15002

PERIPHERAL EXTRACTION

By placing a bottom plate at the bottom of the cooker hood, extraction is concentrated at the edges. In this narrowed opening there is also an acceleration in the extraction rate. The smaller the area, the faster the air moves. This acceleration improves the efficiency of the extraction system.

Novy Novy Island Mounted Pureline Frame 15002

RECIRCULATION

In a lot of homes, a cooker hood with an external air outlet is not possible or not allowed for architectural or economical reasons. A recirculation cooker hood is one that returns filtered cooking fumes back into the space. Particles of grease are filtered out of the cooking fumes by the grease filter and odours are absorbed by the carbon filter with active carbon (monoblock filter). The cooker hood does not take away the moist air, but it can be removed from the space by means of the ventilation system. Most Novy cooker hoods can be equipped with an extra accessory for recirculation.
