Samsung AR9500T Wall Mount Ac With Wind Free
AR9500T WALL MOUNT AC WITH WIND FREE
AR9500T WALL MOUNT AC WITH WIND FREE
Powerful Cooling, Ultimate Comfort
Powerful Wind free™ Cooling is designed to cool you down fast. When the desired temperature is reached, our innovative Wind free™ Technology helps maintain the cool air quietly to give you the ultimate comfort by dispersing air through the thousands of micro-holes.
FEATURES
SMART AI REMEMBERS YOUR PREFERRED SETTINGS
AI Auto Cooling
AI Auto Cooling* is designed to automatically optimise the various modes by analysing room conditions and usage patterns.** Based on your preferred temperature, it can automatically switch to the most appropriate mode to maintain desirable conditions.
STAY COOL AND DRY
Dehumidification Mode
Perfect for those hot, humid times when everything is sticky and unbearable, simply put the air conditioning unit in Dehumidification Mode to reduce moisture in the air, and circulate dry air throughout the room.
REST ASSURED WITH SAMSUNG QUALITY
5 Year Parts and Labour Warranty
Samsung wall mounted splits are supported by 5 year parts and labour warranty for residential applications.*
USE 20% LESS ENERGY*
SmartThings AI Energy Mode
Monitor and reduce the air conditioners energy use. AI Energy mode lets you check the power use and allows you to estimate your electricity bill. By learning your usage patterns and analysing the room conditions, AI Energy mode can reduce energy use by up to 20% by adjusting the temperature and compressor frequency.
WHISPER QUIET
WindFree™ Good Sleep
The WindFree™ Good Sleep mode can help you to create the ideal sanctuary for sleeping – without an unpleasant cold air flow. Its temperature control with WindFree™ Cooling can help you to set the environment for a deep, comfortable sleep to wake up feeling fully refreshed.
INTELLIGENTLY CONNECT AND CONTROL ANYTIME, ANYWHERE

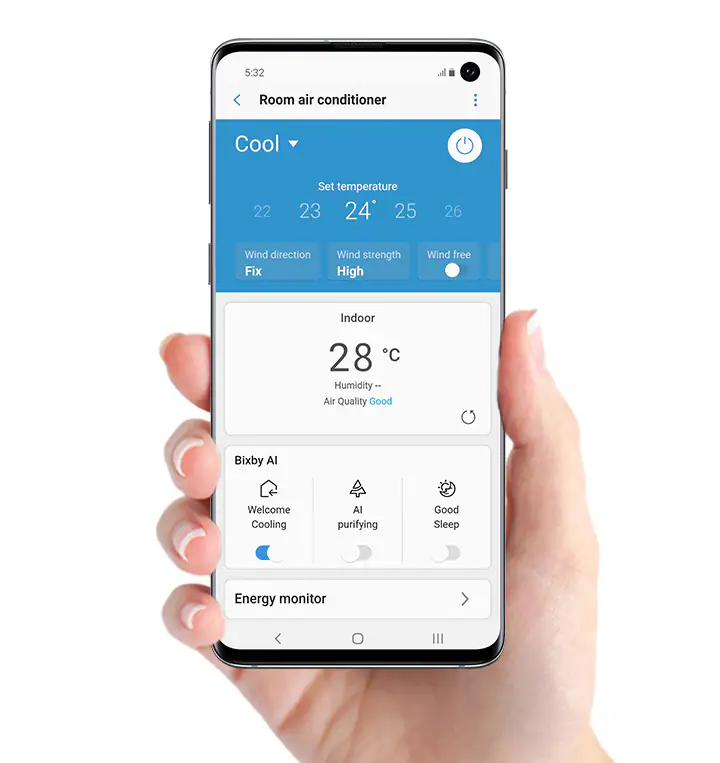

In-built Wi-Fi with SmartThings
Control your home air conditioner from anywhere, at anytime using the Samsung SmartThings App. You can control and monitor the air conditioner remotely with just a touch.*
INFORMATION
BRAND
Samsung
PRODUCT TYPE
Air Conditioner
COLLECTION
Ar9500t
PRODUCTION
Made in India
CAPACITY (COOLING)
8.00 kW
CAPACITY (HEATING)
9.00 kW
CAPACITY (COOLING, MIN - MAX), KW
2.5 ~ 9.3 kW
CAPACITY (HEATING, MIN - MAX), KW
2.4 ~ 13.0 kW
NET UNIT WEIGHT (INDOOR)
12.4 kg
NET UNIT WEIGHT (OUTDOOR)
67.8 kg
NOISE LEVEL
- Sound Pressure Level (Outdoor) : 57 dBA
- Sound Pressure Level (Indoor, High / Low) : 47 / 30 dBA
OPERATING MODE
- Auto Mode : Yes
- Good Sleep : Yes
- Quiet Mode : Yes
- Dehumidification : Yes
- Fast Cool : Yes
- Eco Mode : Yes
- Fan Mode : Yes
NET DIMENSION (INDOOR, WXHXD)
1055*299*215 mm
NET DIMENSION (OUTDOOR, WXHXD)
940*998*330 mm
CONNECTION SIZE (LIQUID, OD) MM
6.35
CONNECTION SIZE (SUCTION) MM
15.88
AIR PURIFICATION
- PM 1.0 Filter : No
- Tri Care Filter : No
- Auto Clean (Self Cleaning) : Yes
- Easy Filter Plus (Anti-Bacteria) : Yes
CONVENIENCE
- SmartThings : Yes
- Smart Check : Yes
- Remote Controller : Yes
- Auto Restart : Yes
- Freeze Wash : Yes
- Smart Service : Yes
- Auto Changeover : Yes
- Motion Detect Sensor : No
- AI Auto Cooling : Yes
PIPING LENGTH ( MAX)
30 m
PIPING HEIGHT (MAX)
15 m
OPERATING TEMPERATURE RANGE (COOLING)
-10 ~ 46 ℃
OPERATING TEMPERATURE RANGE (HEATING)
-15 ~ 24 ℃
ENERGY EFFICIENCY
- TCSPF : 4.623 / 4.512 / 4.692
- HSPF : 4.774 / 3.762 / 3.176
- EER (Std, Cooling) : 3.27 W/W
- COP (Std, Heating) : 3.27 W/W
- COP (Heating, Btu/hW) : 11.17 Btu/hW
REFRIGERANT (TYPE)
R32
REFRIGERANT (CHARGING, KG)
2.00 kg
AIR FLOW
- WindFree Cooling : Yes
- Air Flow Speeds (Cool/Fan) : 5/4
- Air Direction Control (Up/Down) : Auto
- Air Direction Control (Left/Right) : Auto
ELECTRICAL DATA
- Current Input (Cooling) : 11.1 A
- Current Input (Heating) : 12.5 A
- Power Source (V/Hz/Ph) : 1 / 220~240 / 50
- Power Input (Cooling / Heating) : 2450 W
AIR PURIFICATION WITH TRI-CARE FILTERS
Tri-Care Filter
Keep the air hygienic and maintain the Heat Exchanger’s performance with a Tri-Care Filter. Its 3-layers include a high-density filter that extracts large dust particles, fibers and animal hairs. A Zeolite Coating Filter also captures fine dust, and eliminates certain viruses, bacteria and allergens.*
MODEL NAME
AR30BXECNWKNSA
REFRIGERANT (CHARGING, TCO2E)
1.35 tCO2e
PIPING HEIGHT (MAX, M)
Yes
COMPRESSOR TYPE
BLDC
DETAIL
DESIGNED TO COOL FASTER, WIDER & FARTHER
Fast Cooling
Cool rooms quickly from corner to corner, so you’re always comfortable. Digital Inverter Boost technology cools the air 43% faster*. Its advanced design also has a 15% larger fan, 18% wider inlet and a 31% wider blade. So cool air is dispersed farther and wider**, reaching up to 15 meters.
DIGITAL INVERTER BOOST
Reduces noise and energy use by 73%*
Save money every day with highly energy-efficient Digital Inverter Boost technology. It maintains the desired temperature with less fluctuation. It also has neodymium magnets and a Twin Tube Muffler, so it works efficiently, quietly and lasts much longer. And it reduces energy usage by up to 73%*.
PREVENT CORROSION FOR LASTING COOLING
DuraFin™ Plus
The outdoor unit heat exchanger is made of corrosion-resistant material to help protect the heat exchanger coil from rusting, helping to maintain the optimal performance of the Heat Exchanger. Its corrosion-resistance was tested using the Salt Spray Test (SST) for 480 hours*.
REDUCE POWER STRAIN ON THE ELECTRICITY NETWORK
Demand Response Enabled Device (D.R.E.D)
D.R.E.D allows certain energy providers to limit your power consumption during peak demand times to help reduce power strain on the electricity network. Participation may entitle you for rebates from your energy provider. Please contact your energy provider to find out if it recognises D.R.E.D. and for further details. All Samsung hiwall split systems enable D.R.E.D. with the option of DRM1, DRM2, and DRM3 levels.
THOUGHTFUL DESIGN
Smart operation
-R32 Refrigerant : Next generation environmental refrigerant
-MEPS Compliant : Meets government minimum energy performance standards
-D.R.E.D Demand Response Enabled Device : All Samsung Wall Mounted Split Systems enable D.R.E.D. with the option of DRM1, DRM2, and DRM3 levels.
KEEP FRESH
Auto Clean (3 Steps)
Keep the inside of your air conditioner hygienic by doing nothing! After it has been working, the Auto Clean function automatically dries the Heat Exchanger using a 3-step process. It removes moisture by blowing air for between 10 to 30 minutes.
HYGIENIC SELF-CLEANING FILTER SYSTEM
Freeze Wash
Maintain the optimum performance with the push of a button. Freeze Wash quickly freezes the Heat Exchanger and then defrosts the ice. Finally, it dries up any moisture left. And it alerts you when it is time for a clean*.
NEXT GENERATION ENVIRONMENTAL REFRIGERANT
R32 Refrigerant
Refrigerants are an essential part of air conditioning and it is important to choose a refrigerant that has a low environmental impact. Samsung has added the new R32 refrigerant to its air conditioning range to minimise the effect on the ozone layer*.
MEETS GOVERNMENT MINIMUM ENERGY PERFORMANCE STANDARDS
MEPS Compliant
Air Conditioners sold in Australia are required to meet Minimum Energy Performance Standards (MEPS) set by the Government.
